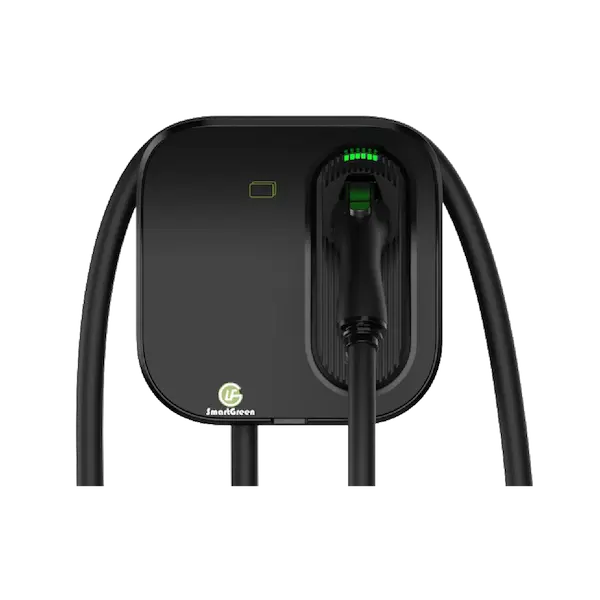

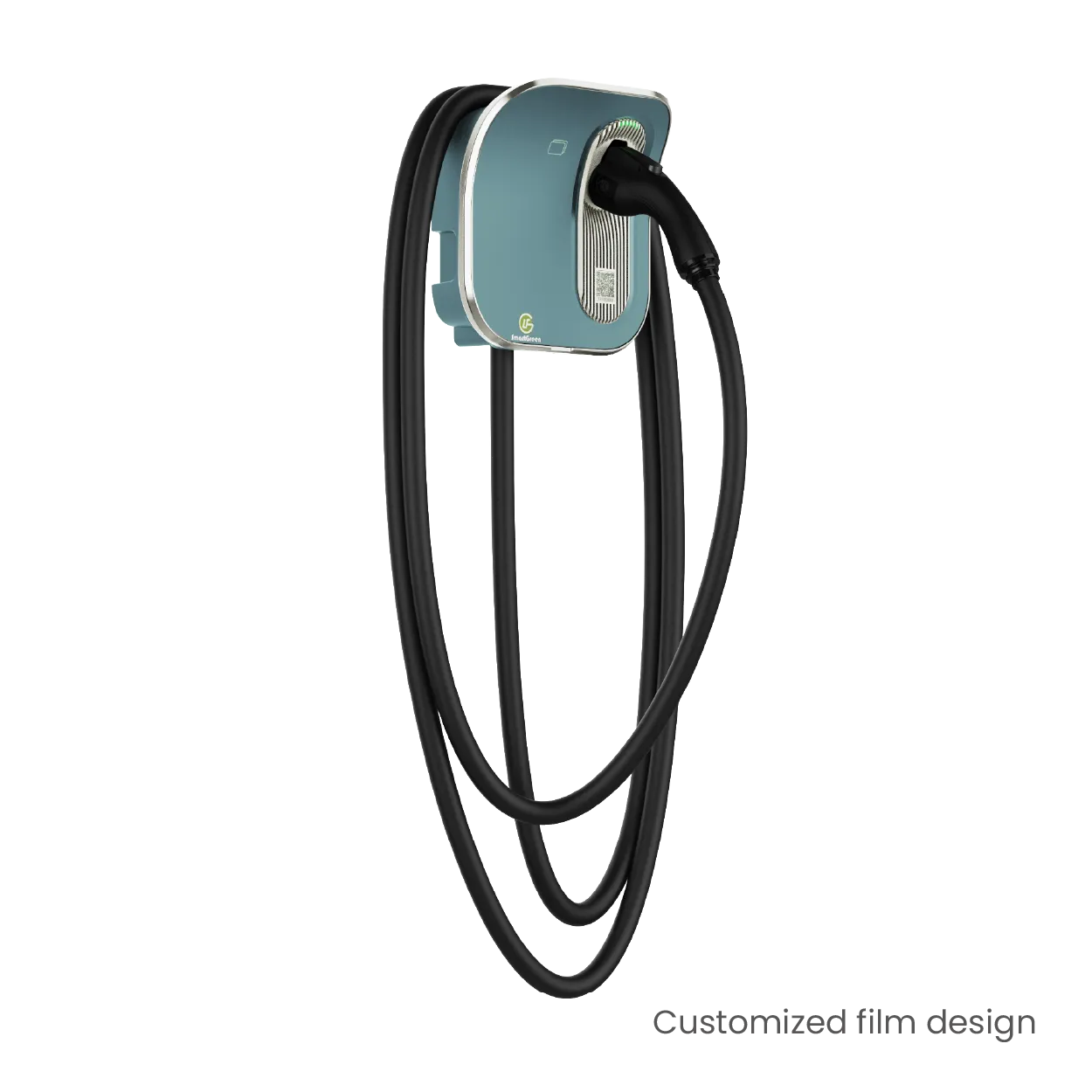

AC Charger
SAT 7.6 - Type1
Canada(CA)
- Model: CAC-000701-C00 | CA
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 5kg (body)
- Charging plug: TYPE1 (single), with 5m cable length
Input
- Input Connection: L1+L2+PE
- Input Voltage: 208Vac±15% or 240Vac±15%, 50/60Hz for single-phase
- Input Current: 32A Max
Output
- Output Power: 7.6kW
- Output Voltage: 208Vac±15% or 240Vac±15%, 50/60Hz for single-phase
- Output Current: 32A Max
Interface
- Display: LED indicator
- User Authentication: RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: NEMA TYPE4/IK10 (screen IK08)
- Cooling: Natural Convection
Compliance
- Certification: FCC, Energy Star
- Safety: UL2594, UL2231-1, UL2231-2
- Security: UL991/UL1998
- EMC: FCC Part 15 Class B
Product Highlights
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
Support multiple electrical protection and comply with international verification to ensure user safety.
Compact and light design for tiny space and easy to install and maintain.
