Residential ESS
Switch - SHS 200-L
Taiwan(TW)
- Model: EHS-020000-T00 | TW

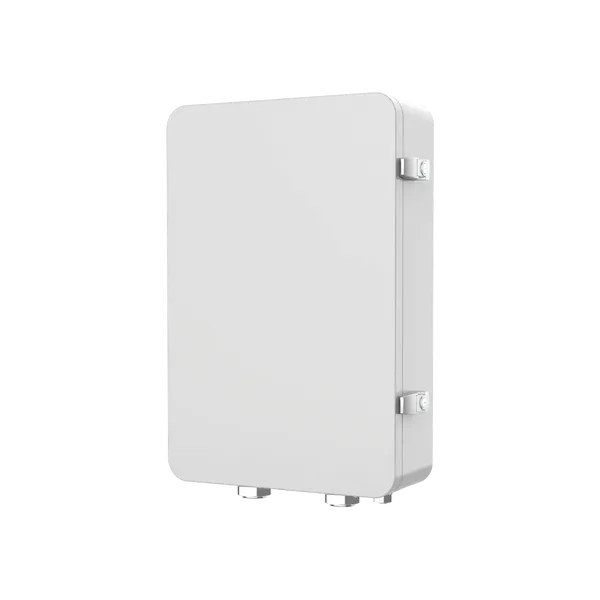

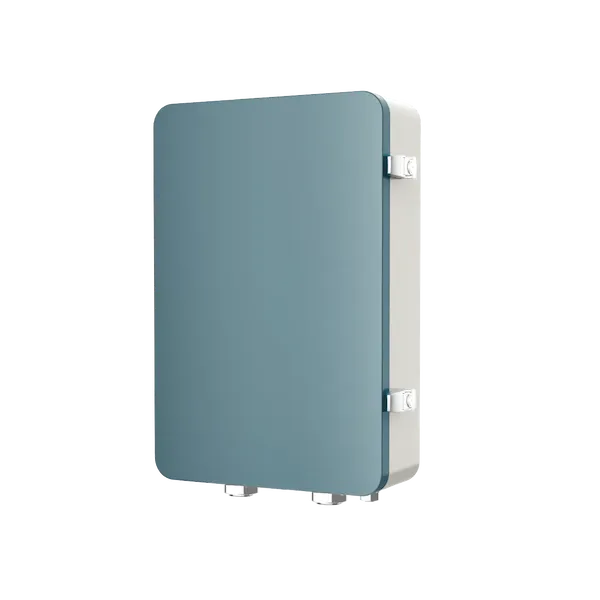

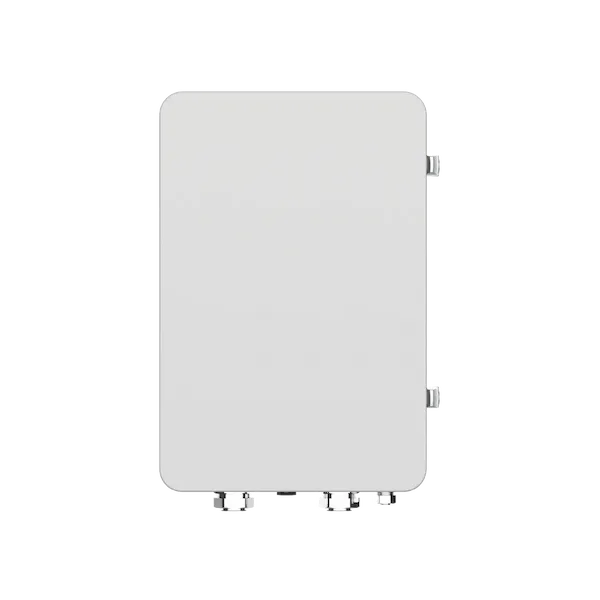

Appearance
- Dimension(WxHxD): 399 x 599 x 150 mm
- Weight: about 11kg

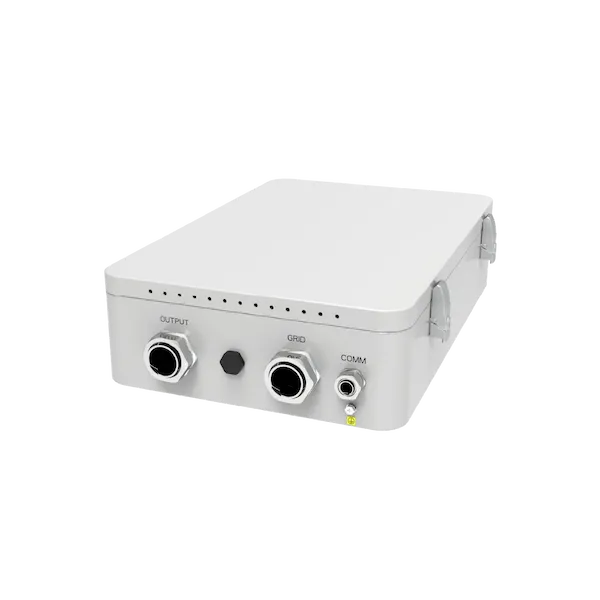

Grid port
- Input Connection: L1+L2+N+PE, split-phase
- Input Voltage: 110/220Vac, 60Hz
- Input Current: 200A Max
- On/Off-Grid switching: Supported or Auto-switching
AC port
- Rated Voltage: 110/220Vac, 60Hz
- On-grid Current: 200A Max.
- Off-grid Current: 32A Max. (limited by inverter)
Interface
- Communication: RS485
- Compatible: SHP-8-L inverter
Mechanical
- Protection: IP14
- Cooling: Natural Convection
- Installation: Wall-mounting
Compliance
- Safety: IEC 62109-1
- EMC: IEC 61000-6-1/-3
Product Highlights
Support APP control and easy to operate, monitor the status and save time to check and maintain the device.
Automatic switching from on-grid to off-grid when high-price period for saving electricity bills or switching to backup power while power stopping.
High current capacities for surge current and short current and support remotely operate the breaker without safety risk.
