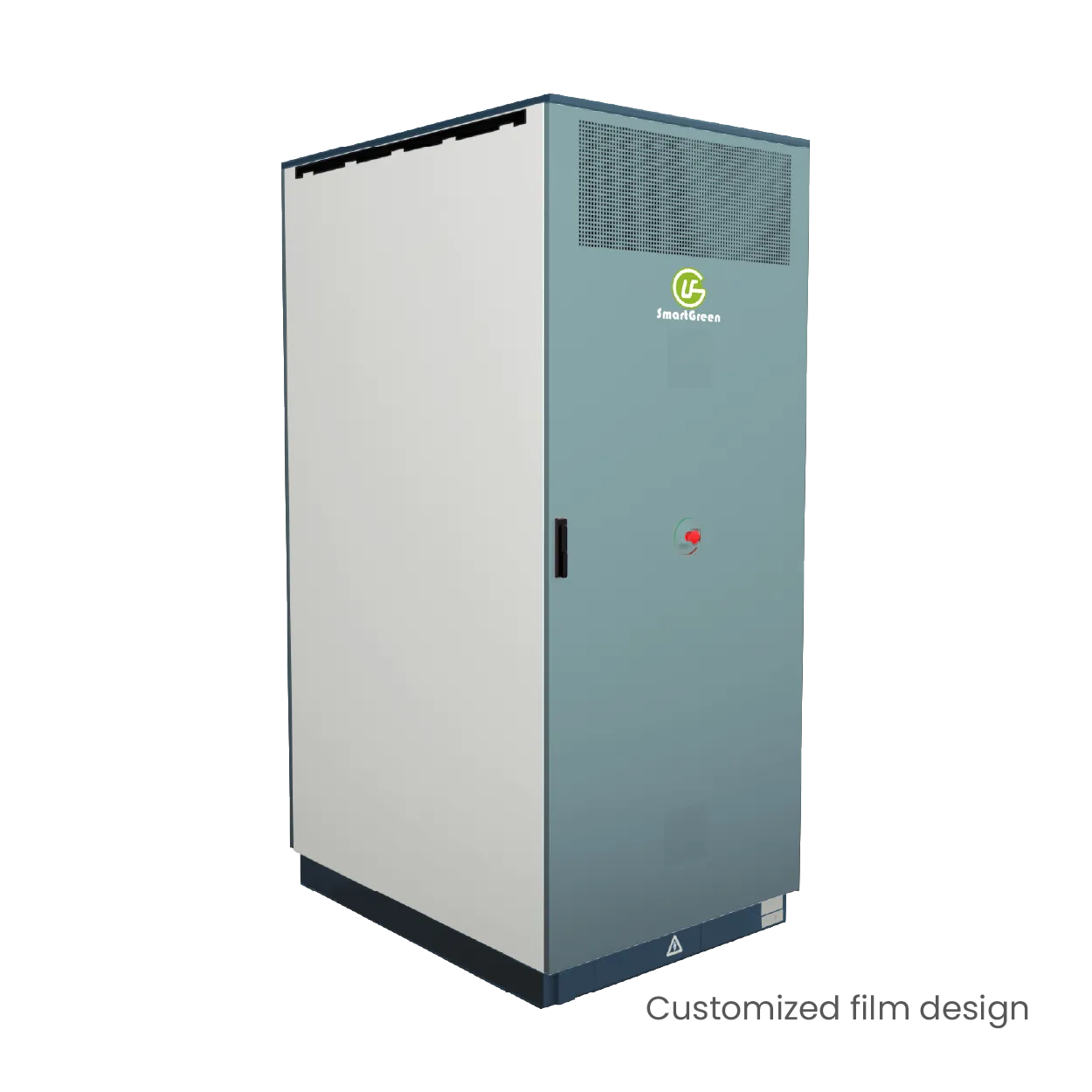

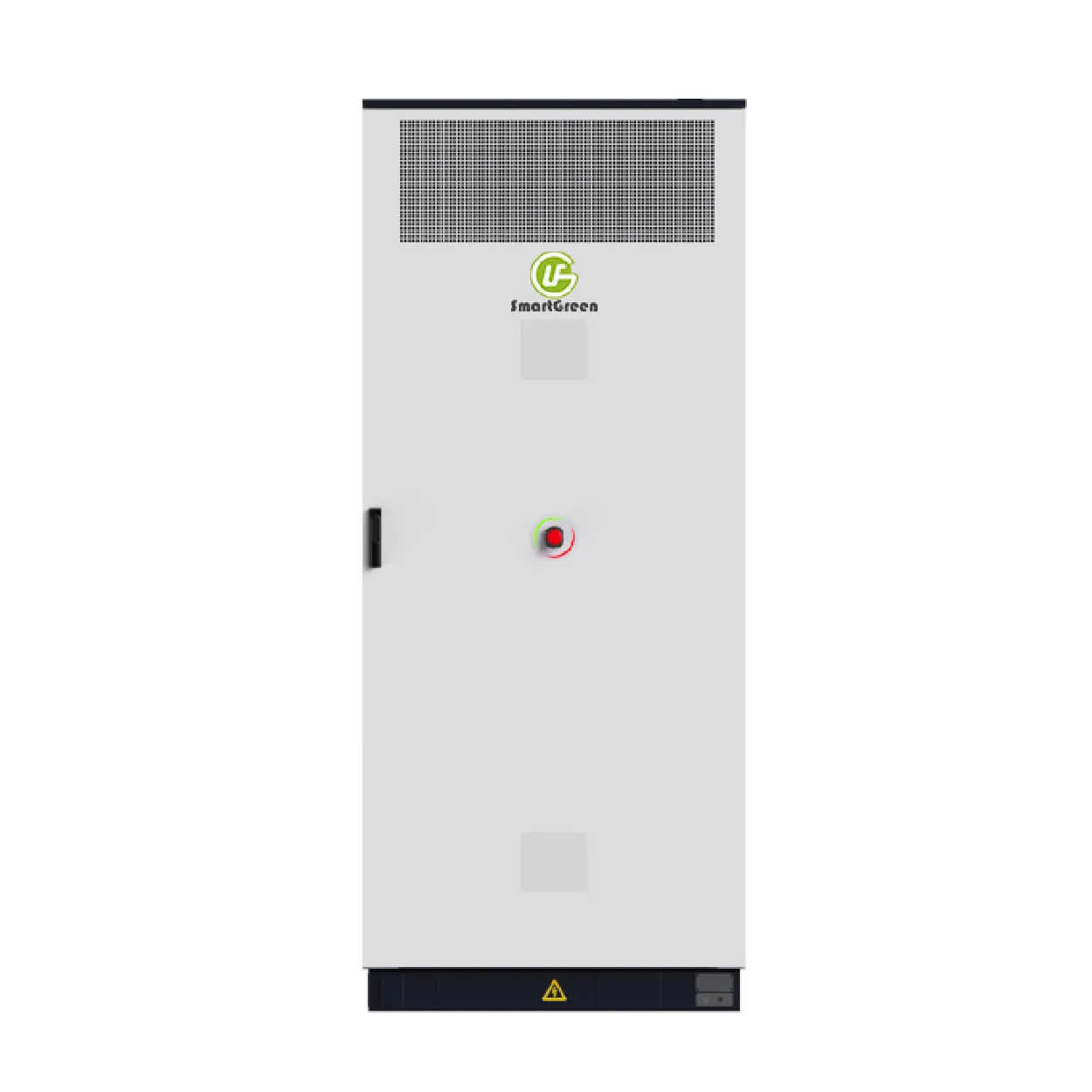

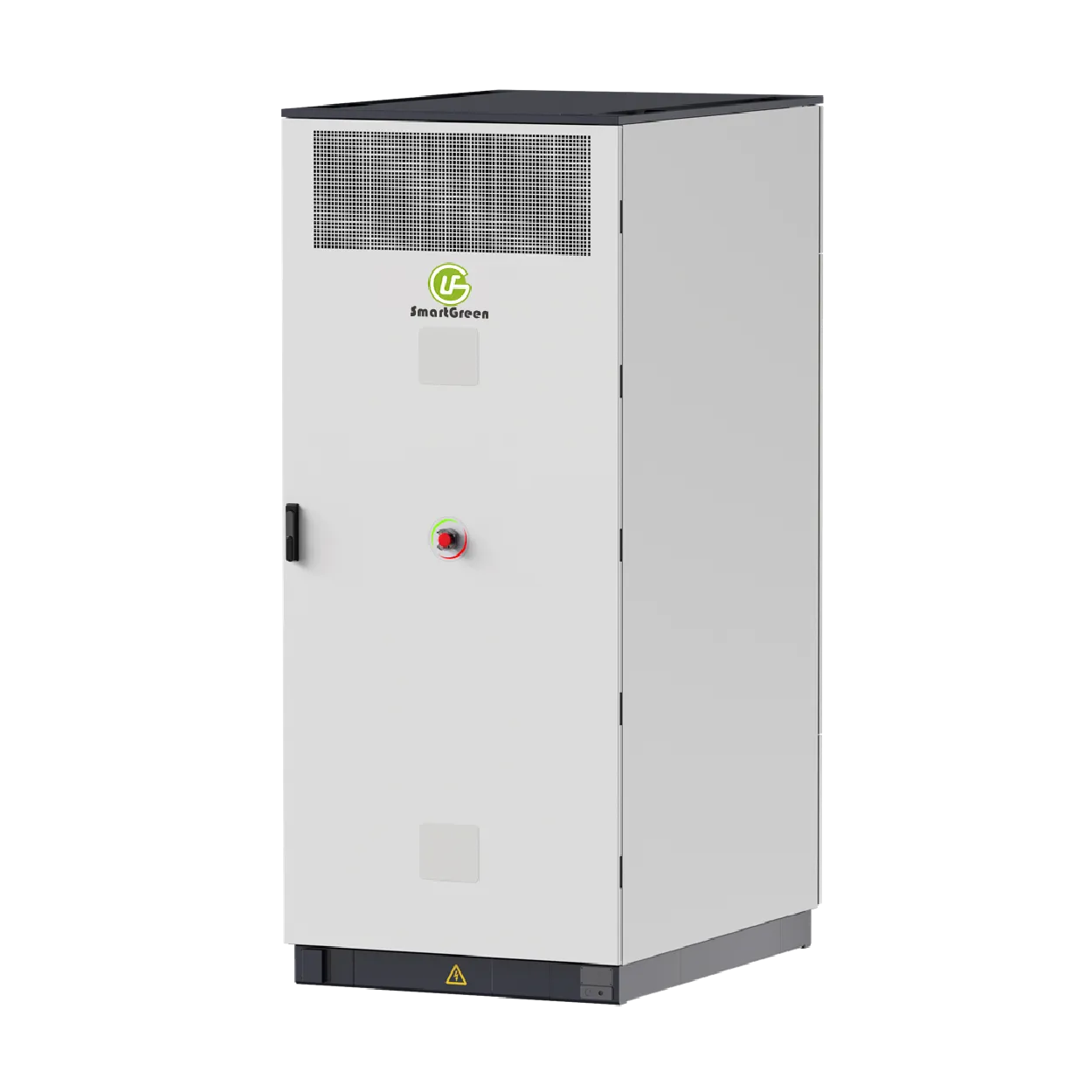

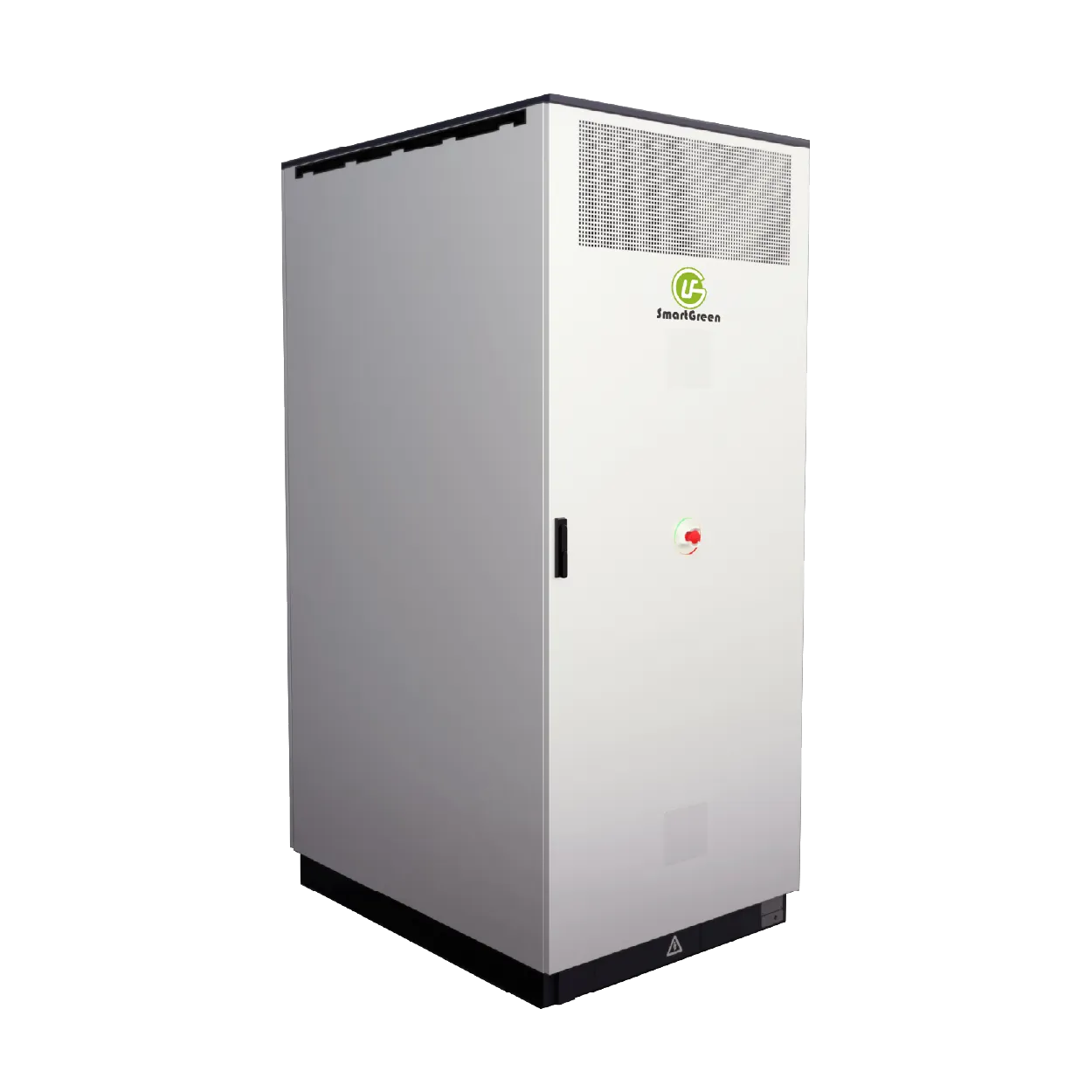

Commercial ESS
Battery
Europe(EU), Taiwan(TW), Canada(CA)
Appearance
- Dimensions(WxHxD): 1030 x 2450 x 1400 mm
- Weight: < 2700kg
Battery Module
- Cell type: 314 Ah / LFP
- Nominal battery energy: 261 kWh
- Battery voltage range:728~936 Vdc
- Rated Charge/Discharge Rate: ≤0.5 P
Interior PCS
- Rated output power: 125 kW
- Rated grid voltage range / frequency: 340~440 Vac, 50/60Hz ±5 Hz
Interface
- Communication Interface: RS485, Ethernet, DIO
Mechanical
- Protection: IP55
- Cooling:Fully liquid cooling (PCS + Battery)
Product Highlights
Safety Protection: Features 3S active intervention, cabinet-linked ventilation, explosion-proof pressure relief, and cloud-based early warning for multi-layer protection, meeting IP55 dust and water resistance standards.
Smart Management: Real-time optimization via the EMS system combined with cloud big-data analytics enables coordinated local-cloud intelligent management.
Stable Adaptability: Withstands 100% three-phase unbalanced loads in off-grid parallel mode; liquid cooling maintains full-load output even at 55°C, with operating noise as low as 60 dB.

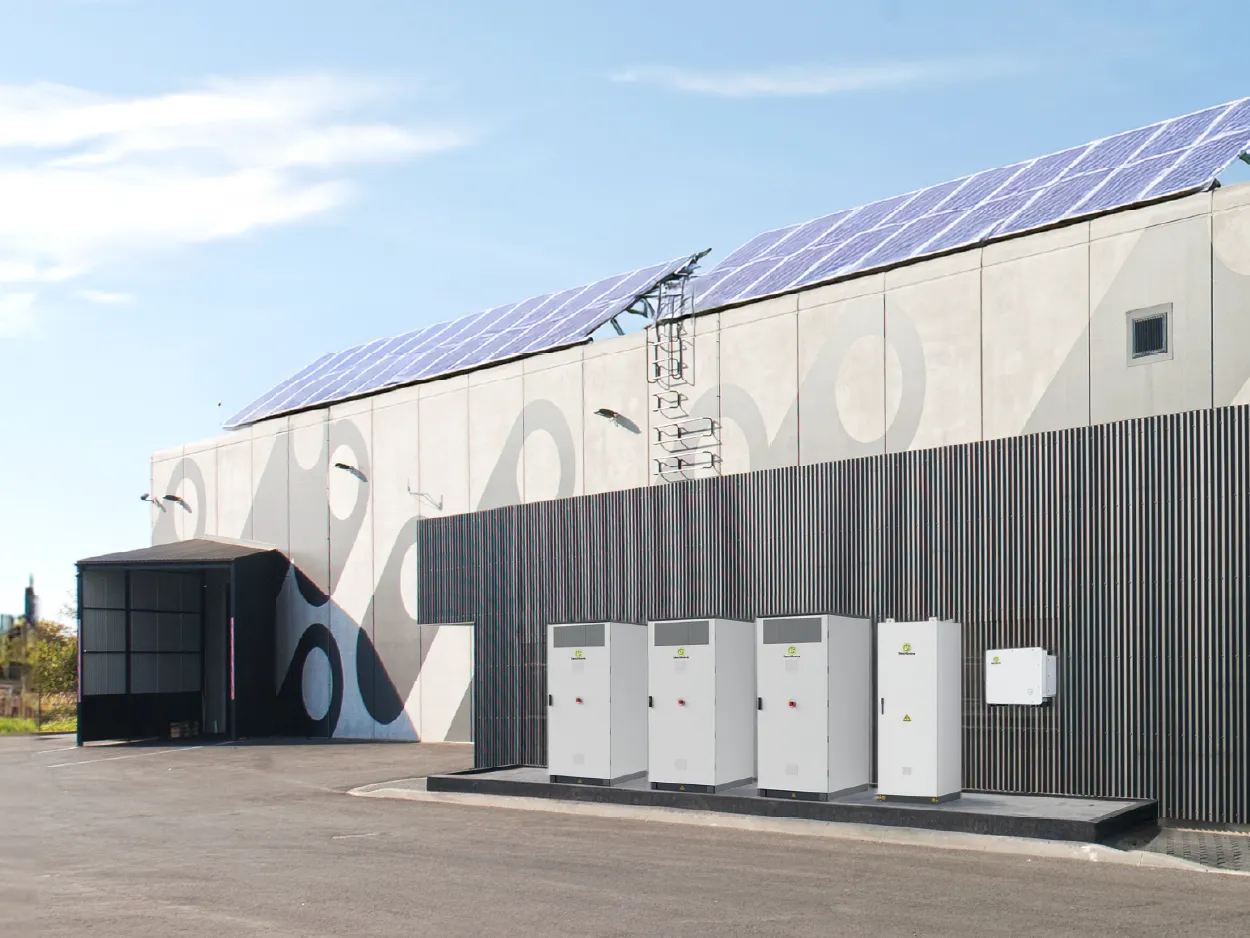

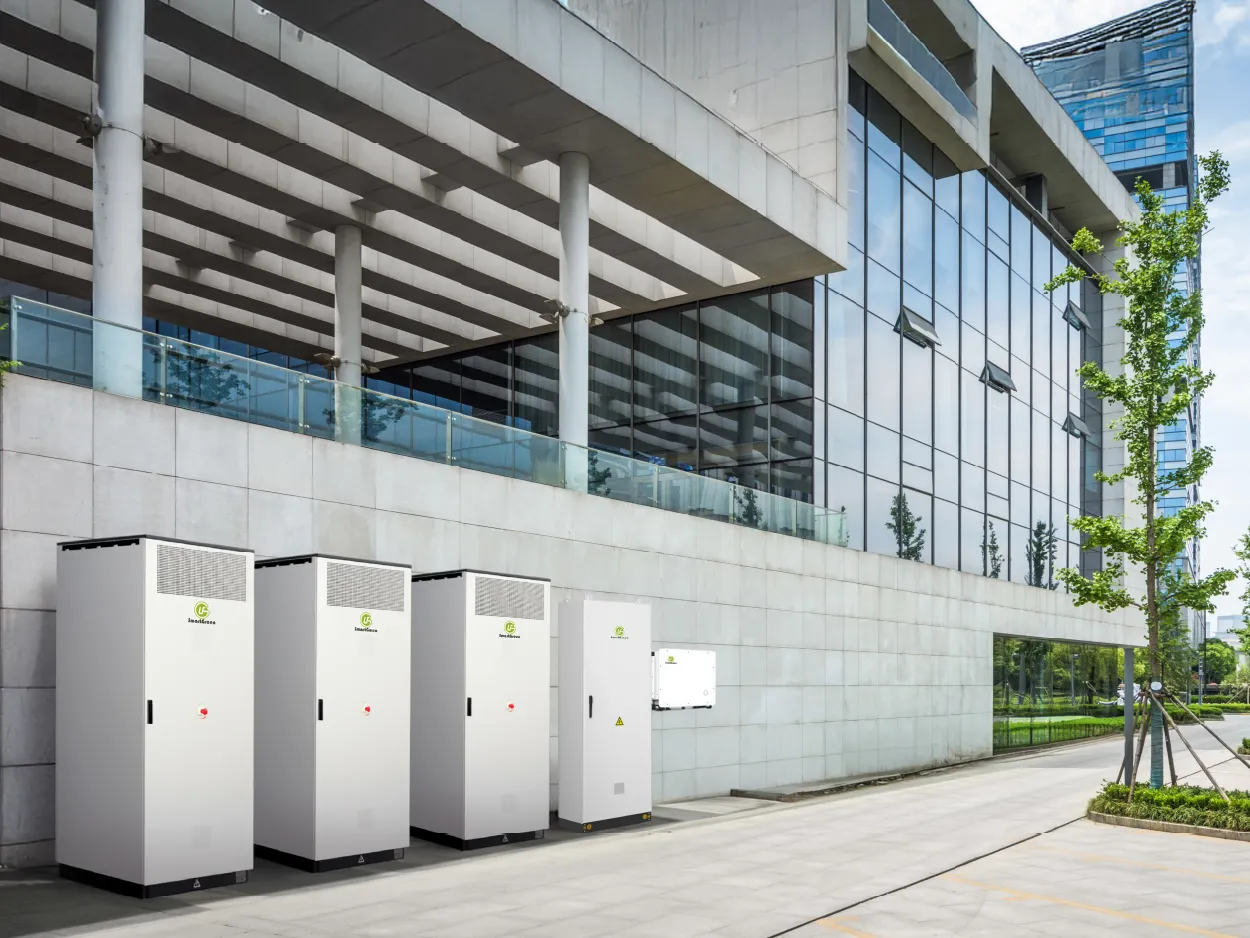

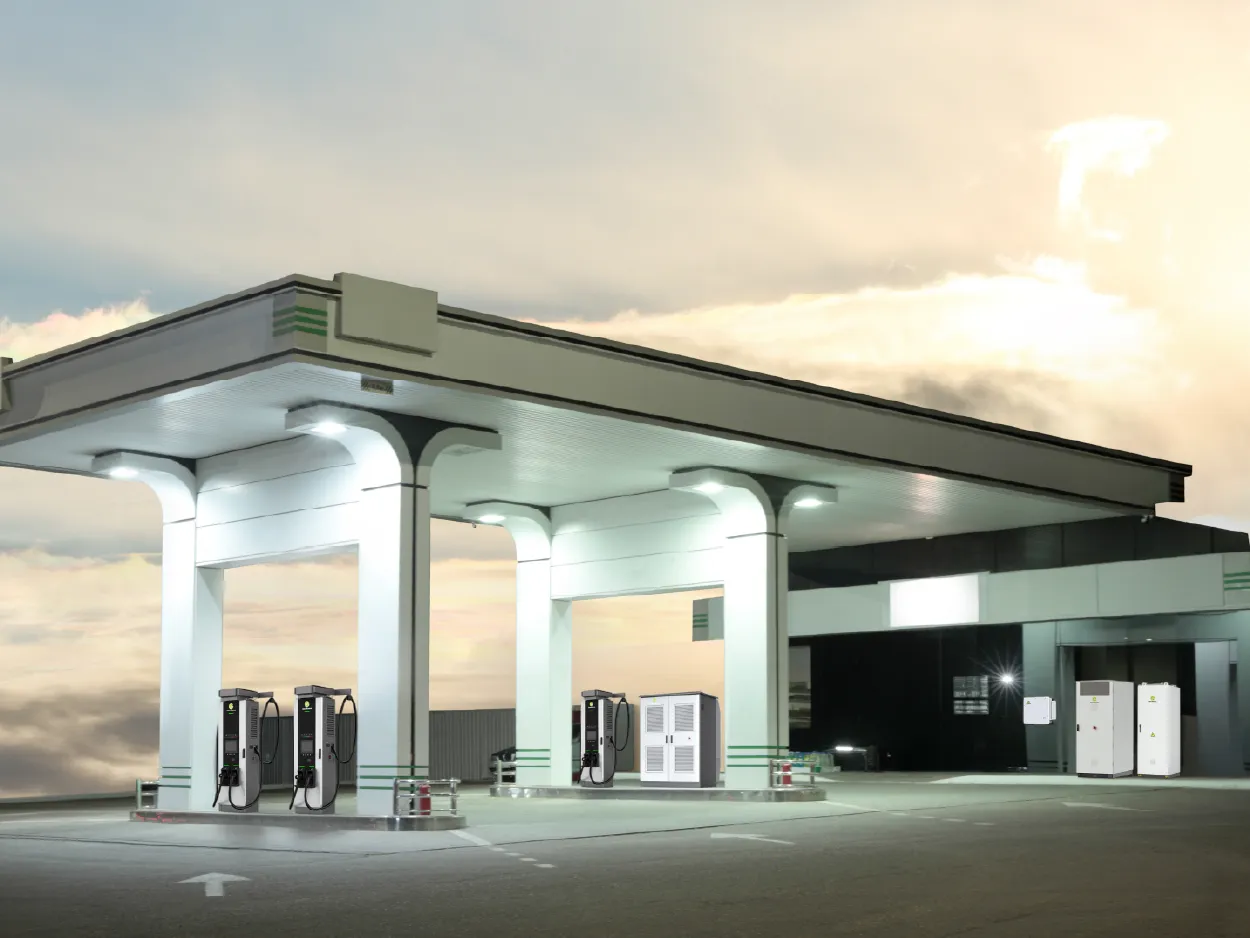

Applicable Locations
