DC Charger

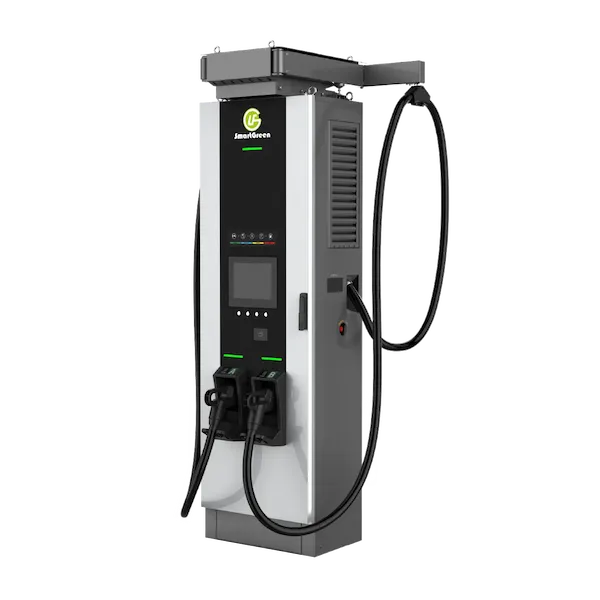

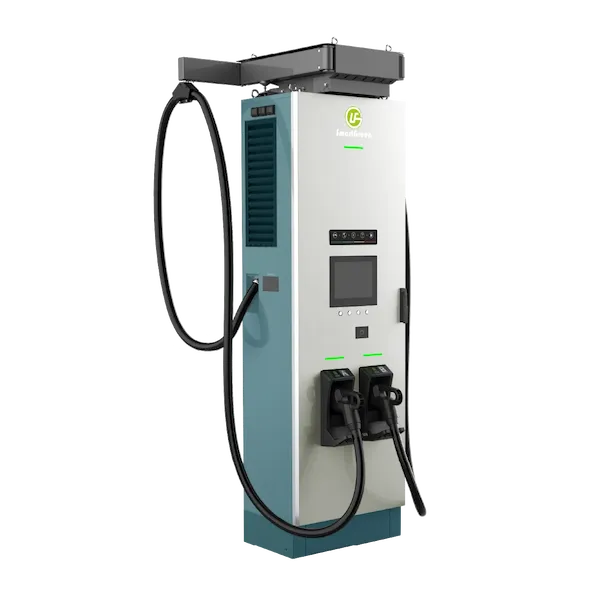

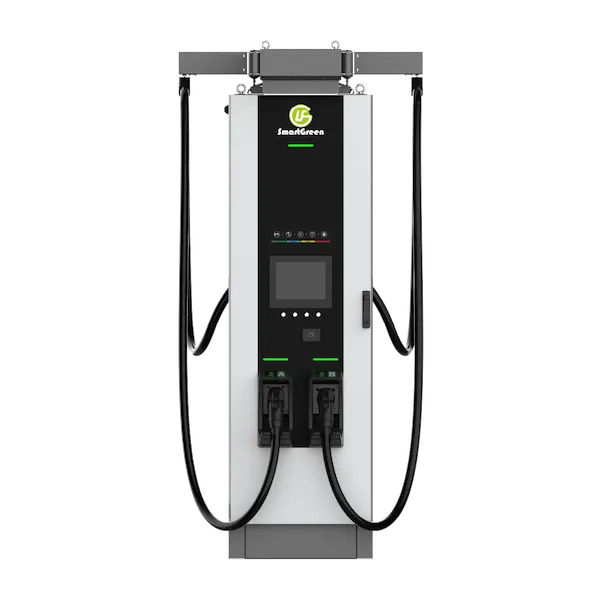

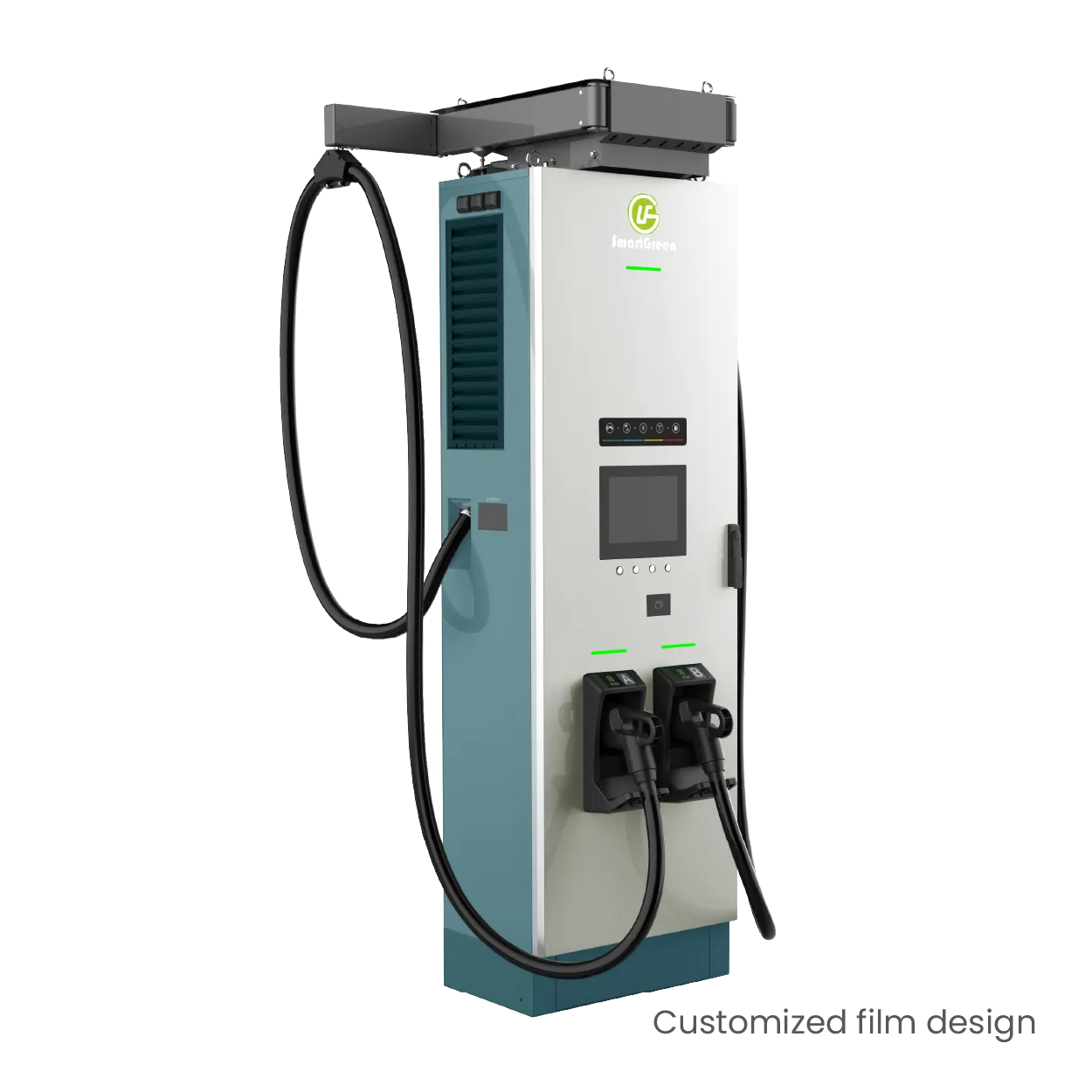

SNO 360 - Dispenser - CCS2+CCS2
Europe(EU)
- Model: CCT-036022-P00 | EU
Appearance
- Dimension(WxHxD): 1050 x 2200 x 707 mm (with cable management)
- Weight: about 244kg (with cable management)
- Cable interface: CCS2+CSS2 (2-plug), with 6m length cable
Input
- Main Input: Main power from cabinet
- Auxiliary Input: 230Vac±10%, 50/60Hz, single-phase
Output
- Output Power: 360kW Max
- Output Voltage: 150Vdc to 1000Vdc
- Output Current: 300A Max / plug (natural cooling)
Interface
- Display: LED indicator and 10.4-inch touch screen
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Ethernet
- Protocol: OCPP 1.6J / DIN 70121, ISO 15118
Mechanical
- Protection: IP55/IK10 (Screen IK08)
- Cooling: Forced air cooling
Compliance
- Certification: CE, CB, RED, NBTC, PTEC, PEA
- Safety: IEC 61851-1, IEC 61851-23/-24,IEC 62311
- EMC: IEC 61851-21-2, IEC 61000-6-2/-4
Product Highlights

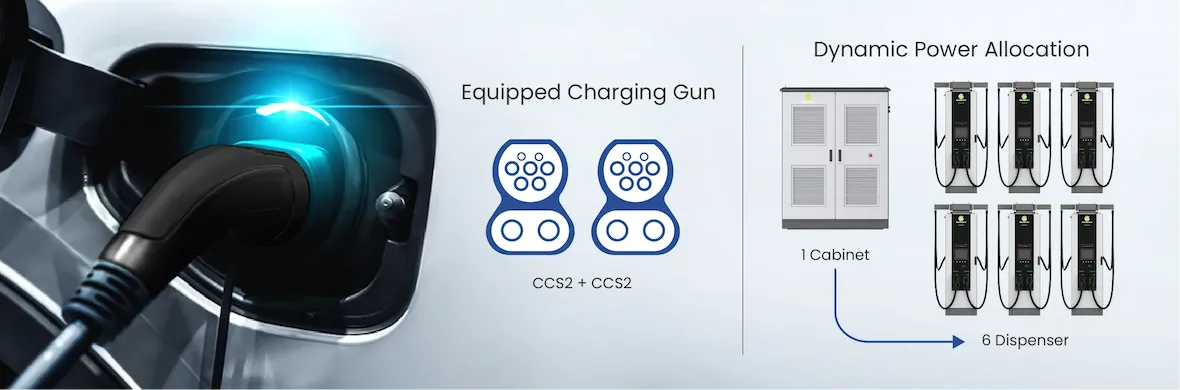

Support connect to any backend based on OCPP 1.6J protocol and remote control and dynamic power allocation.
User-friendly touch interface screen and cable management system for ADA Standards.
Support up to 360kW of power to charge for 12 cars under 6 terminals and wide output voltage range from 150 to 1000Vdc.

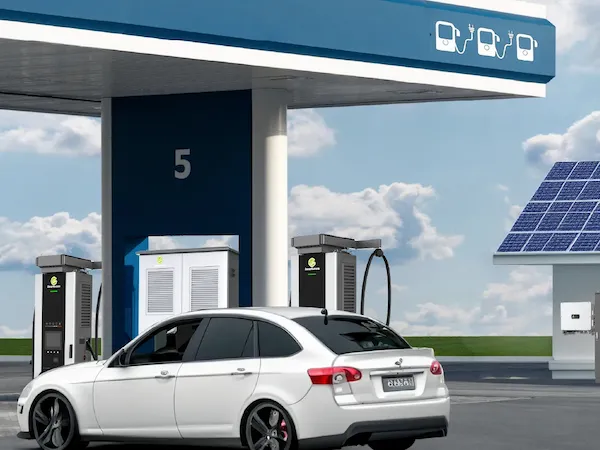

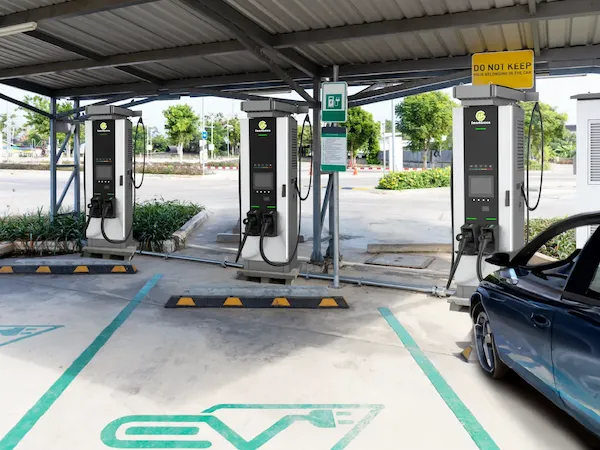

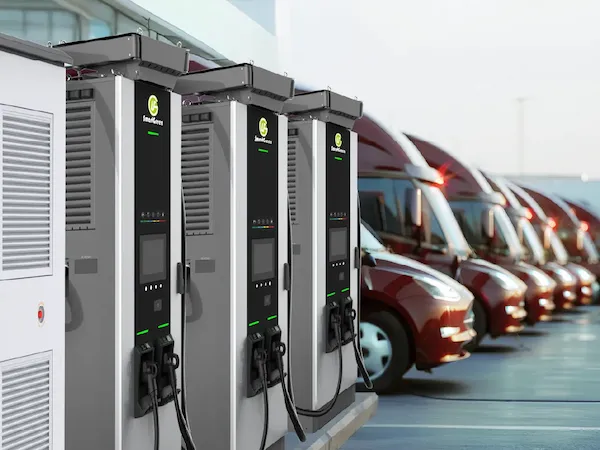

Applicable Locations
