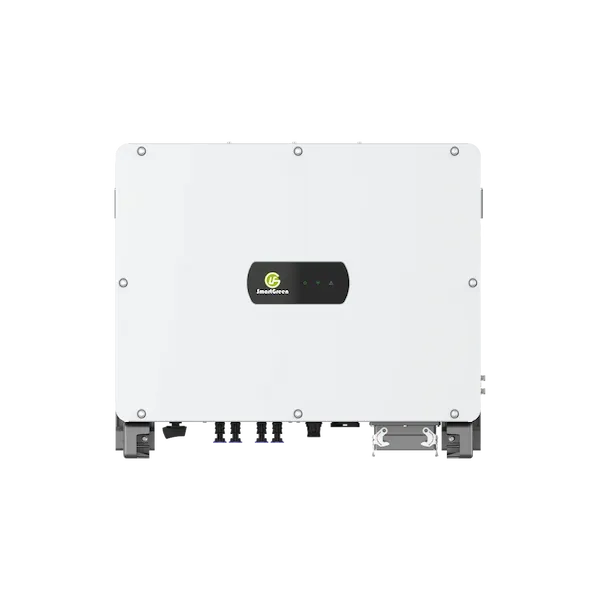

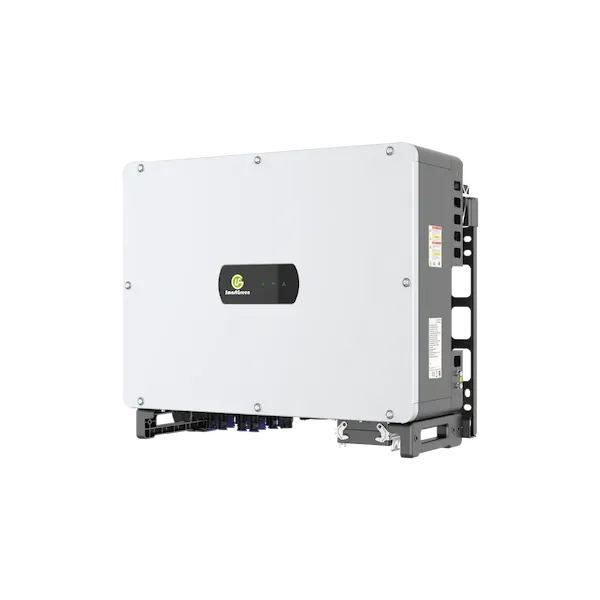

Solar / Hybrid Inverter
Solar INV - SSI 60
Taiwan(TW)
- Model: ESI-006000-T00 | TW
Appearance
- Dimension(WxHxD): 700 x 615 x 290 mm
- Weight: about 62.5kg
PV port
- Input Voltage: 1050Vdc Max.
- MPPT Working Voltage: 200Vdc to 900Vdc
- MPPT Working Current: 27A per loop Max.
- Peak Efficiency: 98.5%
- Number of PV input: 8 loops PV, including 4 loops MPPT
AC port
- Working Power: 60 kVA (On-grid)
- Working Voltage: 220Vac or 380Vac 50/60Hz
- Working Current: 87A Max.
- Connection: L1+L2+L3+N+PE, three-phase
Interface
- Communication: RS485, CAN
- Smart Contro: Supported Web Backend
Mechanical
- Protection: IP65
- Cooling: Forced Air
- Installation: Wall-mounting
Compliance
- Safety: IEC 62109-1/-2, CNS 15426-1/-2
- EMC: IEC 61000-6-2/-4, IEC 62920
Product Highlights

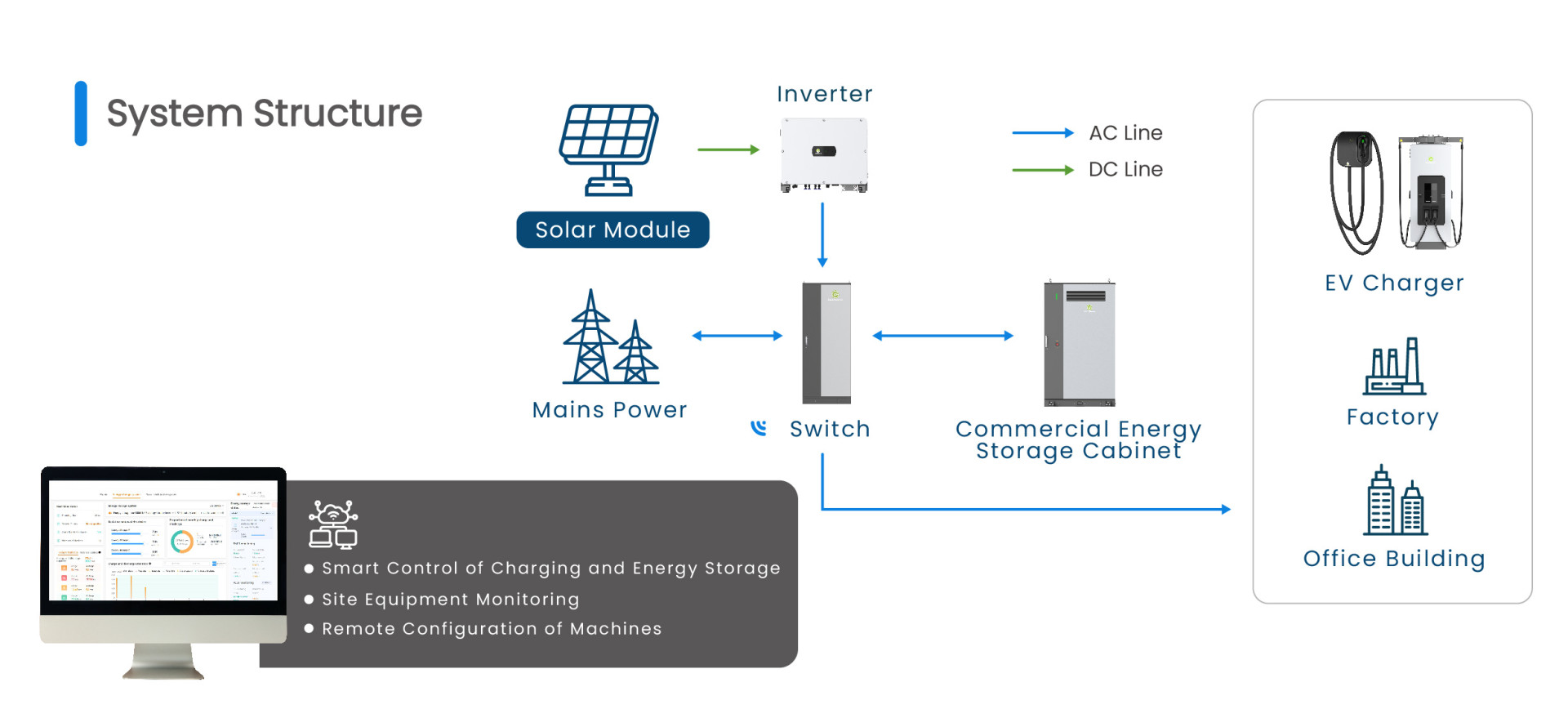

Support remote monitor by connected to meter and ESS controller and easy to know how much power saving from green power.
High input capacity for solar panel with 8 channels with 4 channels support MPPT to enhance power generation in complicated scenarios.
Suitable for various installation environments for highly protected by an IP65 waterproof and tough aluminum alloy casting.

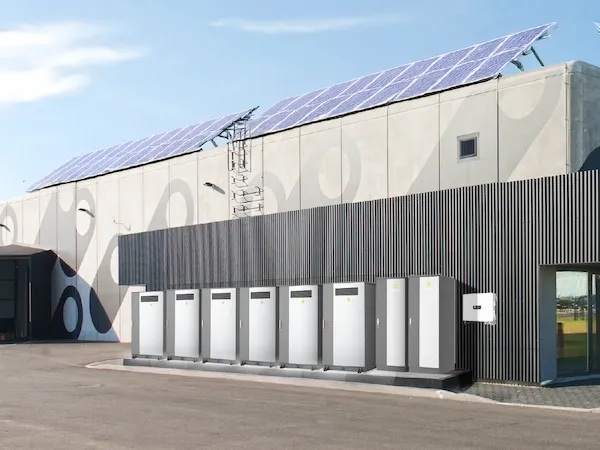

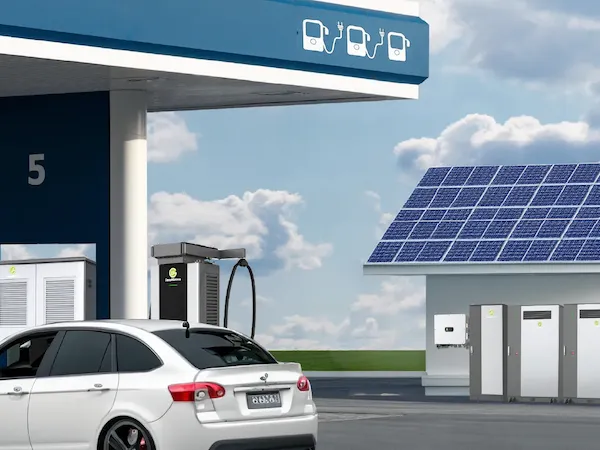

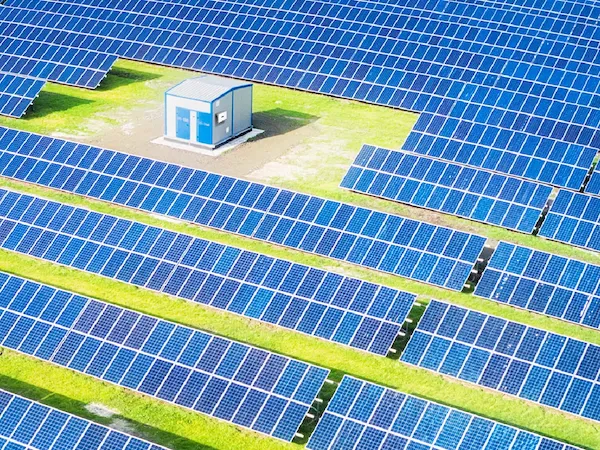

Applicable Locations
