Solar / Hybrid Inverter
Hybrid INV - SHP 14-T
Europe(EU)
- Model: EHP-00140T-P00 | EU

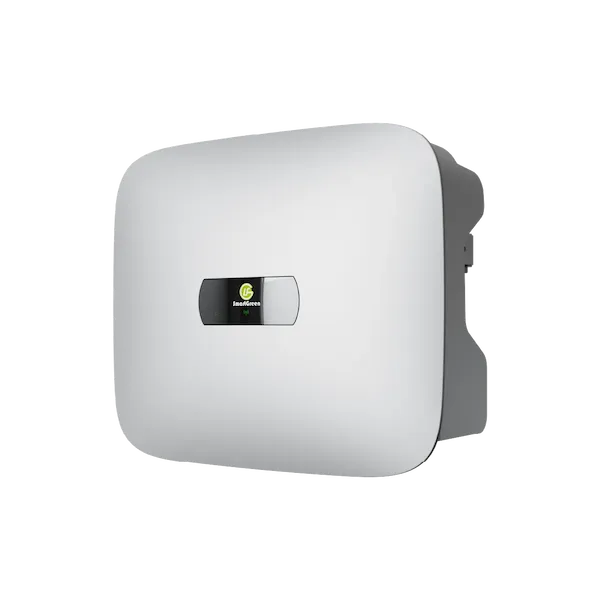

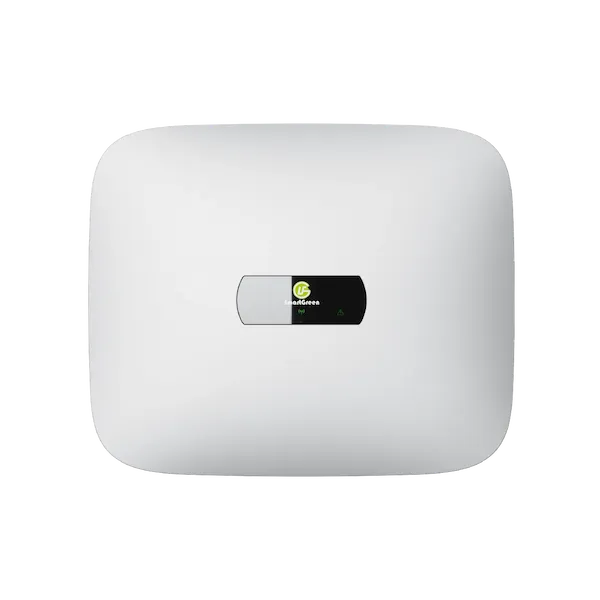

Appearance
- Dimension(WxHxD): 485 x 400 x 177 mm
- Weight: about 19kg

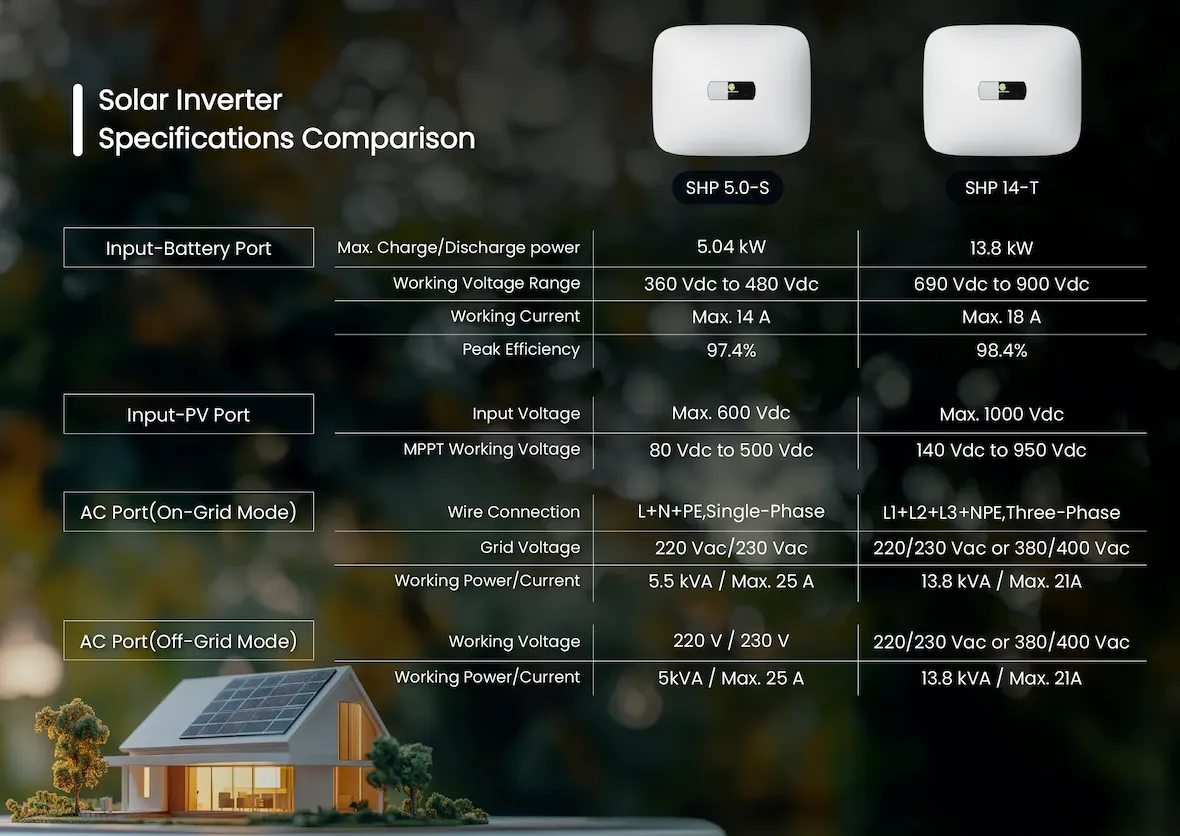

Battery port
- Max. Charge/Discharge Power: 13.8 kW
- Working Voltage: 690Vdc to 900Vdc
- Working Current: 18A Max.
- Peak Efficiency: 98.4%
- Battery Capacity: Support 7kWh to 20.7 kWh/ LFP
PV port
- Input Voltage: 1000Vdc Max.
- MPPT Working Voltage: 140Vdc to 950Vdc
- MPPT Working Current: 13.5A per loop Max.
- Number of MPPT: 2 loops
AC port
- Working Power: 13.8 kVA (On-grid) / 13.8 kVA (Off-grid)
- Working Voltage: 220/230Vac or 380/400Vac 45-65Hz
- Working Current: 21A Max.
- Connection: L1+L2+L3+N+PE, three-phase
Interface
- Communication: RS485, Wi-Fi+BT (dongle)
- Smart Control: Supported APP
Mechanical
- Protection: IP65
- Cooling: Natural Convection
- Installation: Wall-mounting
Compliance
- Safety: IEC 62109-1/-2
- EMC: EN IEC 61000-6-1/-3, IEC 62920
Product Highlights
Support APP remote monitor and control and record consumption of power from solar or grid for home or small commercial users.
Highly intelligent control to limit maximum using power from grid and adjust solar or battery power to home needs based on the schedule or setting for saving grid power and electricity bills.
Highly integrated with EMS and inverter for transferring power from solar or battery to grid power for daily or any time needs.

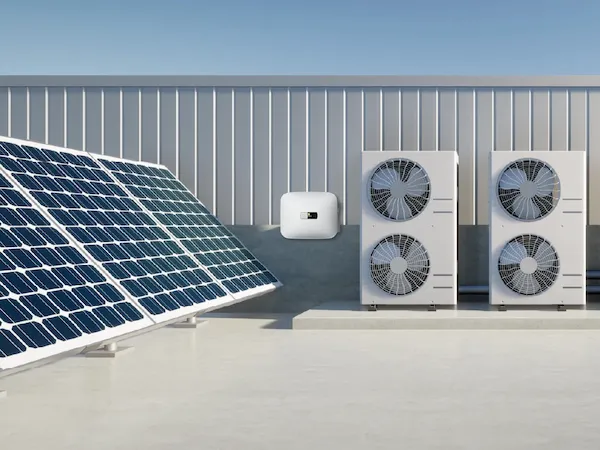

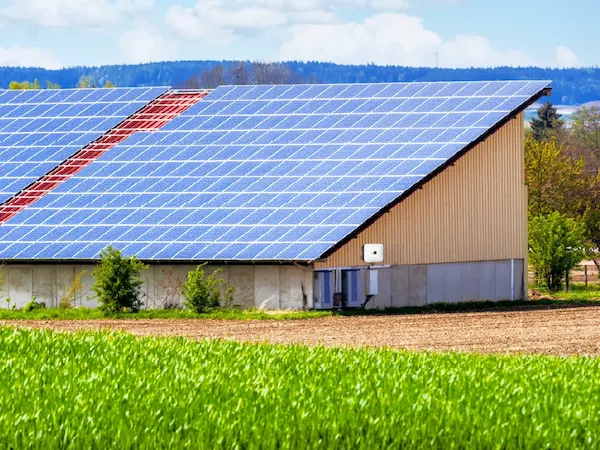

Applicable Locations
