Solar / Hybrid Inverter
Solar Inverter
Europe(EU), Taiwan(TW), Canada(CA)

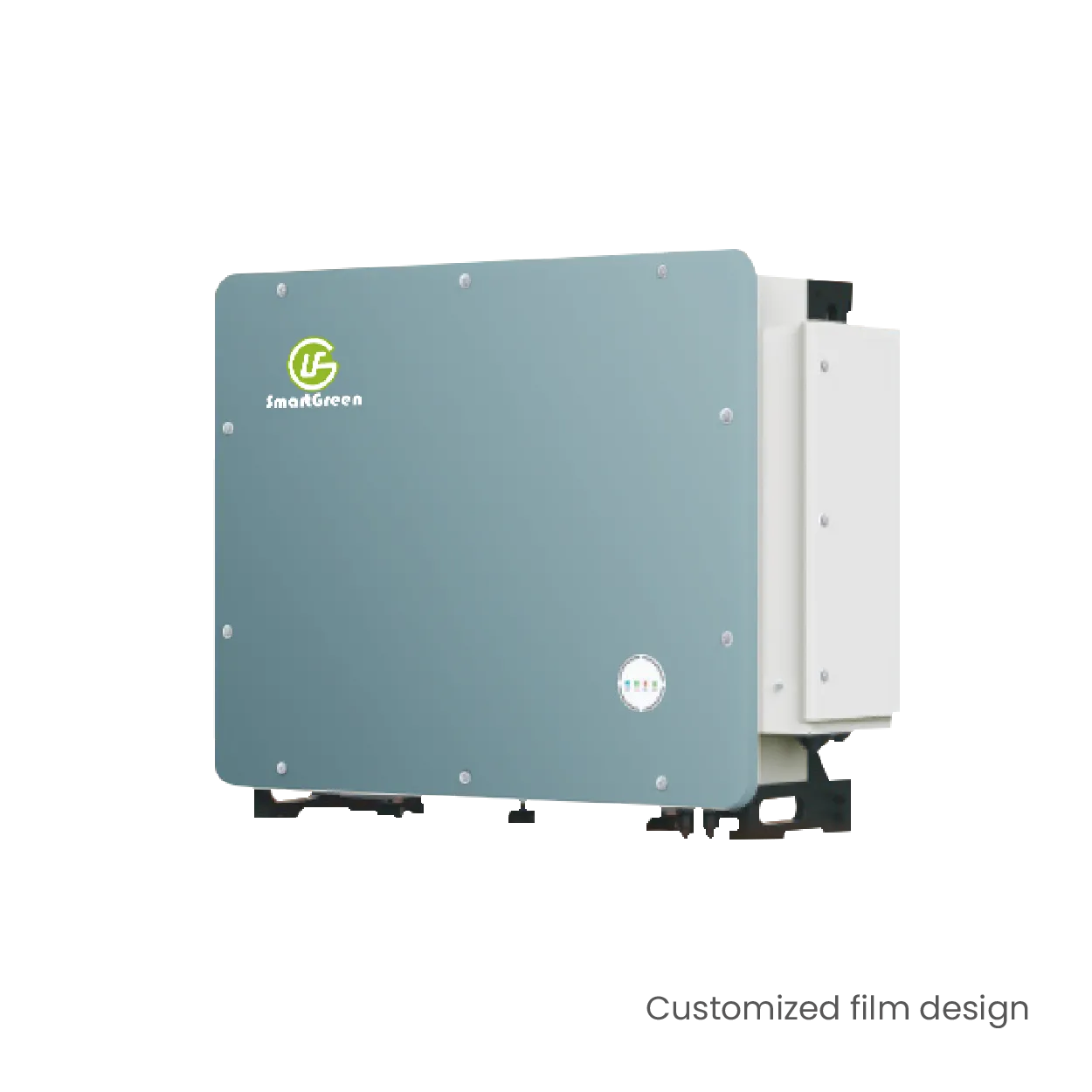

Appearance
- Dimensions(WxHxD): 1147 x 800 x 362 mm
- Weight: < 117 kg
Input
- Rated / Max. PV input voltage: 1180 V / 1500 V
- MPPT voltage range:500~1500 V
- Max. PV input current per MPPT: 75 A
- Number of MPPT: 6
- Max. efficiency: 99.05 %
Interface
- Display: LED, Bluetooth+ APP
- Communication Interface: RS485, PLC
Mechanical
- Protection: IP66
- Cooling:Smart Air Cooling
Product Highlights
Efficient Power Generation: 6-channel 75A MPPT design compatible with 182mm and 210mm modules, achieving up to 99.05% maximum efficiency and 98.8% European efficiency.
Stable & Weather-Resistant: SCR ≥0.99 ensures stable operation even in extremely weak grid conditions, with IP66 protection and C5 anti-corrosion rating.
Smart Monitoring: Supports power line communication (PLC), with PV string monitoring and intelligent breaking technology to improve system management efficiency.

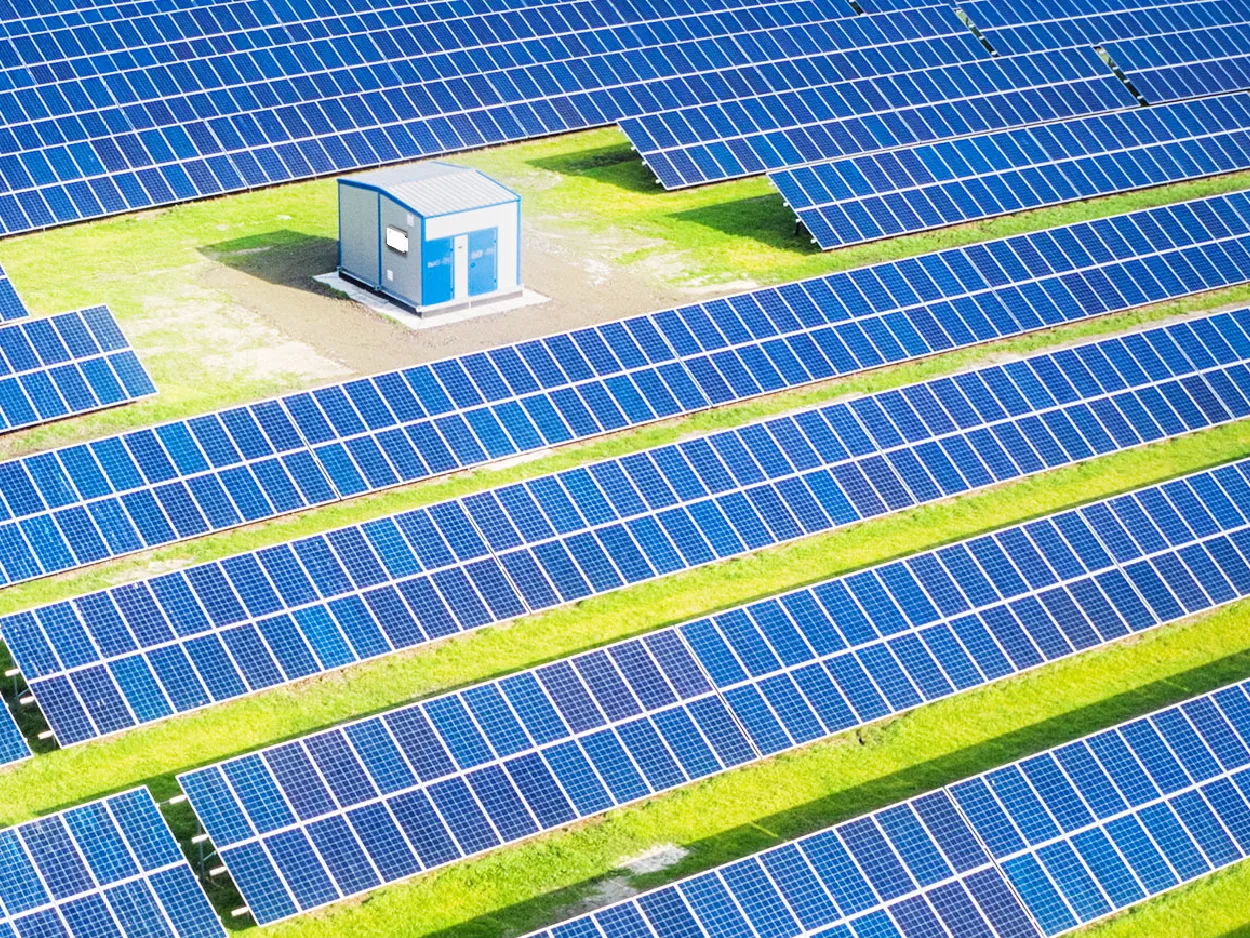

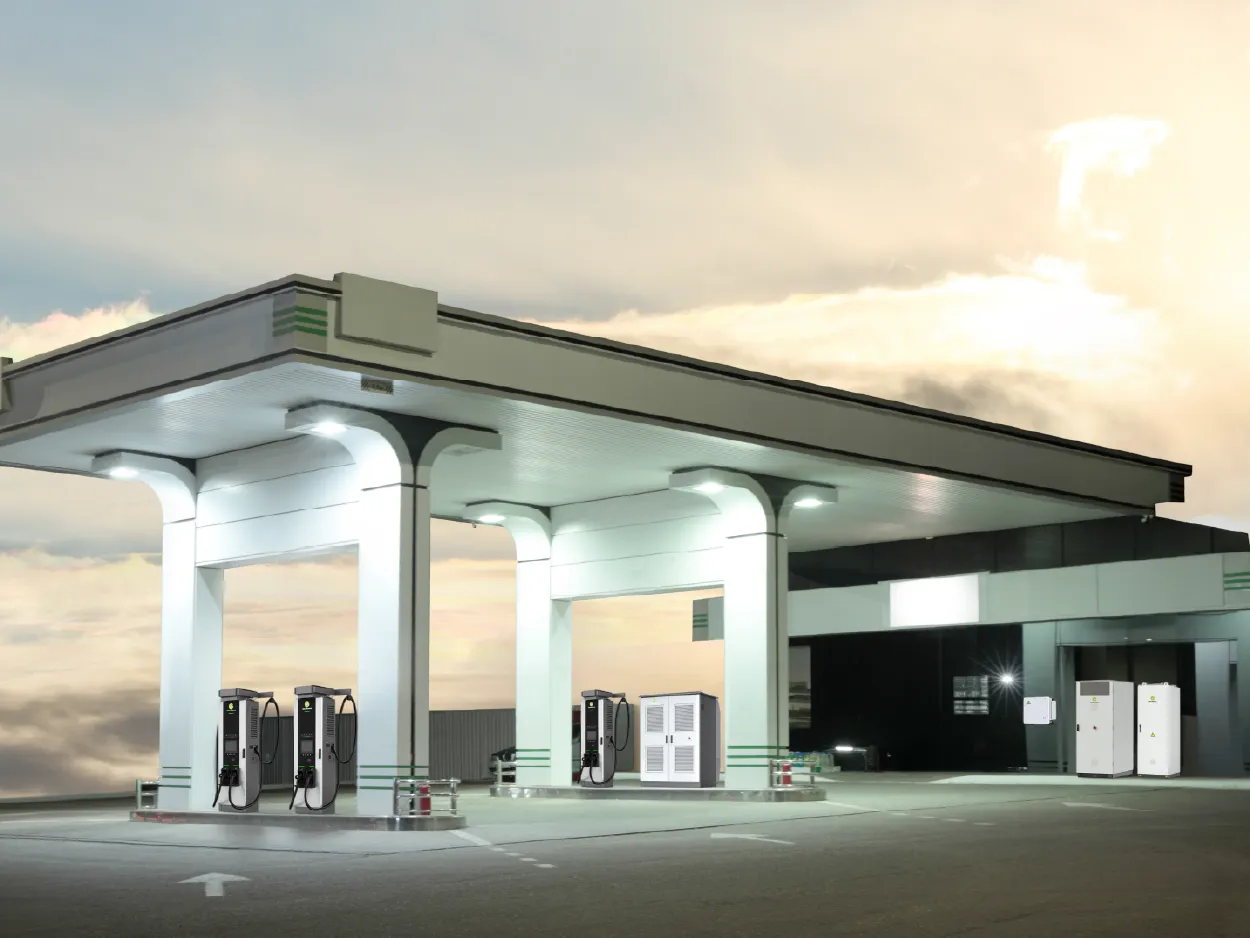

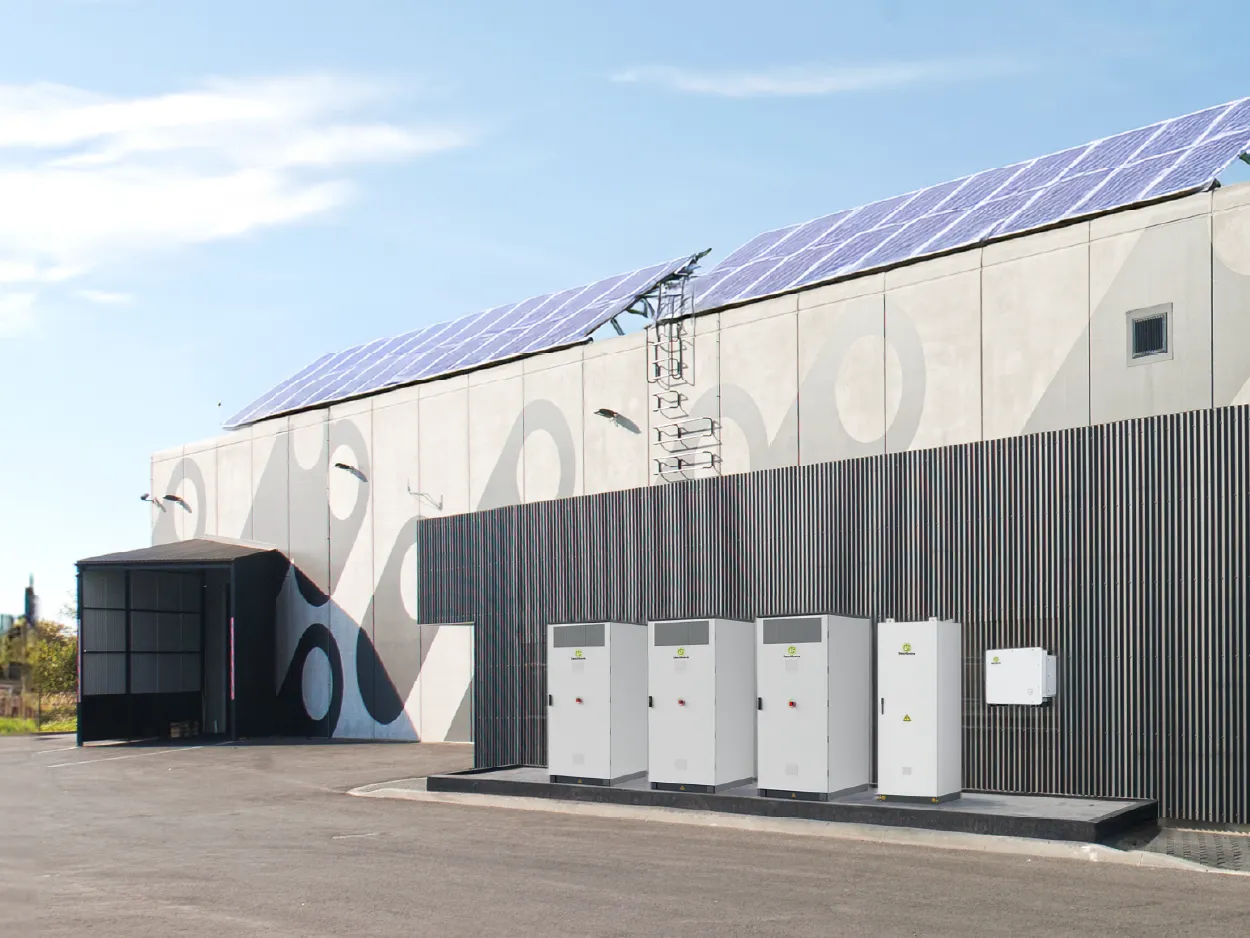

Applicable Locations
