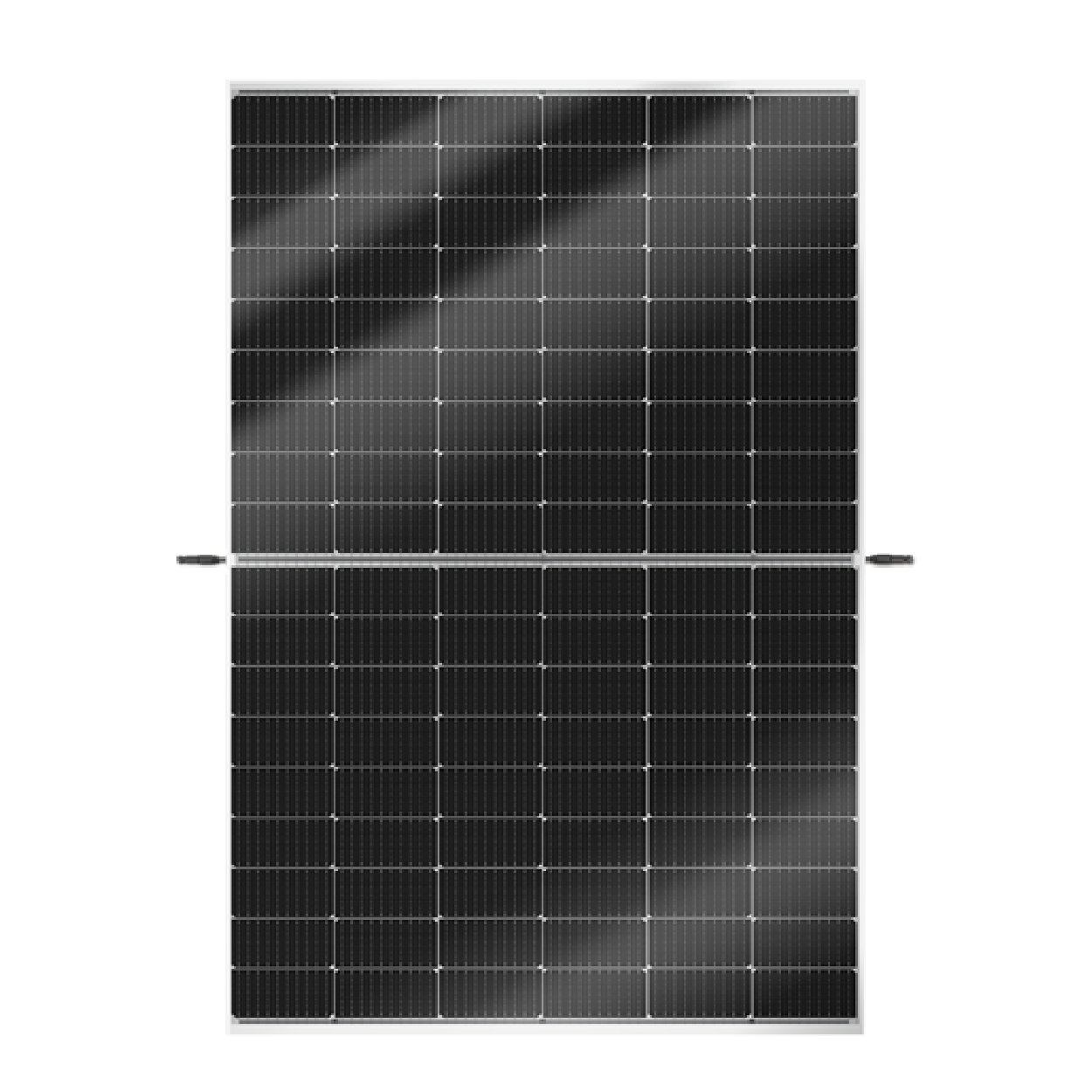

Solar Panel
SSD
Europe(EU)
- Model: SSD
Appearance
- Dimension(LxWxT): 1716 × 1128 × 2.2mm
- Weight: about 9.1kg
Electrical (STC)
- Transfer Efficiency: 21.20%
- Max. working power: Pm: 410W
- Optimum working voltage: Vm: 31.28V
- Optimum working current: Im: 13.13A
- Open circuit voltage: Voc: 37.2V
- Short circuit current: Isc: 14.1A
- Max. system voltage: 1500Vdc Max.
Connection Box
- Connector: compatible with MC4
- Protection: IP68
- Fuse rating current: 25A.
Mechanical
- Surface: Highly transparent tempered glass.
- Intensity: 2400Pa(top)/ 2400Pa(bottom)
Product Highlights
Lightweight,component weight is only 4.7 kg/m²,suitable for low-load roofs
High strength,the surface uses ultra-thin tempered glass, with a load-bearing capacity of 2400 Pa and hail resistance
Maximum power output of 410W, dimensions of 1716×1128×2.2mm, and weight of 9.1 kg

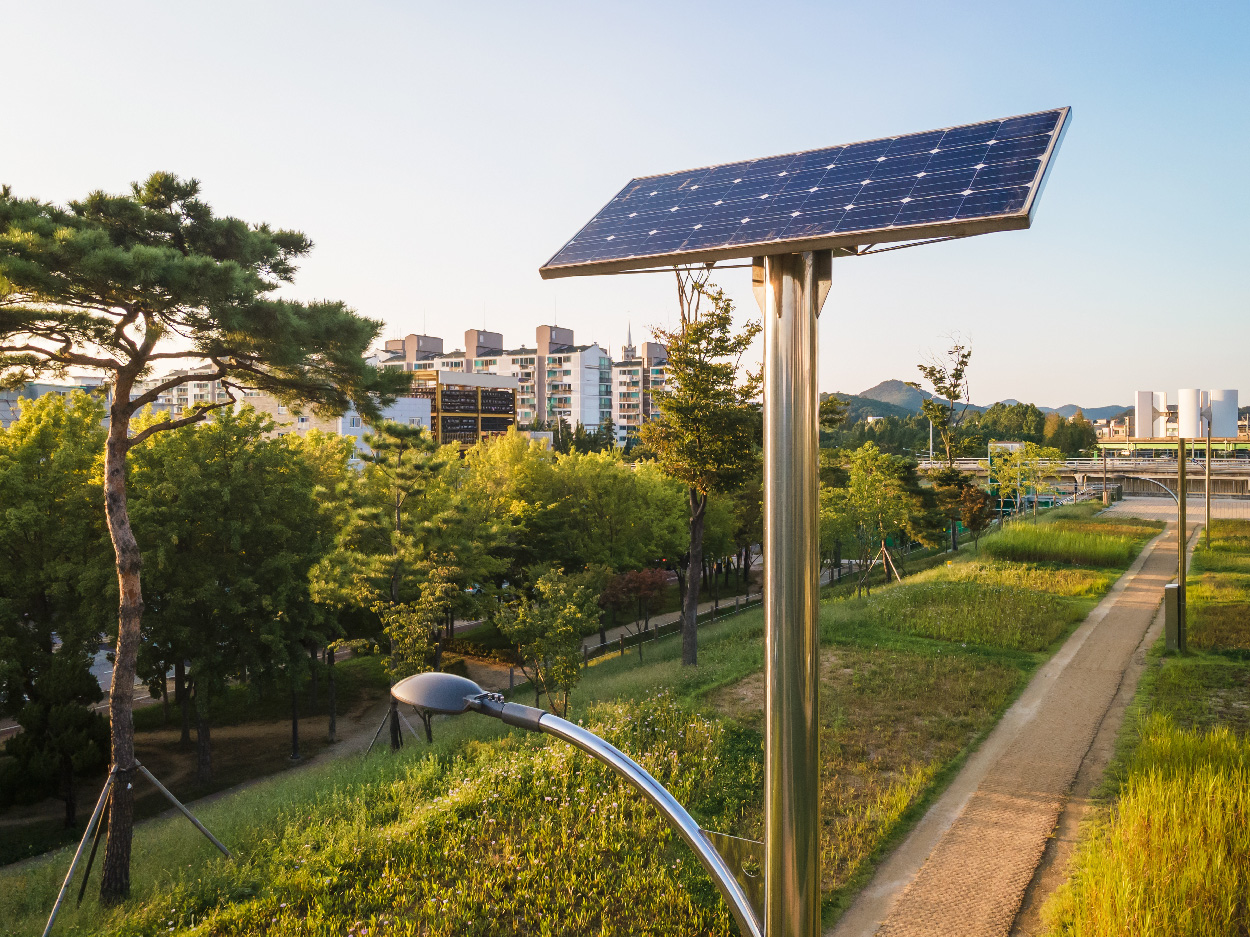

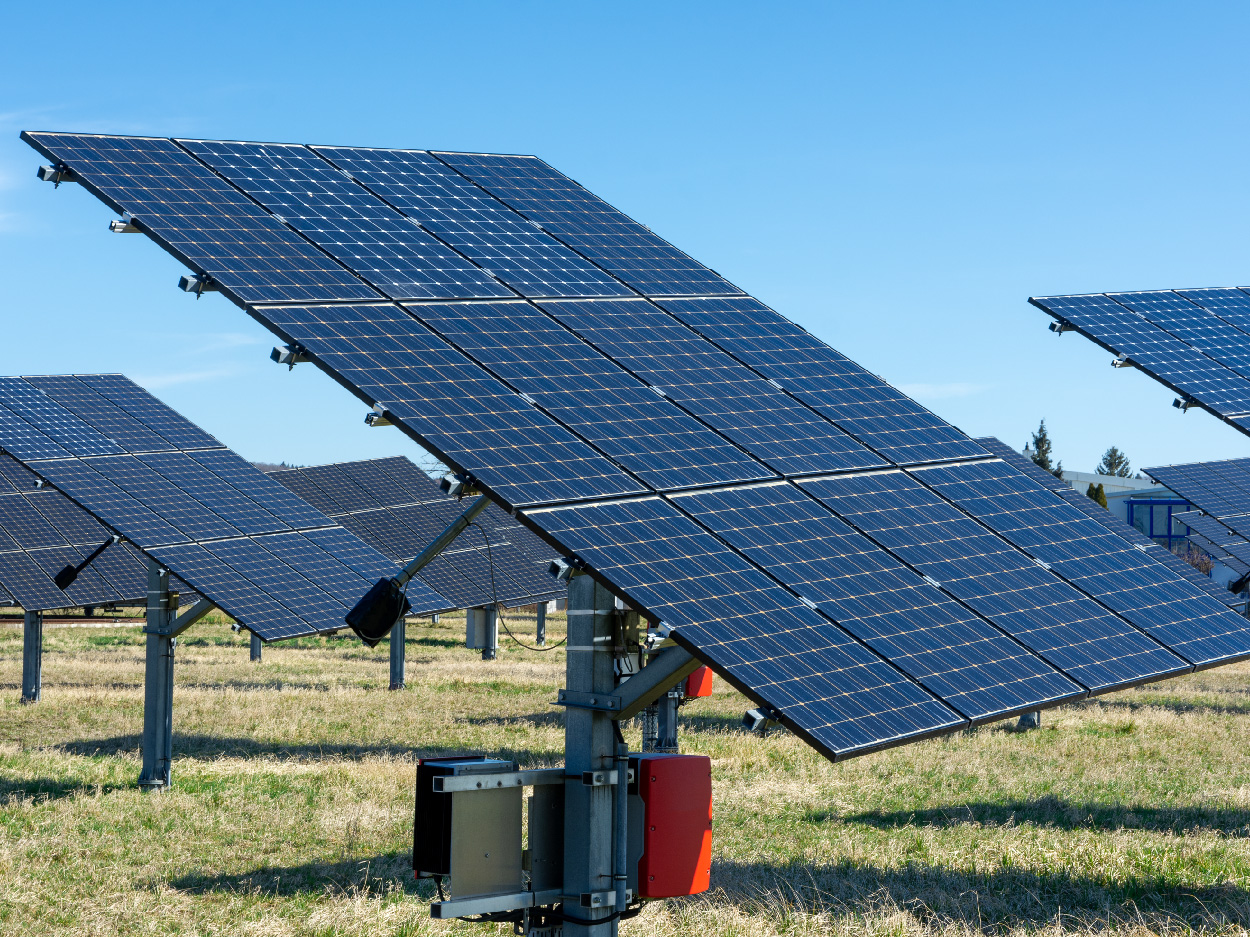

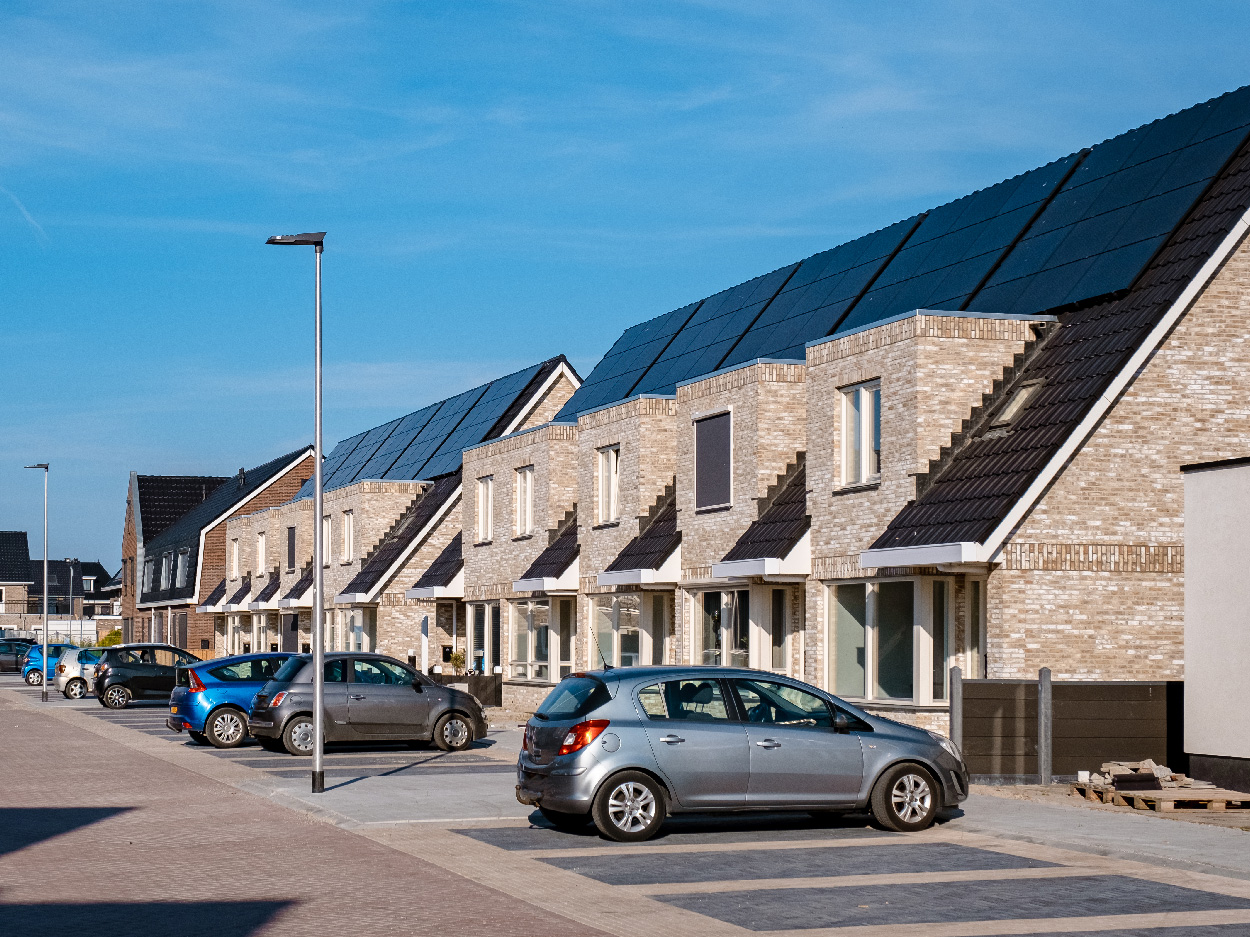

Applicable Locations
