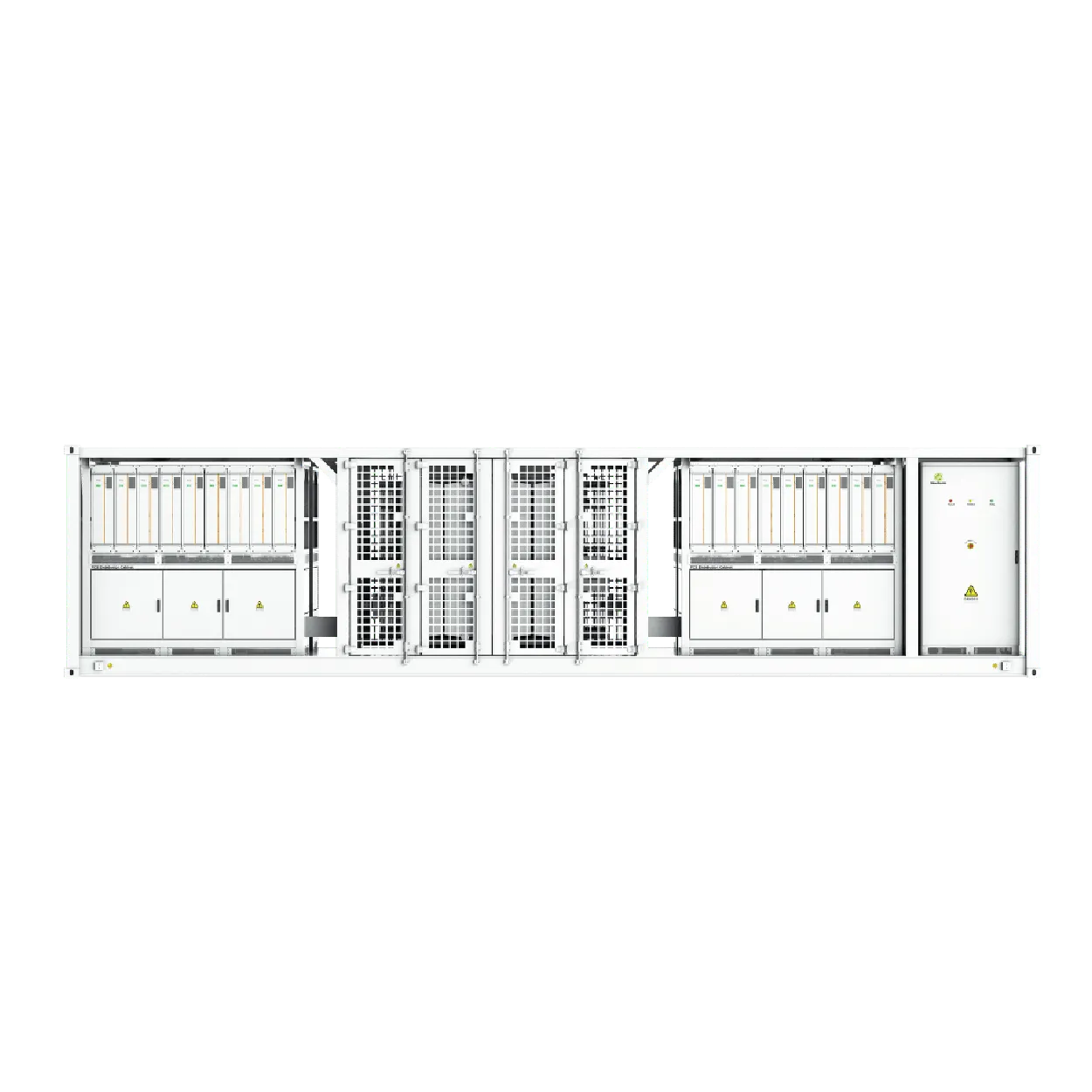

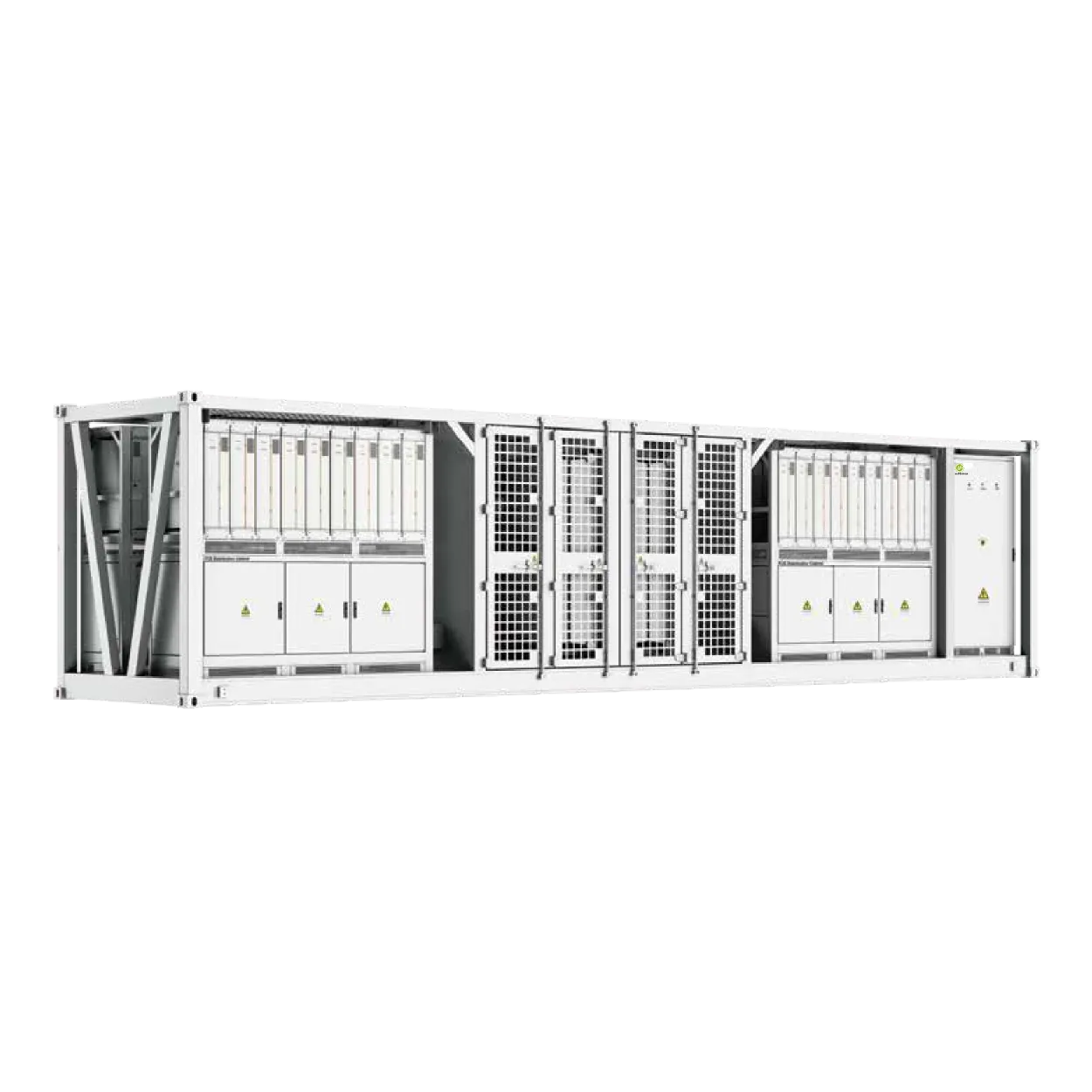

Large-Scale Industrial ESS
String PCS and Transformer Station
Europe(EU), Taiwan(TW), Canada(CA)
Appearance
- Dimensions(WxHxD): 12192 x 2896 x 2438 mm
- Weight: ≤ 34.5 t / ≤ 29.5 t
DC Side
- Max. DC voltage: 1500 V
- Rated DC power:215 kW x 36 / 215 kW x24 V
- DC voltage range:1000~1500 V
Interface
- Communication interfaces: RS485, Ethernet, CAN
Mechanical
- Protection: IP66 (PCS) / IP54 (Cabinet body)
Compliance
- Safety: IEC61000, IEC 60076, IEC62271
Product Highlights
Time-Saving Efficiency: Factory pre-installation and pre-commissioning save over 50% of installation time; cluster-level management boosts usable system capacity by 8%.
Ultimate Safety: Anti-condensation design for battery packs and cabinets, with advanced thermal isolation, electrical safety protection, and four-level circuit breaking, keeping risk controllable across the entire chain and ensuring long-term stable returns.
Robust & Reliable: Cabinet achieves a 2-hour fire rating, PCS features IP66 protection and C4 anti-corrosion capability, smart liquid cooling maintains temperature uniformity ≤3°C, battery life extended by 10%, and equipped with smart BMS millisecond-level monitoring and one-click upgrade.

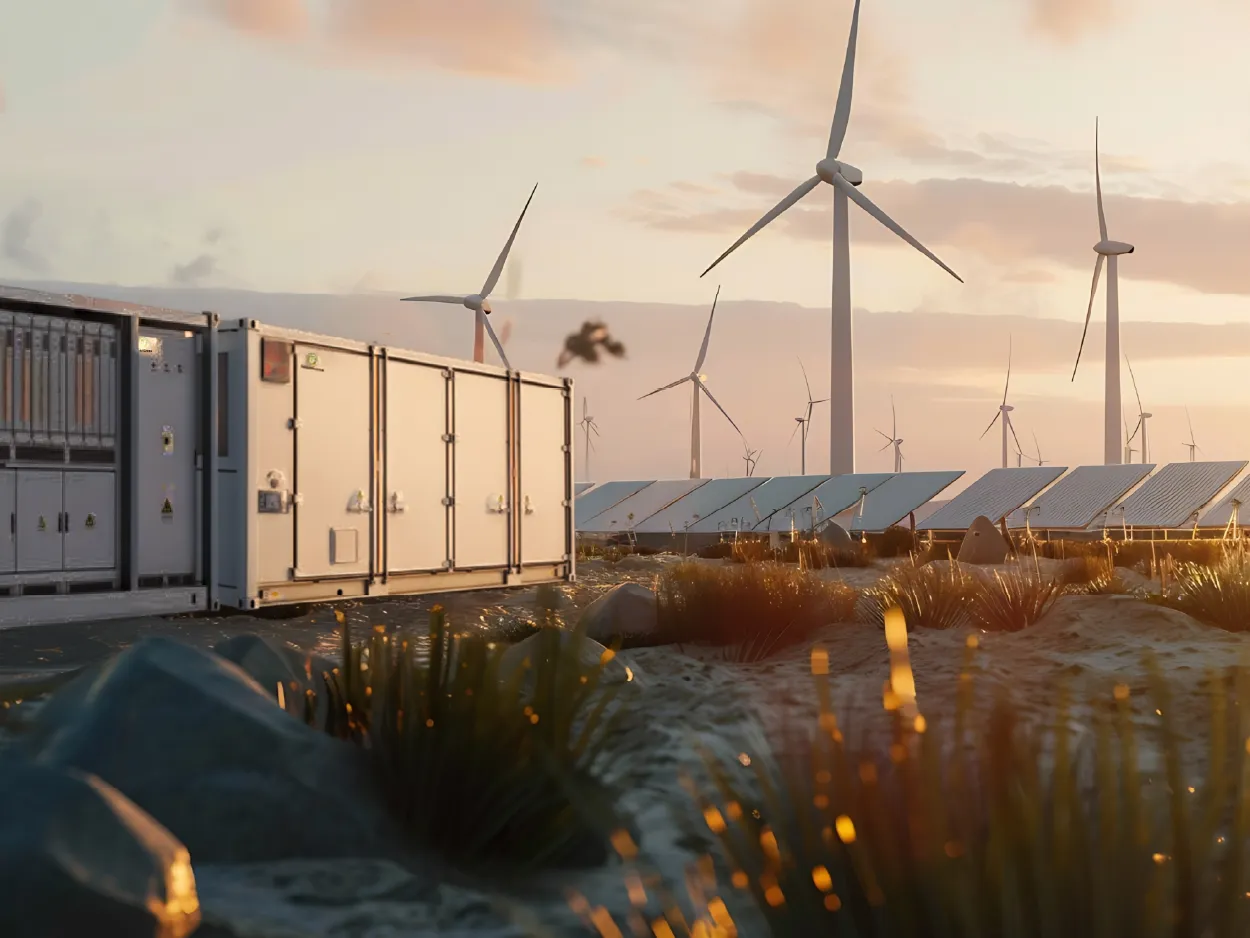

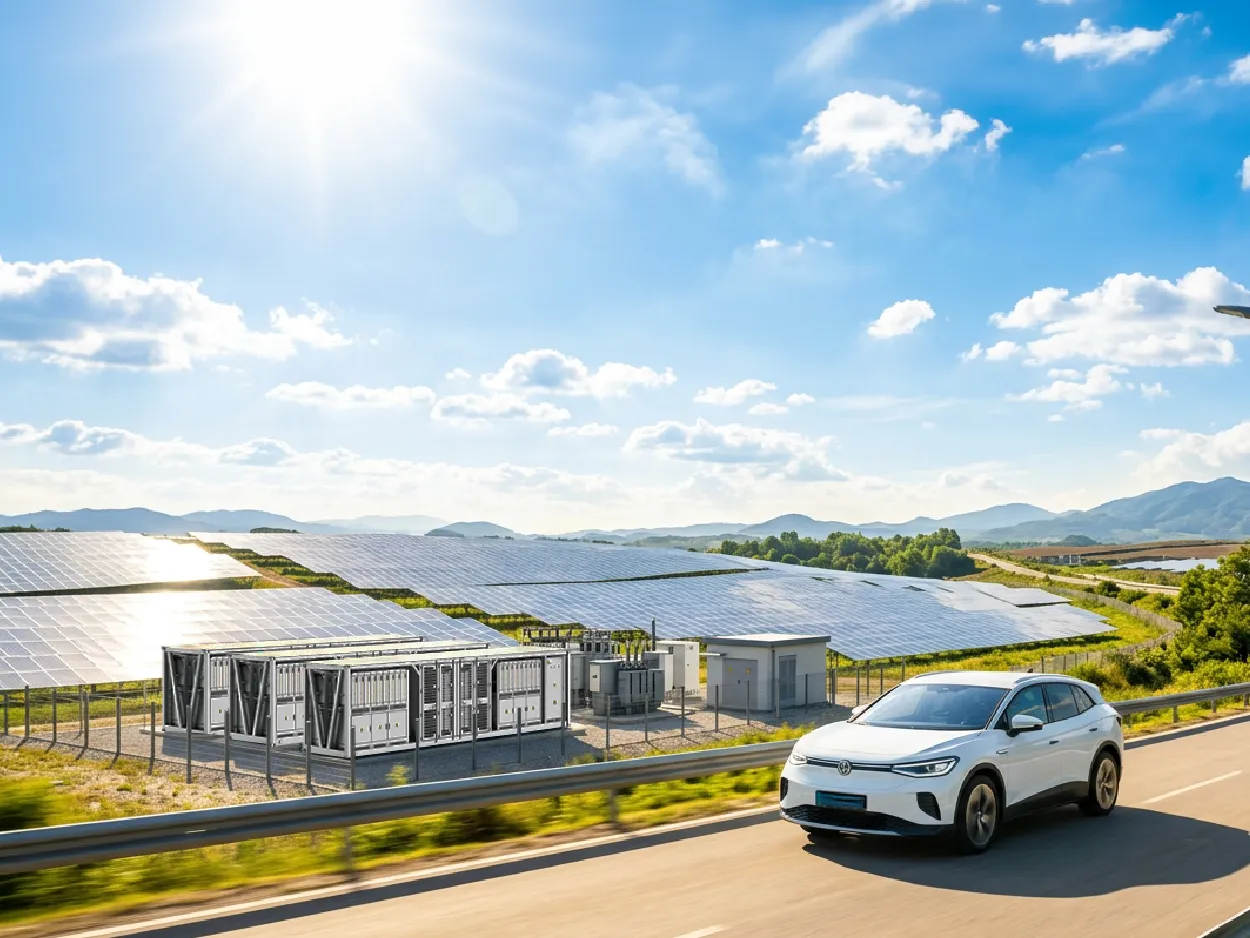

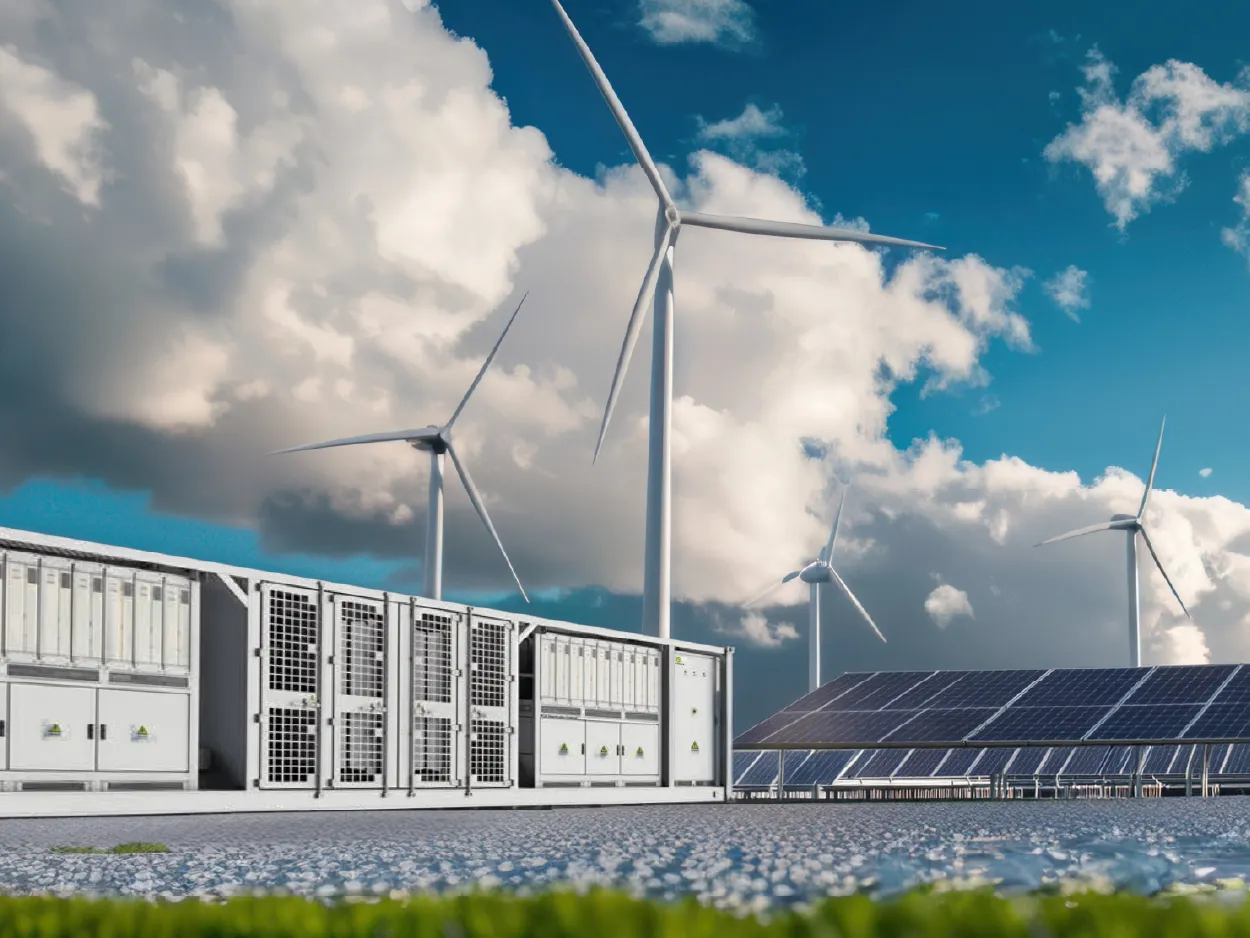

Applicable Locations
