เครื่องชาร์จ AC
SAT 7 - Type2
Europe(EU)
- Model: CAC-000702-P01 | EU
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 4.6kg (body)

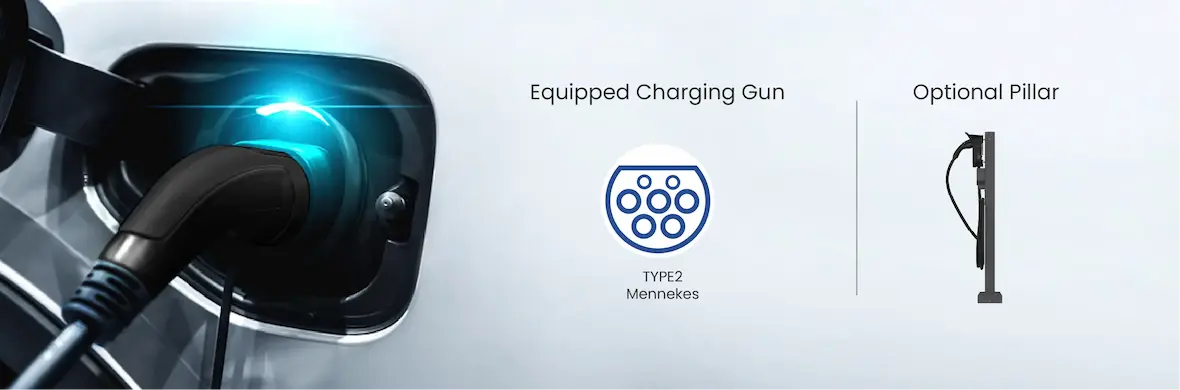

- Charging plug: TYPE2 (single), with 5m cable length
Input
- Input Connection: L+N+PE, single-phase
- Input Voltage: 230Vac±15%, 50/60Hz
- Input Current: 32A Max
Output
- Output Power: 7kW
- Output Voltage: 230Vac±15%, 50/60Hz, single-phase
- Output Current: 32A Max
Interface
- Display: LED indicator and digital screen
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: IP55/IK10 (Screen IK08)
- Cooling: Natural Convection
Compliance
- Certification: CE, CB, NBTC, PTEC
- Safety: IEC 61851-1, IEC 62955 (RCD)
- EMC: IEC 61851-21-2
จุดเด่นของผลิตภัณฑ์
支援基於OCPP 1.6J協議連接至任意後端，並提供遠程控制與監測功能。
具備多重電氣保護，符合國際認證標準，確保使用者安全。
精簡的設計 - 小巧、輕量、節省空間，並易於維護。
