ระบบกักเก็บพลังงานสำหรับบ้าน
Battery - SHB 10 - UL
Taiwan(TW)
- Model: EHB-001000-TU0 | TW

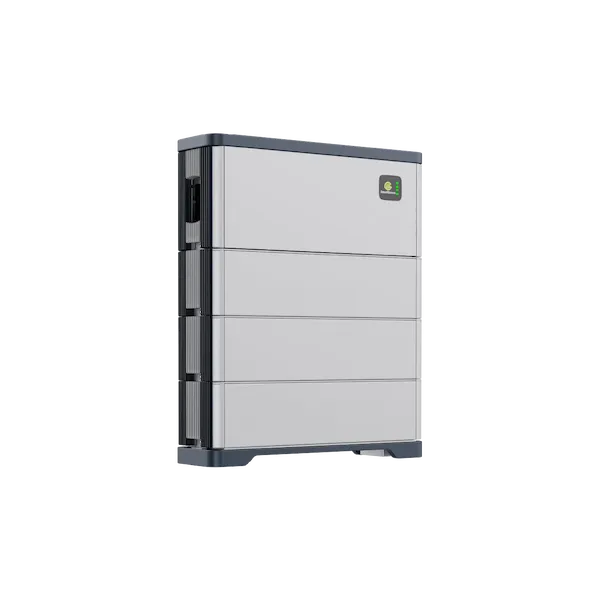

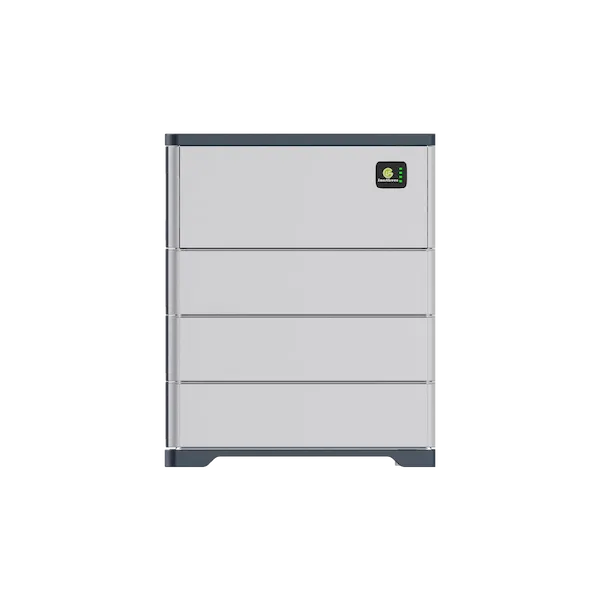

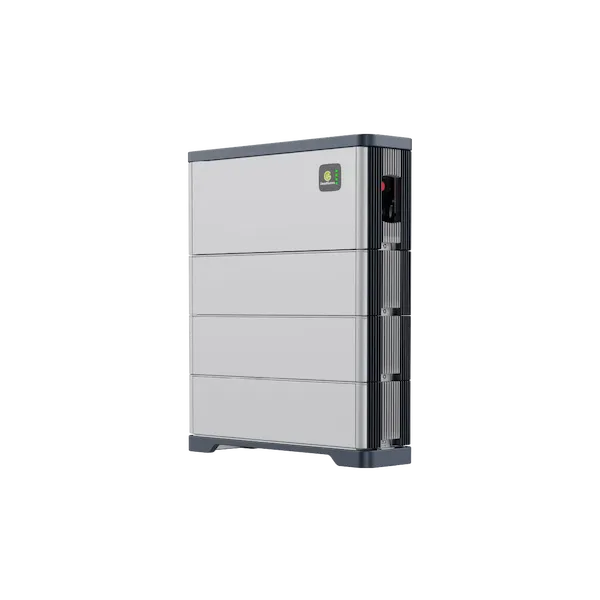

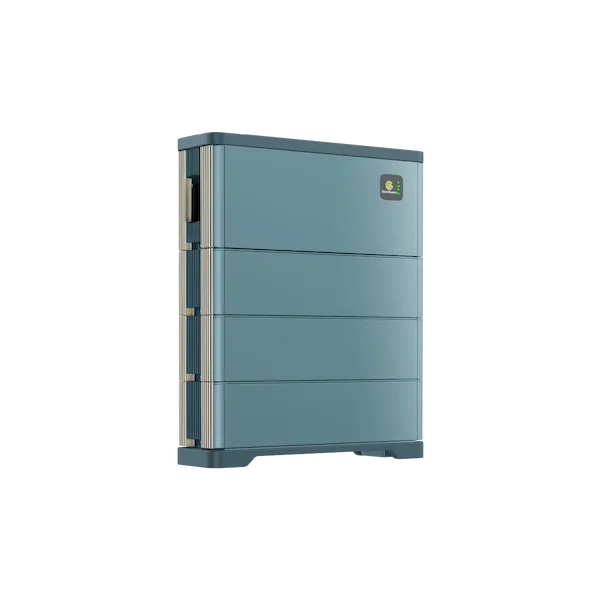

Appearance
- Dimension(WxHxD): 799 x 959 x 218 mm
- Weight: about 109kg (battery modules *3)
Battery Module
- Installed Capacity: 10.3kWh/ LFP
- DOD: >90%
- Working Voltage for split-phase: 380Vdc to 550Vdc
- Working Power: 4.8kW
- Working Current: 28A Max.
- Charging/Discharge Rate: 0.5 C
Interface
- Communication: RS485
- Compatible: SHP series inverters
Mechanical
- Protection: IP55
- Cooling: Natural Convection
- Installation: Floor-mounting
Compliance
- Safety: IEC 62619, CNS 62619
- EMC: IEC 61000-6-1
จุดเด่นของผลิตภัณฑ์
Compact design for transportation and expansion and modular design for installation and maintenance.
Automatically store energy from solar power or grid power during low-price period and supply the power to house needs at any time.

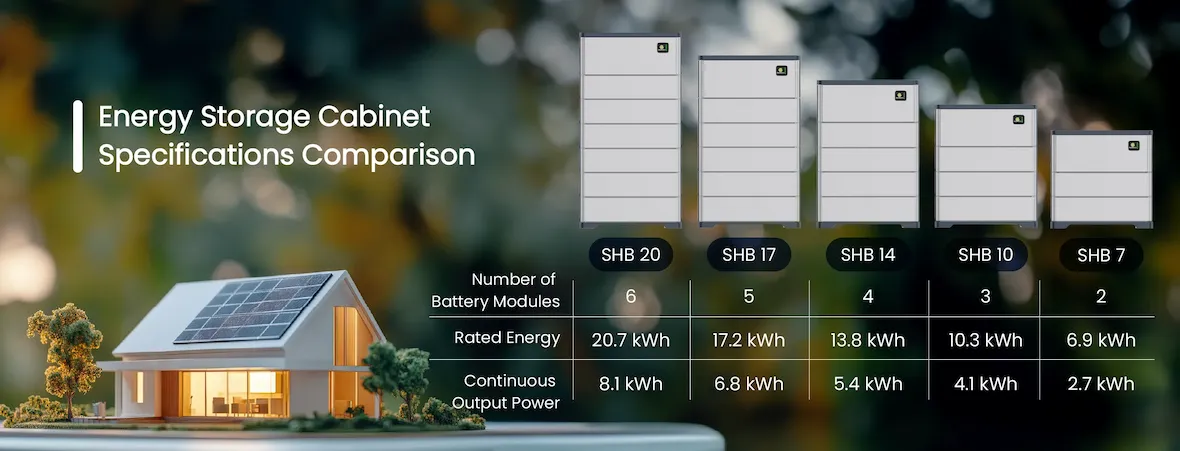

Flexible to choose different quantities of battery modules based to user requirements of capacity and space.

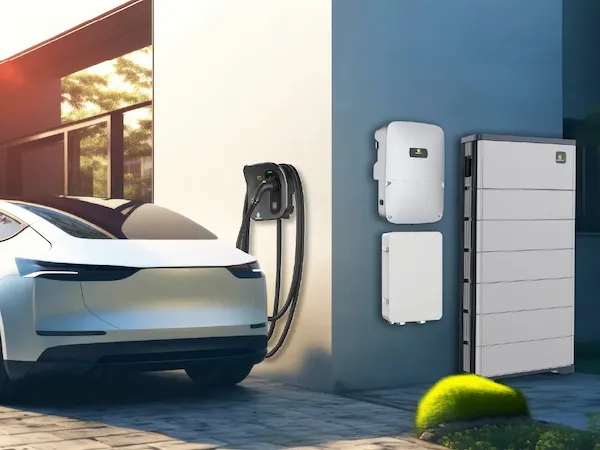

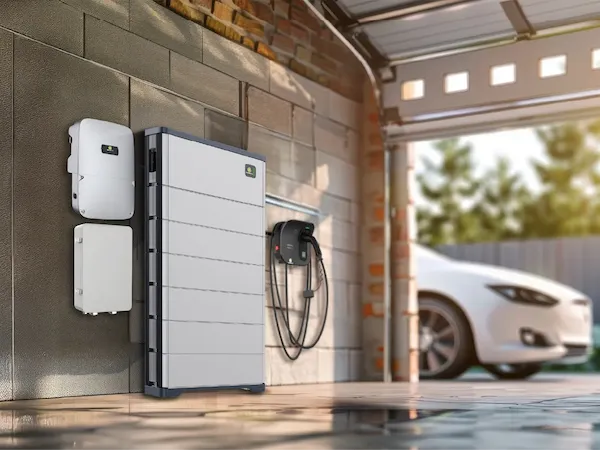

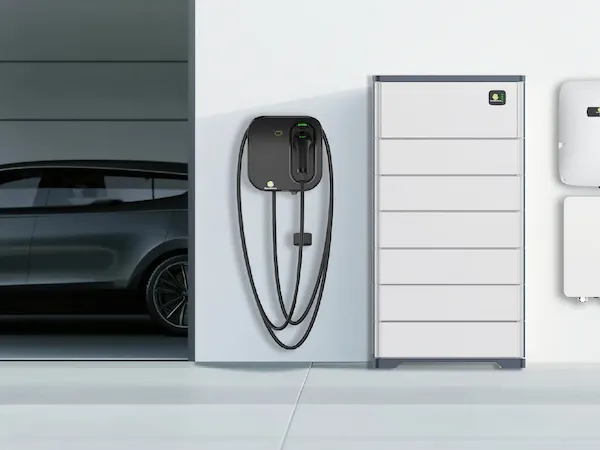

พื้นที่ติดตั้ง
