ระบบกักเก็บพลังงานสำหรับบ้าน
Battery - SHB 20
Europe(EU)
- Model: EHB-002000-P00 | EU

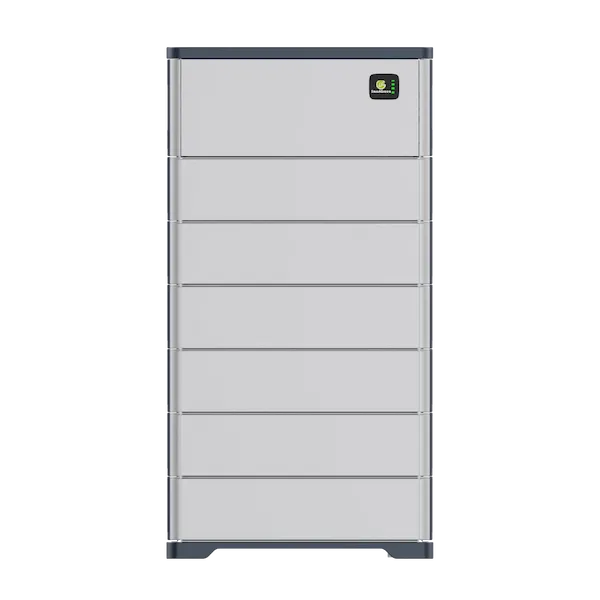

Appearance
- Dimension(WxHxD): 799 x 1533 x 218 mm
- Weight: about 196kg (battery modules *6)
Battery Module
- Installed Capacity: 20.7kWh/ LFP
- DOD: >90%
- Working Voltage (single-phase): Rated 437V, Range: 360Vdc to 480Vdc
- Working Voltage (three-phase): Rated 750V, Range: 690Vdc to 950Vdc
- Working Power: 8.1kW
- Working Current: 25A Max.
- Charging/Discharge Rate: 0.42 C
Interface
- Communication: RS485
- Compatible: SHP series inverters
Mechanical
- Protection: IP55
- Cooling: Natural Convection
- Installation: Floor-mounting
Compliance
- Safety: IEC/EN62477-1, IEC 63056, IEC 62619, UN38.3
- EMC: EN IEC 61000-6-1/-3
จุดเด่นของผลิตภัณฑ์
