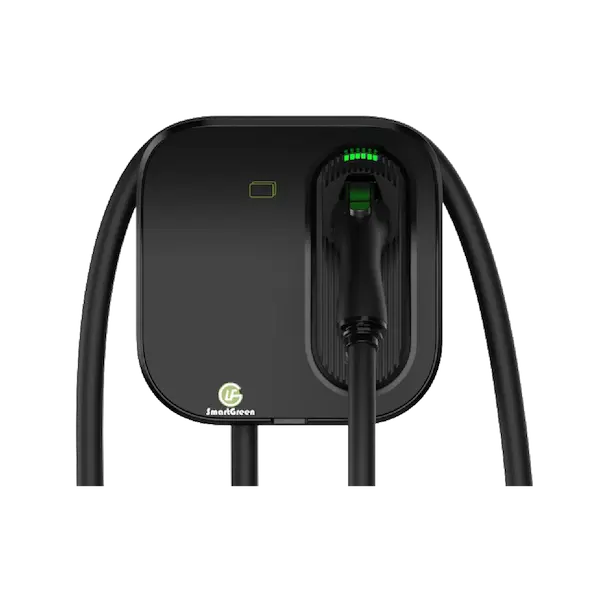

交流充電設備

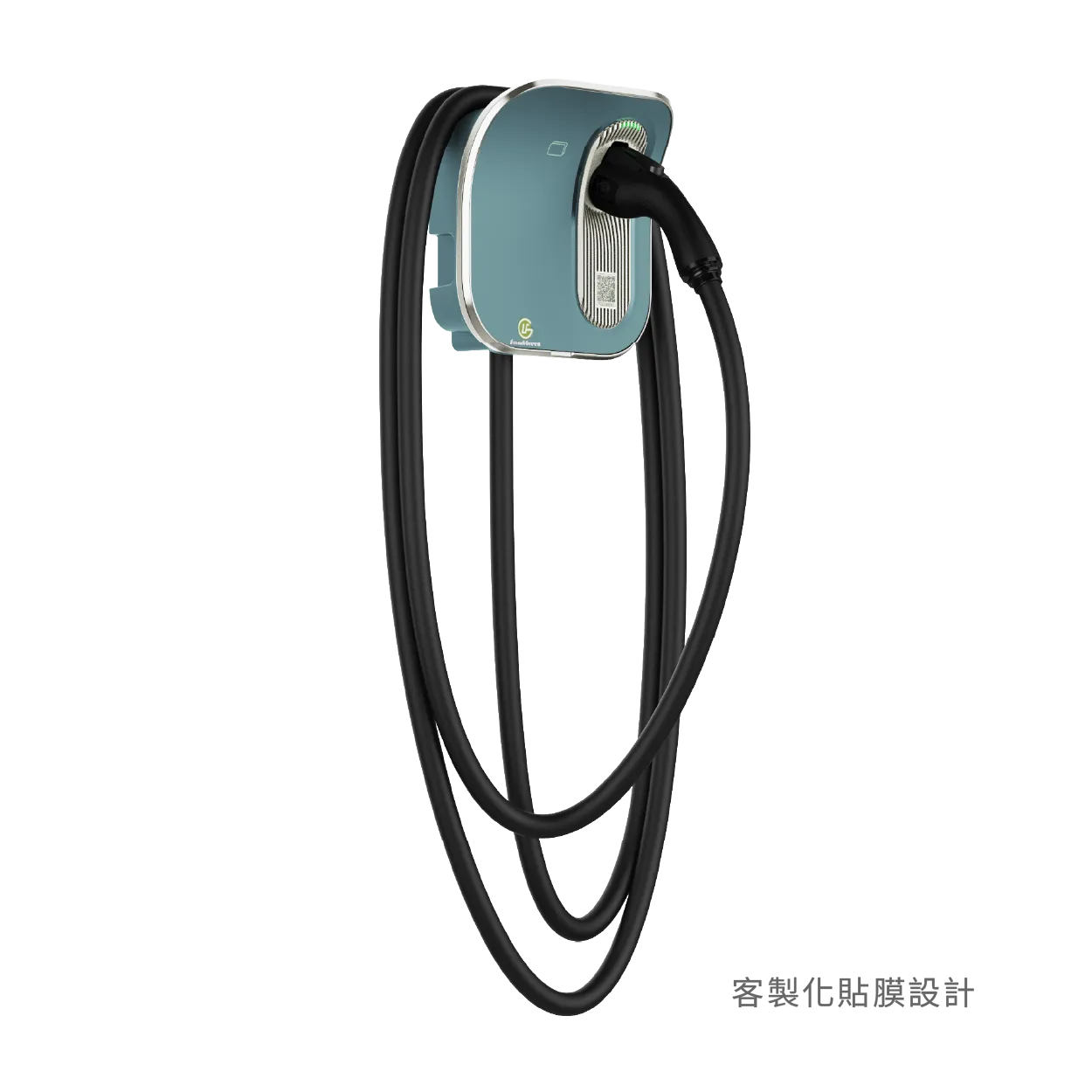

SAT 11.5 - Type1
加拿大(CA)
- Model: CAC-001101-C00 | CA
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 5.6kg (body)
- Charging plug: TYPE1 (single), with 5m cable length
Input
- Input Connection: L1+L2+PE
- Input Voltage: 208Vac±15% or 240Vac±15%, 50/60Hz for single-phase
- Input Current: 48A Max
Output
- Output Power: 11.5kW
- Output Voltage: 208Vac±15% or 240Vac±15%, 50/60Hz for single-phase
- Output Current: 48A Max
Interface
- Display: LED indicator
- User Authentication: RFID card
- Commutation: 4G, Wi-Fi,RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: NEMA TYPE4/IK10 (screen IK08)
- Cooling: Natural Convection
Compliance
- Certification: FCC, Energy Star
- Safety: UL2594, UL2231-1, UL2231-2
- Security: UL991/UL1998
- EMC: FCC Part 15 Class B
產品亮點
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
Support multiple electrical protection and comply with international verification to ensure user safety.
Compact and light design for tiny space and easy to install and maintain.
