交流充電設備

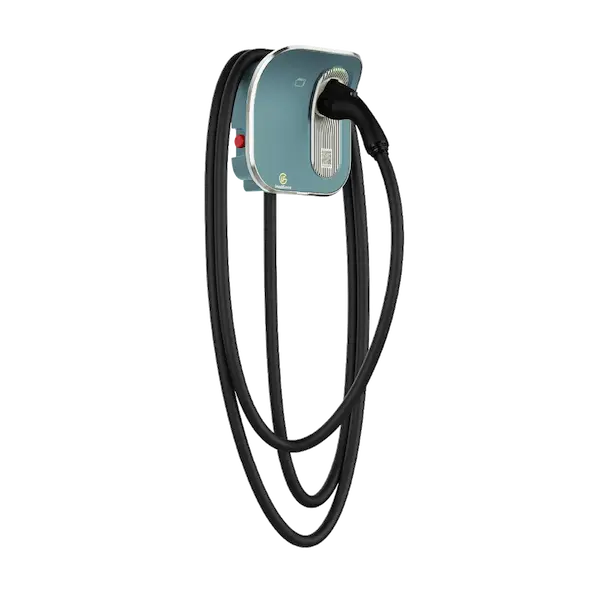

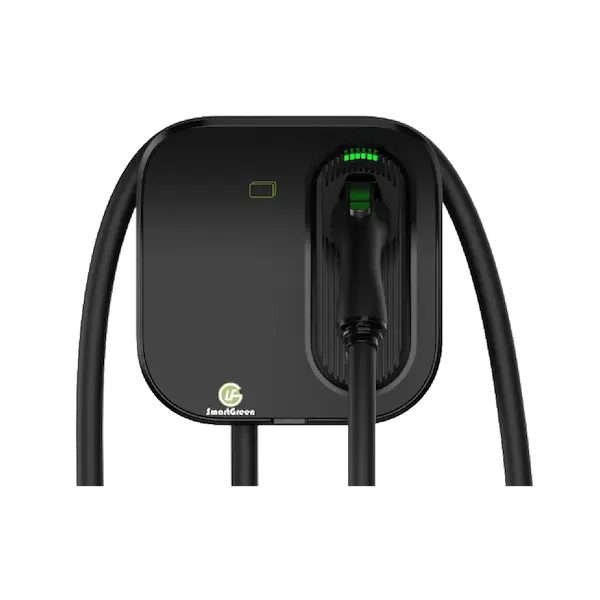

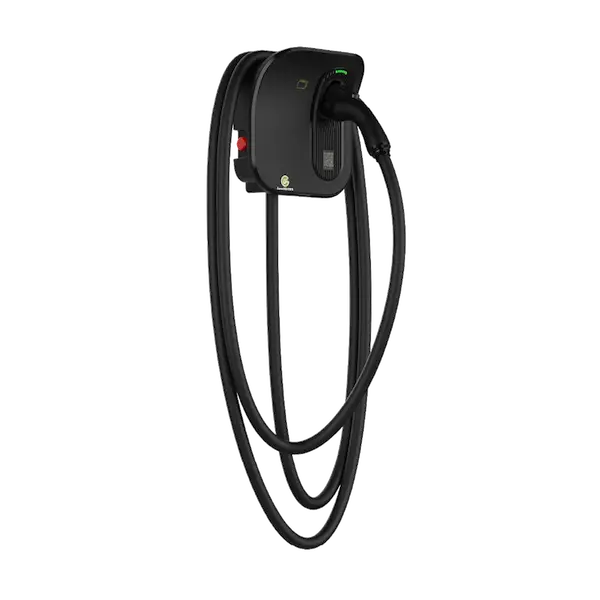

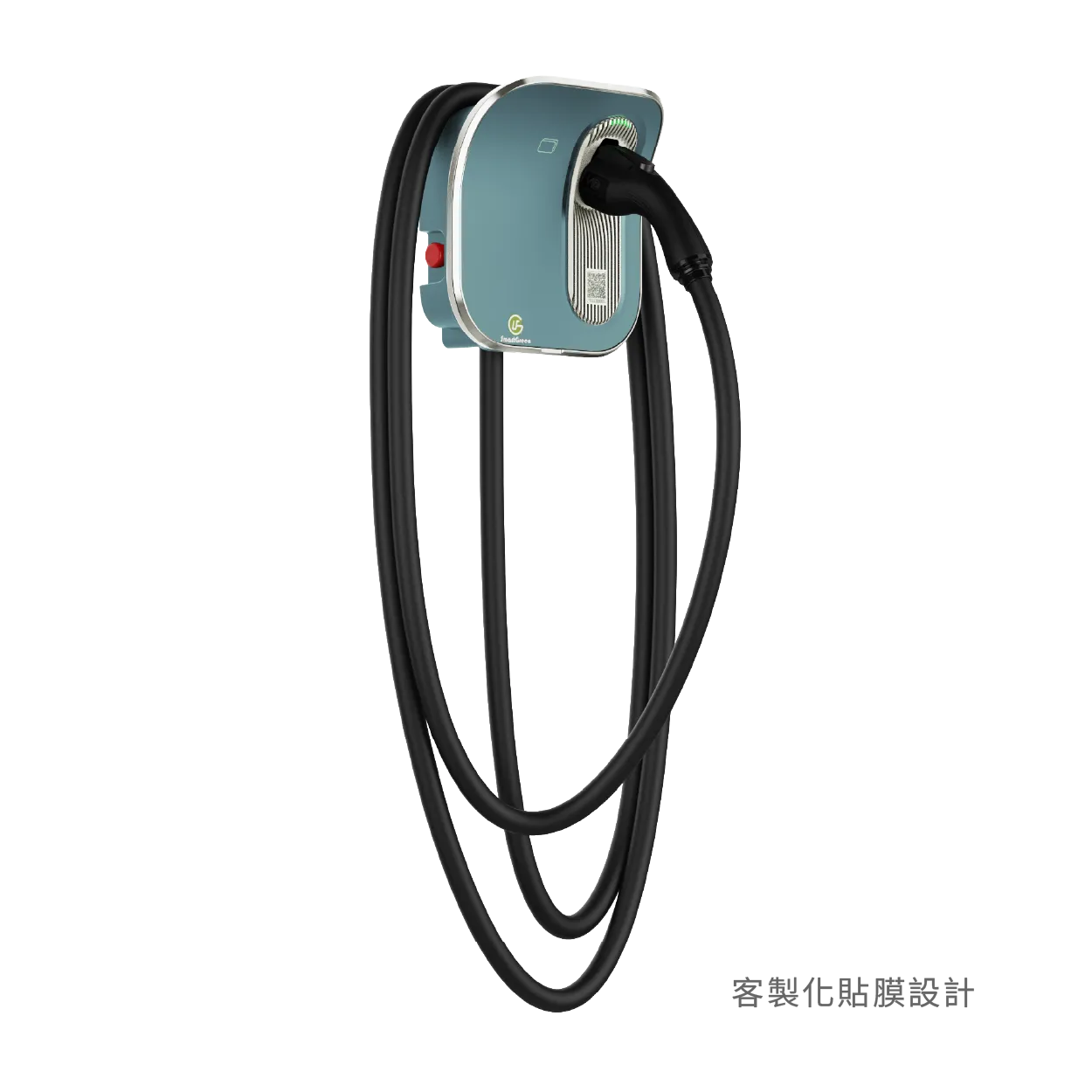

SAT 22 - Type2
歐洲(EU)
- Model: CAC-002202-P01 | EU
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 5.6kg (body)

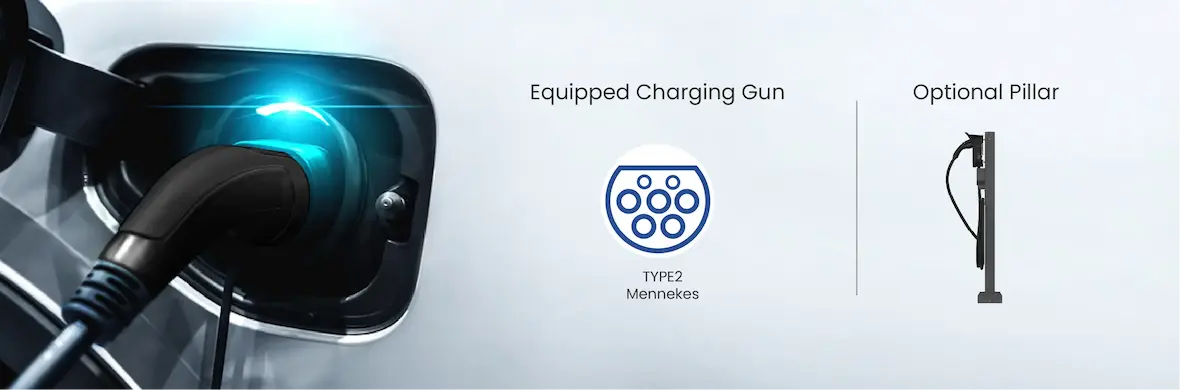

- Charging plug: TYPE2 (single), with 5m cable length
Input
- Input Connection: L1+L2+L3+N+PE, three-phase
- Input Voltage: 400Vac±15%, 50/60Hz
- Input Current: 32A Max
Output
- Output Power: 22kW
- Output Voltage: 400Vac±15%, 50/60Hz, three-phase
- Output Current: 32A Max
Interface
- Display: LED indicator
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: IP55/IK10
- Cooling: Natural Convection
Compliance
- Certification: CE, CB, NBTC, PTEC
- Safety: IEC 61851-1, IEC 62955 (RCD)
- EMC: IEC 61851-21-2
產品亮點
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
Support multiple electrical protection and comply with international verification to ensure user safety.

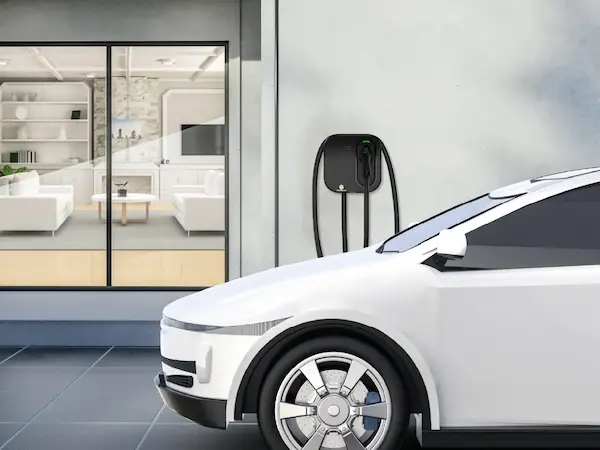

Compact and light design for tiny space and easy to install and maintain.
