家用儲能設備
Battery - SHB 20
歐洲(EU)
- Model: EHB-002000-P00 | EU

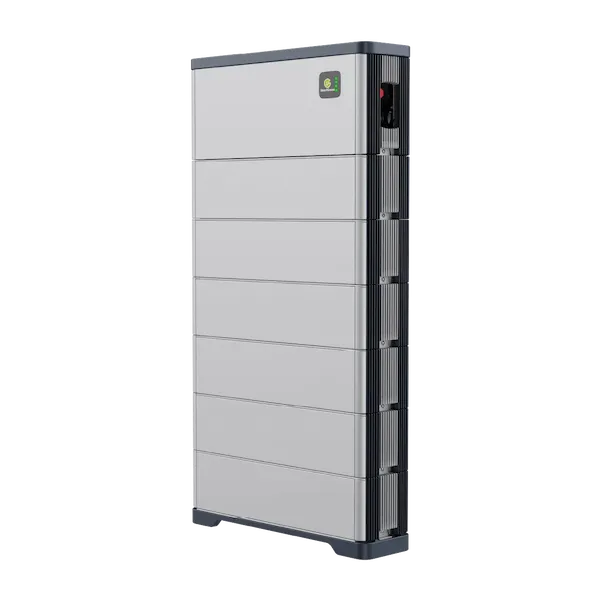

Appearance
- Dimension(WxHxD): 799 x 1533 x 218 mm
- Weight: about 196kg (battery modules *6)
Battery Module
- Installed Capacity: 20.7kWh/ LFP
- DOD: >90%
- Working Voltage (single-phase): Rated 437V, Range: 360Vdc to 480Vdc
- Working Voltage (three-phase): Rated 750V, Range: 690Vdc to 950Vdc
- Working Power: 8.1kW
- Working Current: 25A Max.
- Charging/Discharge Rate: 0.42 C
Interface
- Communication: RS485
- Compatible: SHP series inverters
Mechanical
- Protection: IP55
- Cooling: Natural Convection

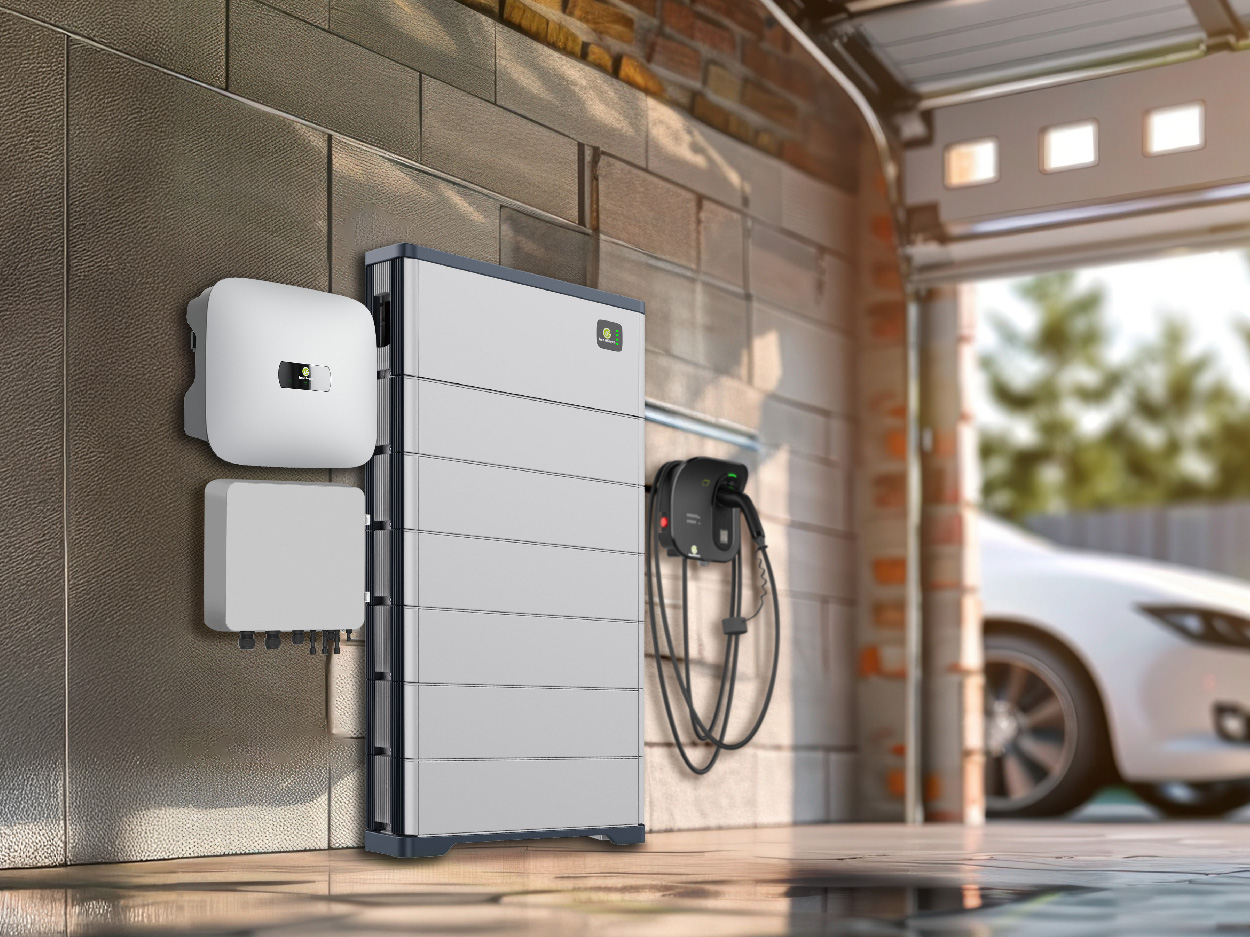

- Installation: Floor-mounting
Compliance
- Safety: IEC/EN62477-1, IEC 63056, IEC 62619, UN38.3
- EMC: EN IEC 61000-6-1/-3
產品亮點
Compact design for transportation and expansion and modular design for installation and maintenance.
Automatically store energy from solar power or grid power during low-price period and supply the power to house needs at any time.

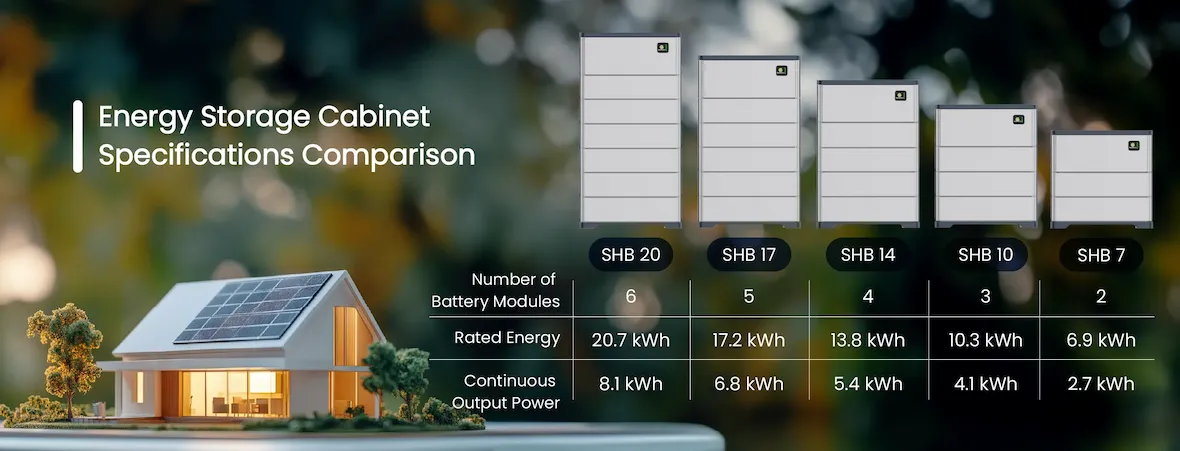

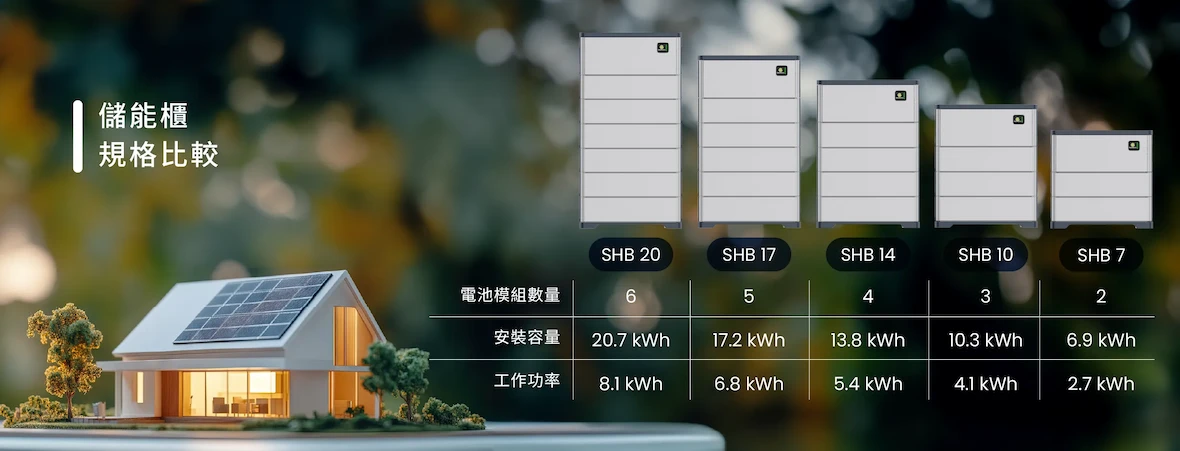

Flexible to choose different quantities of battery modules based to user requirements of capacity and space.
