商用儲能設備

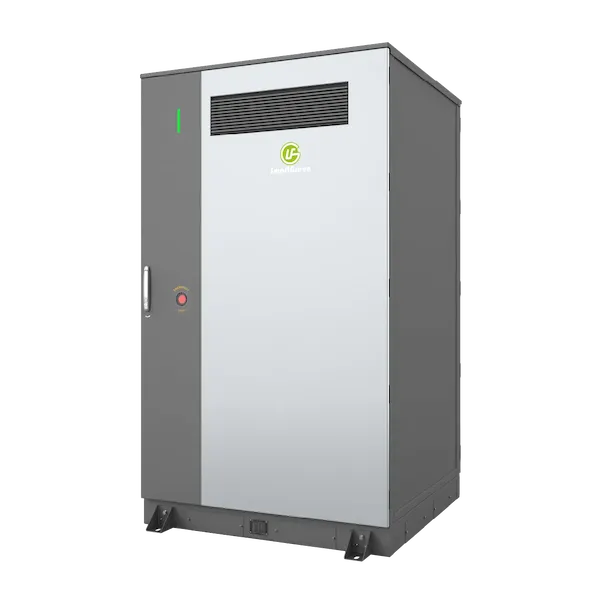

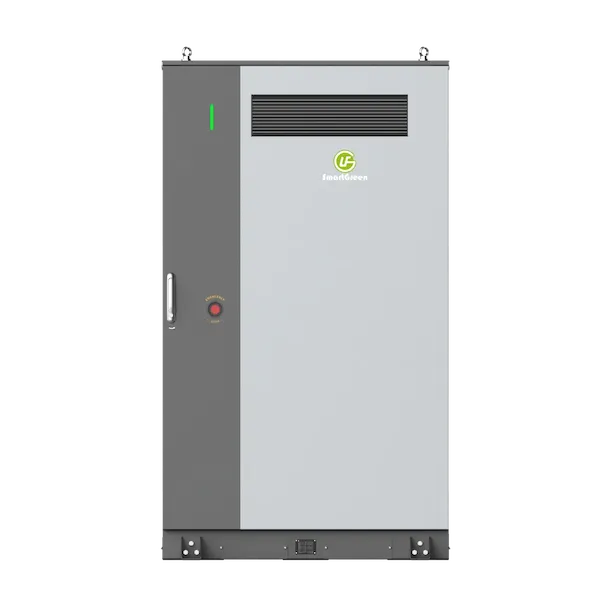

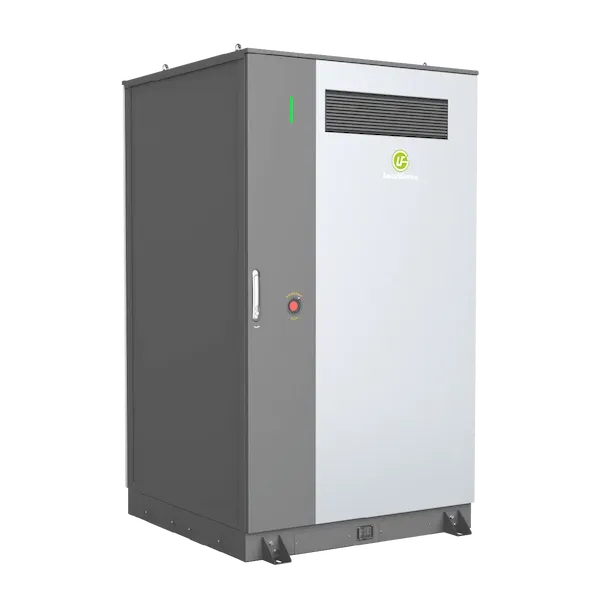

Battery - SCB 215
台灣(TW)
- Model: ECB-021500-T00 | TW
Appearance
- Dimension(WxHxD): 1,257 x 2,200 x 1,438 mm (including AC)
- Weight: about 2,545kg±20kg
Battery Module
- Cell Capacity: 280 Ah / LFP
- Installed Capacity: 215 kWh
- Working Voltage: Rated: 768V, Range:720Vdc to 852Vdc
- DOD: 93%
- Charging/Discharge Rate: ≤0.5 P
Interior PCS
- Connection: L1+L2+L3+N+PE, three-phase
- Rated Power: 100 kVA / 100 kW
- Rated Voltage: 220/380Vac, 50/60Hz
- Rated Current: 151A Max.
Interface
- Communication: Ethernet
- Display: 7” LED touch screen (interior)
Mechanical
- Protection: IP55
- Cooling: Industrial Air-controlled System
- Installation: Ground-mounting
Compliance
- Safety: IEC 62619, CNS 62619 (on going)
- EMC: IEC/EN 61000-6-2/-4
產品亮點
Highly integrated and modular design with LFP, BMS, EMS, PCS, HVAC in a cabinet and easy to install and maintain.
High-performance modular battery with high cycle life and transfer efficiency up to more than 90%.
High safety for outdoor using with IP54 water-proof and built-in smoke detector and auto fire extinguisher system.
