商用儲能設備

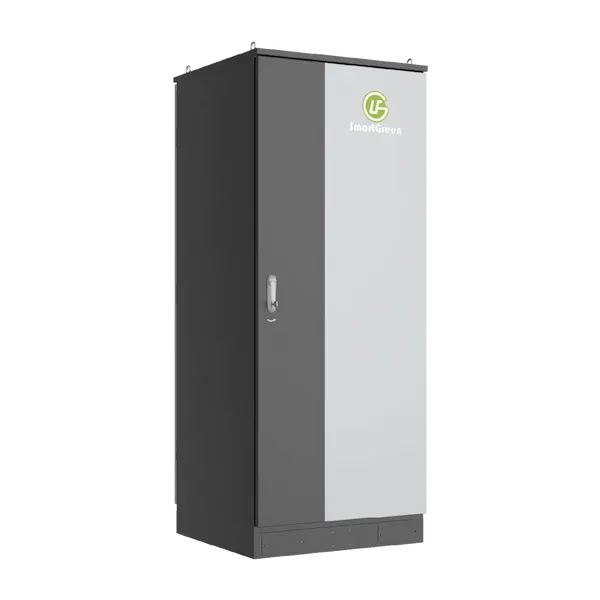

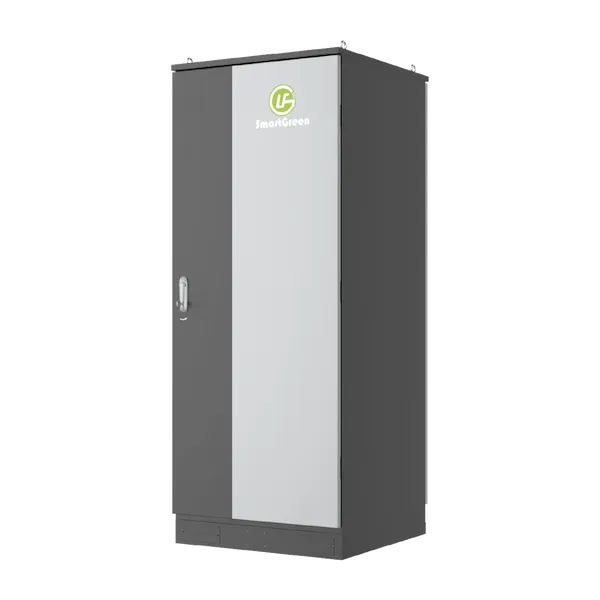

Switch - SPS 400
歐洲(EU)
- Model: EPS-063000-P00 | EU

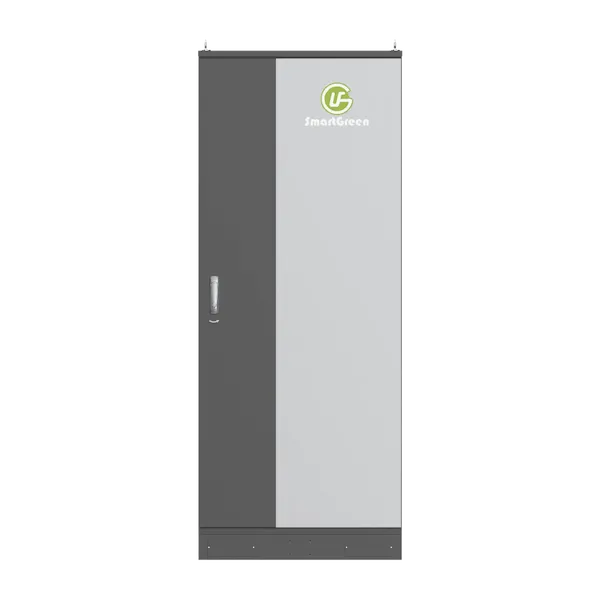

Appearance
- Dimension(WxHxD): 800 x 2000 x 800 mm
- Weight: about 350kg
Grid Port
- Connection: L1+L2+L3+N+PE, three-phase
- Rated Voltage: 230/400Vac, 50/60Hz
- Rated Current: 630A Max.
- On/Off-Grid switching: Supported manual and auto-switching
AC Port
- Enter Main Breaker: 630A/3P*1
- Output Branch Breaker: 250A/4P*2 and 400A/3P*2
Interface
- Smart Contro: Supported Web Backend
- Communication: RS485*4, CAN*2, RJ45(Ethernet)*2, 4G
Mechanical
- Protection: IP54/IK10
- Cooling: Natural Convection
- Installation: Ground-mounting
Compliance
- Safety: IEC 61439-1/-2
- EMC: IEC 50665, IEC 62311
產品亮點
Support website backend to manage and monitor ESS system status, including meter, switch, battery, inverter and EV charger.
Automatically switching from on-grid to off-grid when high-price period for saving electricity bills or switching to backup power while power stopping.
Automatically adjust power using from solar or stored battery power to prevent over the contract capacity and extra cost.
