直流充電設備

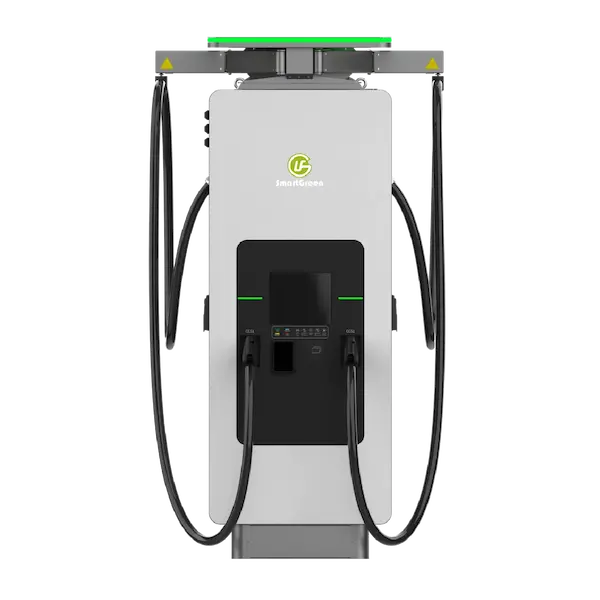

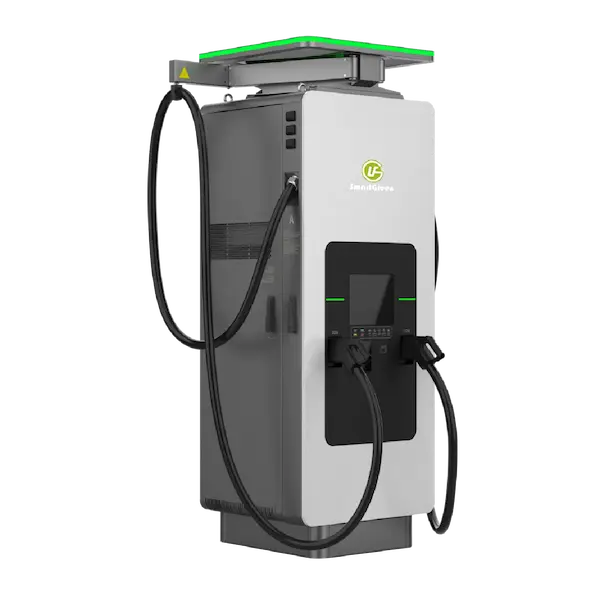

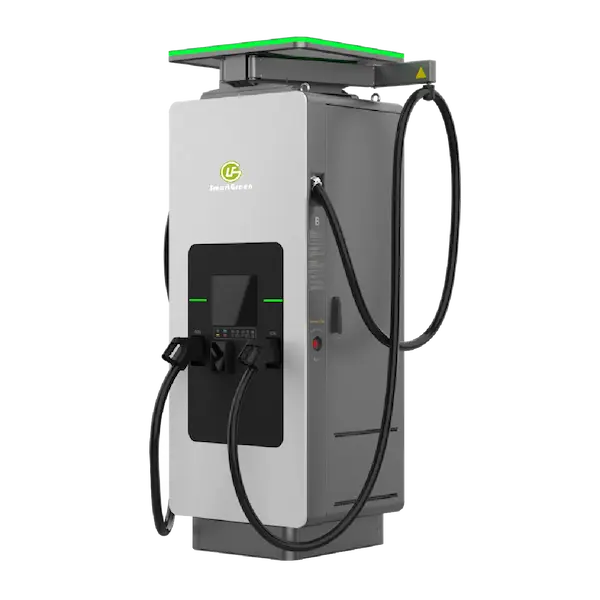

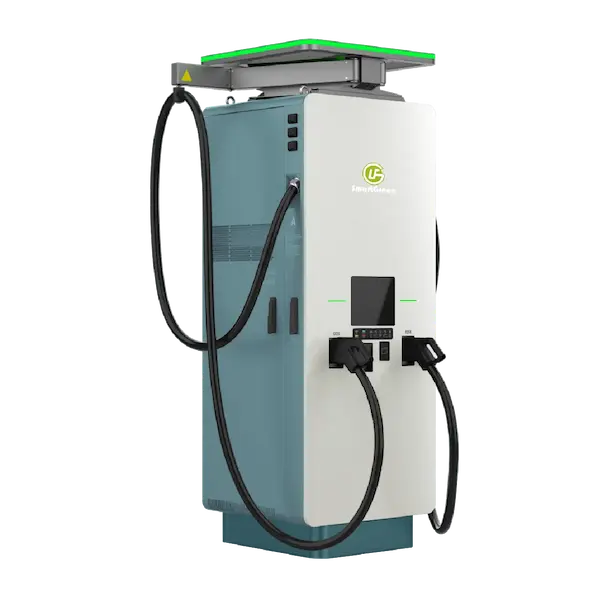

STI 180 - CCS1+CCS1
加拿大(CA)
- Model: CAO-018011-C00 | CA

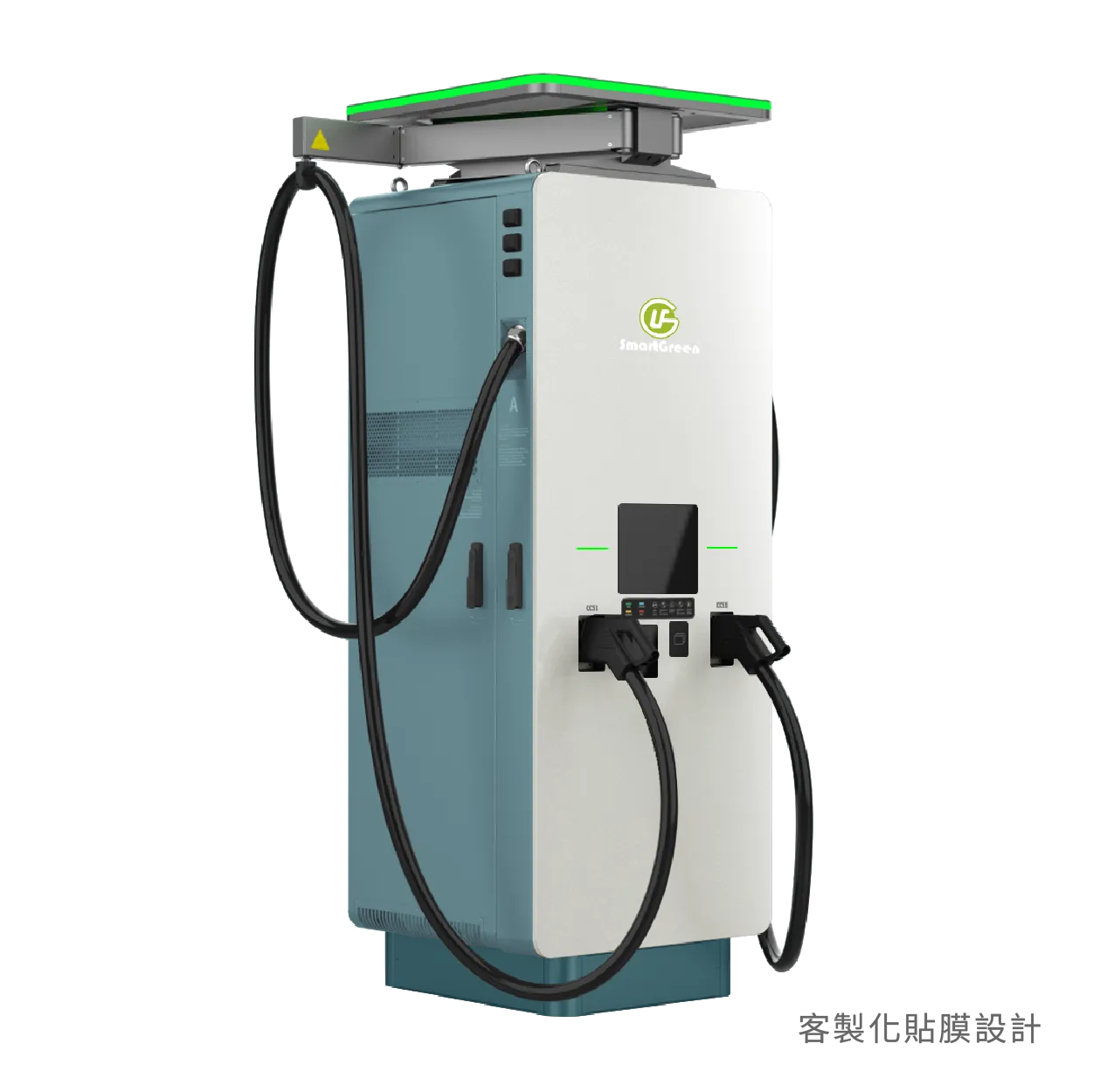

Appearance
- Dimension(WxHxD): 800 x 2235 x 750 mm (with cable manager)
- Weight: about 540kg (body)

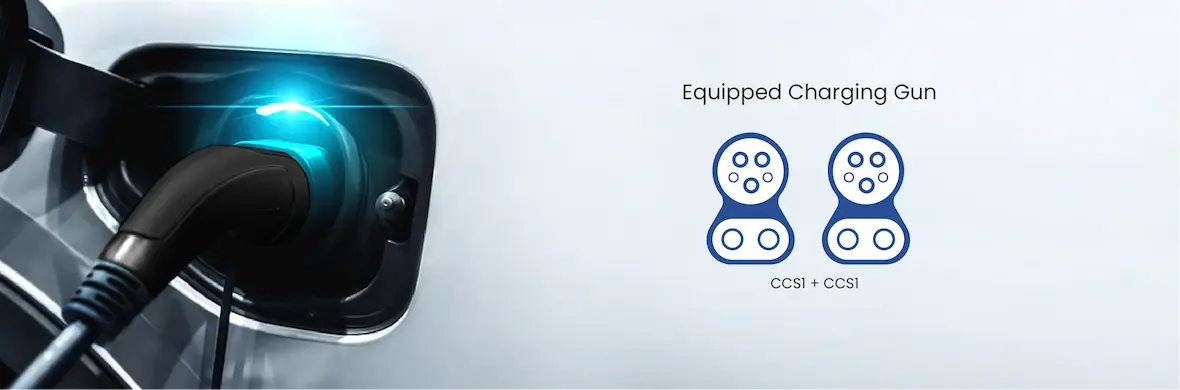

- Charging plug: CCS1 + CCS1 (2-plug), with 5m length cable
Input
- Input Connection: L1+L2+L3+N+PE, three-phase
- Input Voltage: 480Vac±10%, 60Hz
- Input Current: 250A Max
- Efficiency:95%
Output
- Output Power: 180kW Max
- Output Voltage: 200Vdc to 1000Vdc
- Output Current: 300A Max per plug
Interface
- Display: LED indicator and 10.4-inch touch screen
- User Authentication: Free/QR code/RFID card/POS terminal(optional)
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / DIN 70121, ISO 15118
Mechanical
- Protection: NEMA TYPE 3R/IK10 (Screen IK08)
- Cooling:Force air cooling
Compliance
- Certification: CSA, FCC, Energy Star
- Safety: UL 2202, UL 2231-1, UL 2231-2
- EMC: FCC part 15 Class A
產品亮點
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
User-friendly touch interface and cable management system for ADA Standards.
Support up to 180kW of power in small area and wide output voltage range from 200 to 1000Vdc.
