太陽能模組
SST
歐洲(EU)

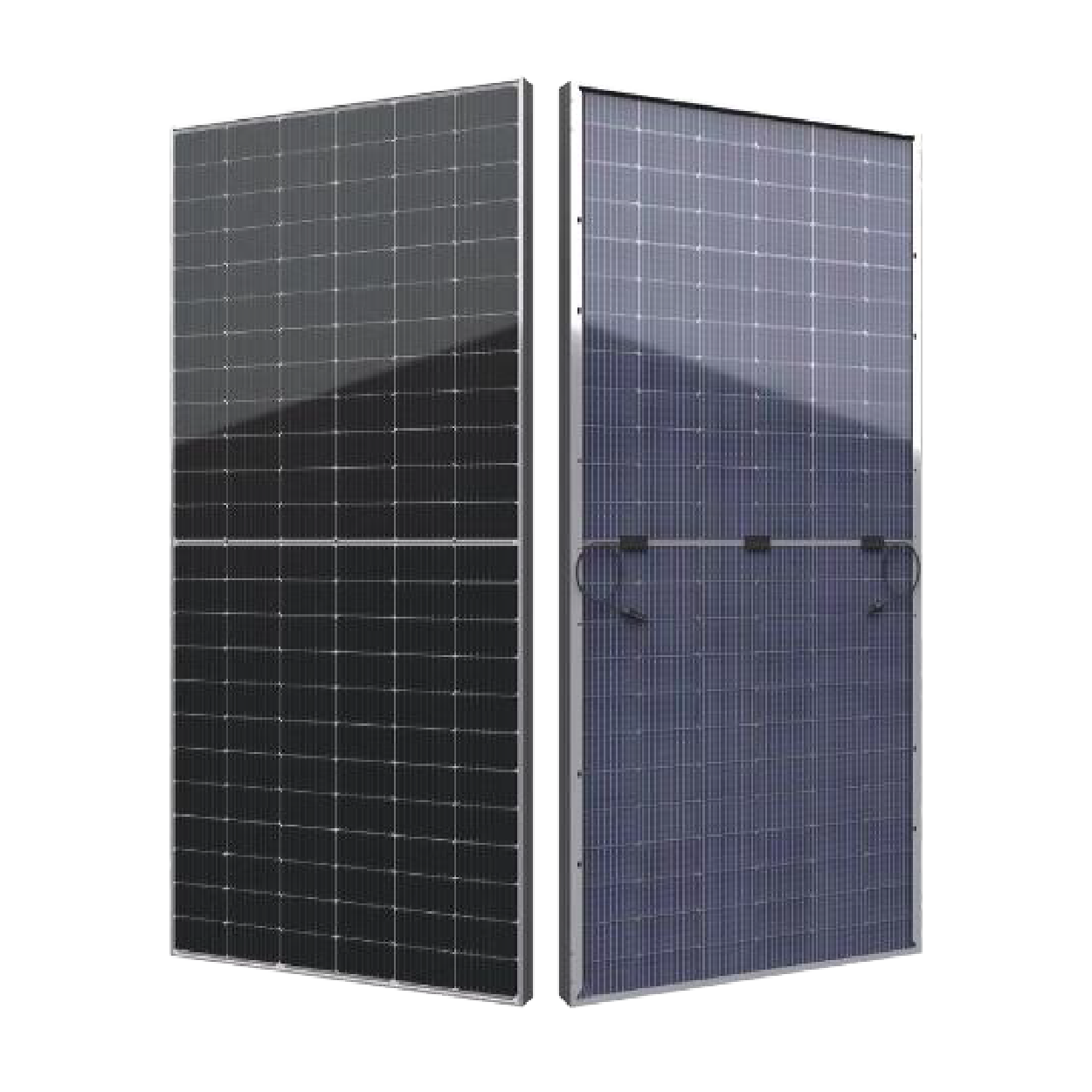

- Model: SST
Appearance
- Dimension(LxWxT): 2278 × 1134 × 30 mm
- Weight: about 27kg
Electrical (STC)
- Transfer Efficiency: 22.50%
- Max. working power: Pm: 580W
- Optimum working voltage: Vm: 42.45V
- Optimum working current: Im:13.69A
- Open circuit voltage: Voc: 50.81V
- Short circuit current: Isc: 14.34A
- Max. system voltage: 1500Vdc Max.
Connection Box
- Connector: compatible with MC4
- Protection: IP68
- Fuse rating current: 25A.
Mechanical
- Surface: High transparent anti-reflection coated tempered glass
- Intensity: 2400Pa(top)/ 5400Pa(bottom)
產品亮點
High wattage, multi-busbar half-cell battery technology, high-density packaging applications
Load resistance,full set verification for wind load of 2400 Pa and snow load of 5400 Pa
Maximum power: 580W, dimensions: 2278×1134×30 mm, weight:27kg
