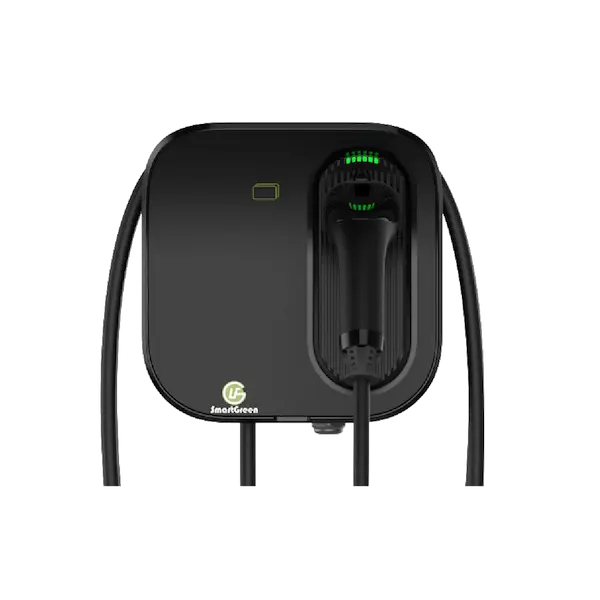

AC Charger
SAT 7 - Type2
Taiwan(TW)
- Model: CAC-000702-T00 | TW
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 4kg (body)

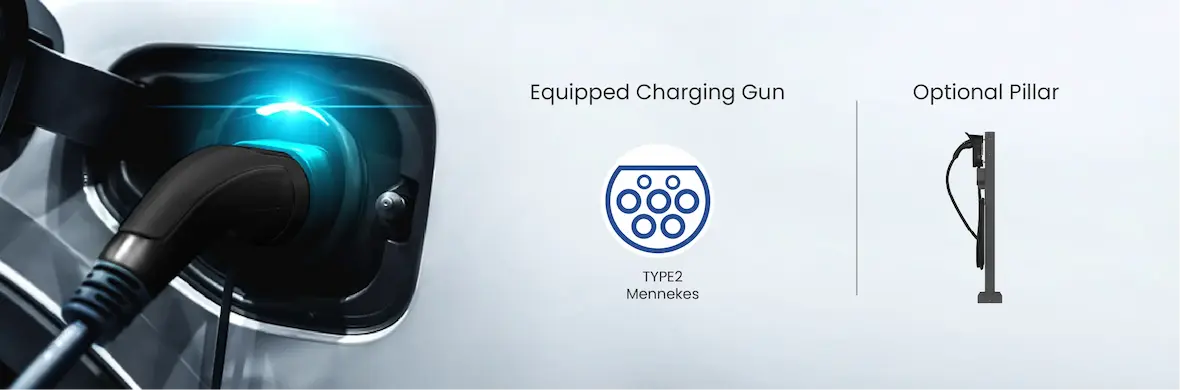

- Charging plug: TYPE2 (single), with 5m cable length
Input
- Input Connection: L1+L2+PE, single-phase
- Input Voltage: 220Vac±10%, 60Hz, single-phase
- Input Current: 32A Max
Output
- Output Power: 7kW
- Output Voltage: 220Vac±10%, 60Hz, single-phase
- Output Current: 32A Max
Interface
- Display: LED indicator
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: IP55/IK10
- Cooling: Natural Convection
Compliance
- Certification: VPC, NCC
- Safety: CNS 15511-1, CNS 15700-1/-2
- EMC: CNS 15511-21-2
Product Highlights
支援連接任何基於OCPP 1.6J協定的後端並進行遠端控制和監控。
支援多重電氣保護，符合國際驗證，確保用戶安全。
精簡的設計 - 小巧、輕量、節省空間，並易於維護。
