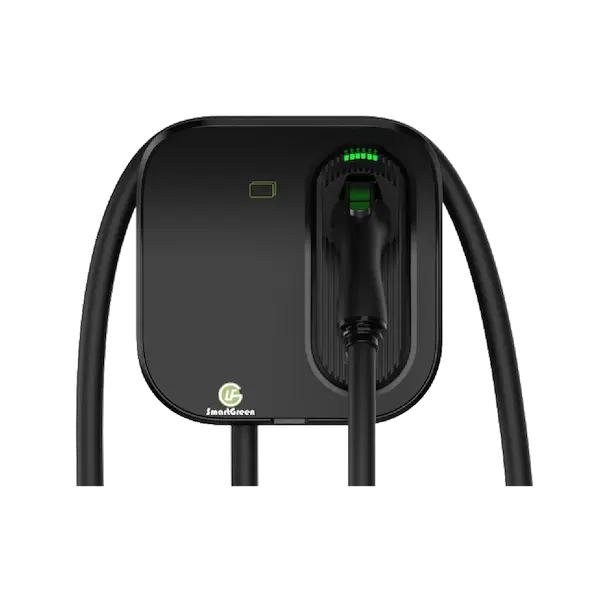

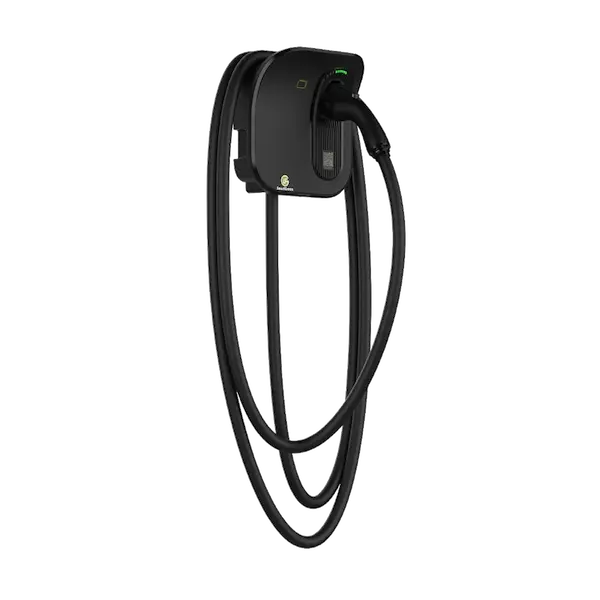

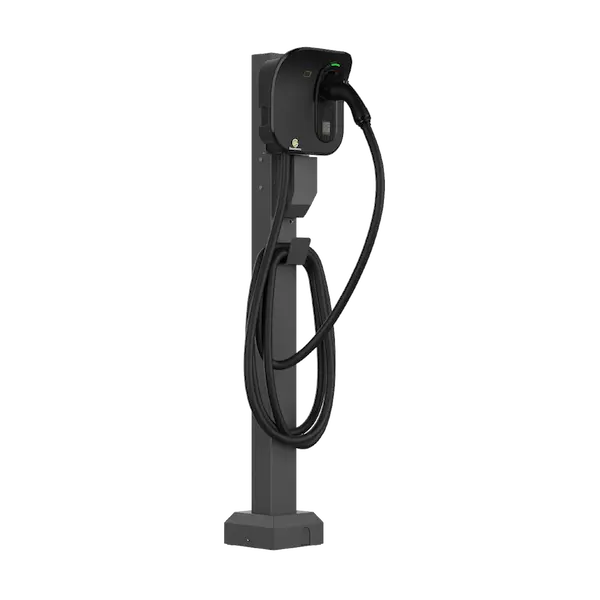

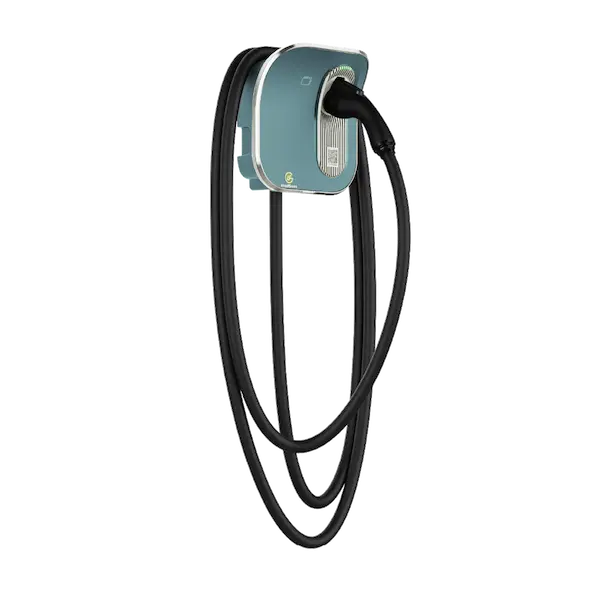

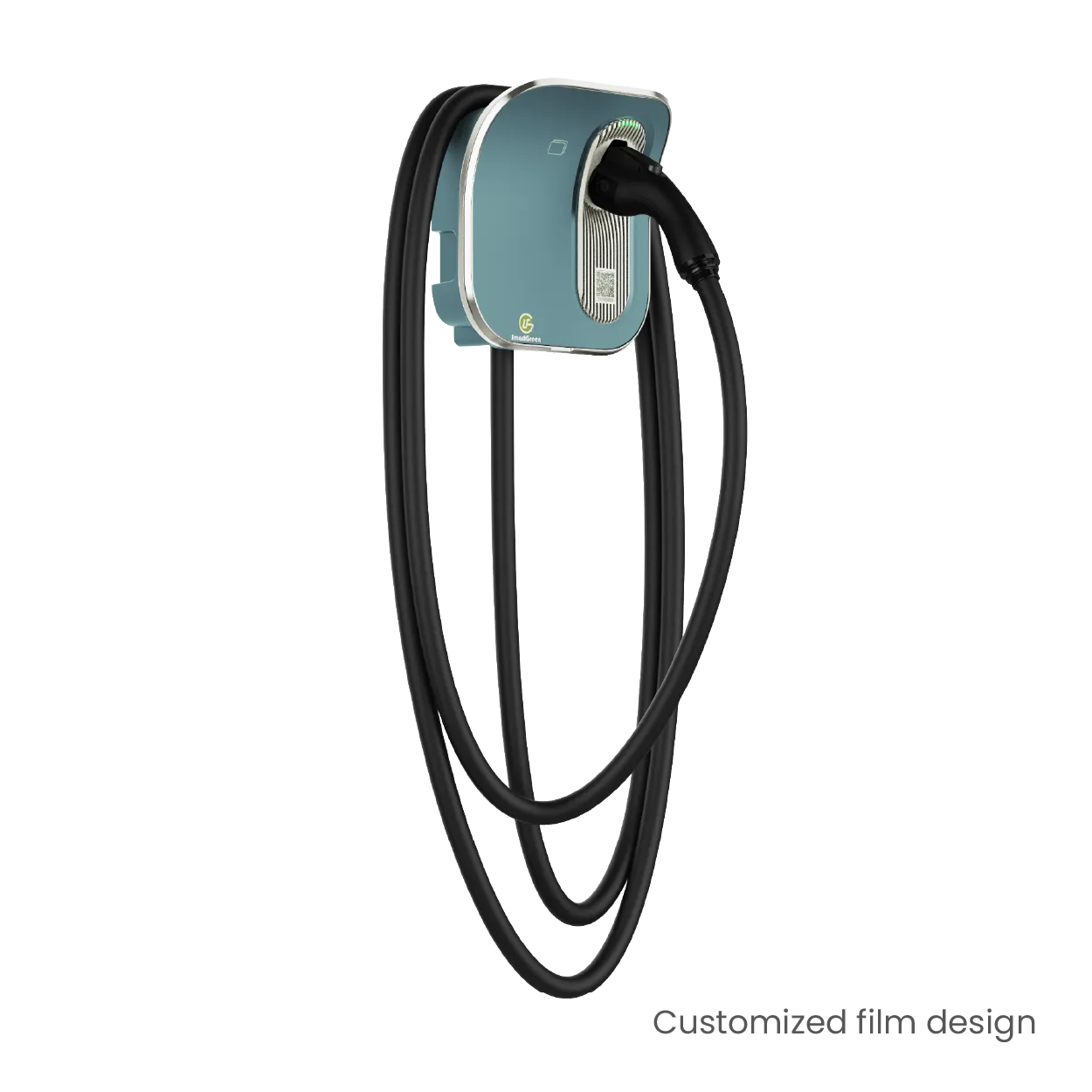

AC Charger
SAT 17.6 - Type1
Taiwan(TW)
- Model: CAC-001801-T00 | TW
Appearance
- Dimension(WxHxD): 280 x 280 x 148 mm (body)
- Weight: about 5.6kg (body)
- Charging plug: TYPE1 (single), with 5m cable length
Input
- Input Connection: L1+L2+PE, single-phase
- Input Voltage: 220Vac±10%, 60Hz, single-phase
- Input Current: 80A Max
Output
- Output Power: 17.6kW
- Output Voltage: 220Vac±10%, 60Hz, single-phase
- Output Current: 80A Max
Interface
- Display: LED indicator
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / Control pilot
Mechanical
- Protection: IP55/IK10
- Cooling: Natural Convection
Compliance
- Certification: VPC, NCC
- Safety: CNS 15511-1, CNS 15700-1/-2
- EMC: CNS 15511-21-2
Product Highlights
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
Support multiple electrical protection and comply with international verification to ensure user safety.
Compact and light design for tiny space and easy to install and maintain.

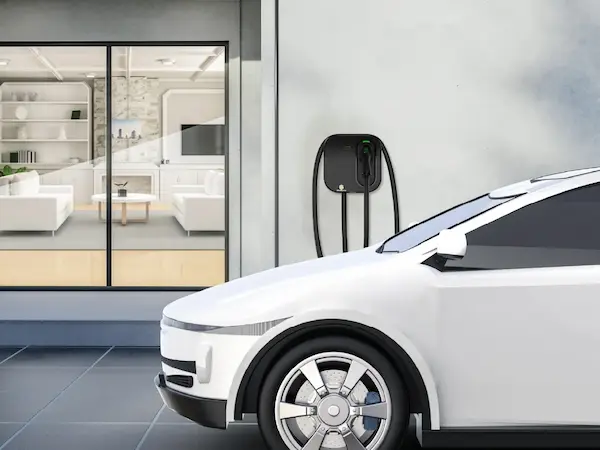

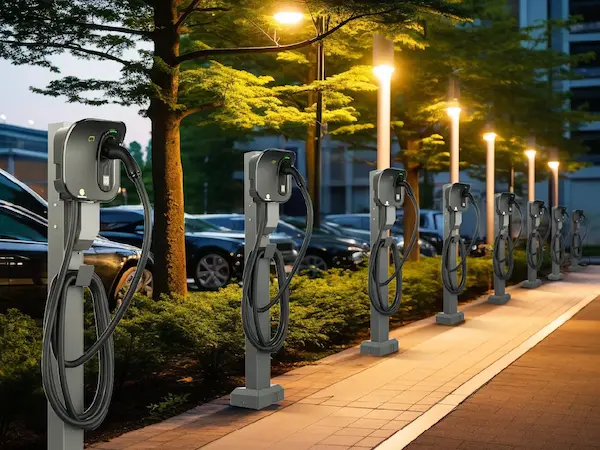

Applicable Locations
