家用儲能設備
Battery - SHB 20 - UL
台灣(TW)
- Model: EHB-002000-TU0 | TW

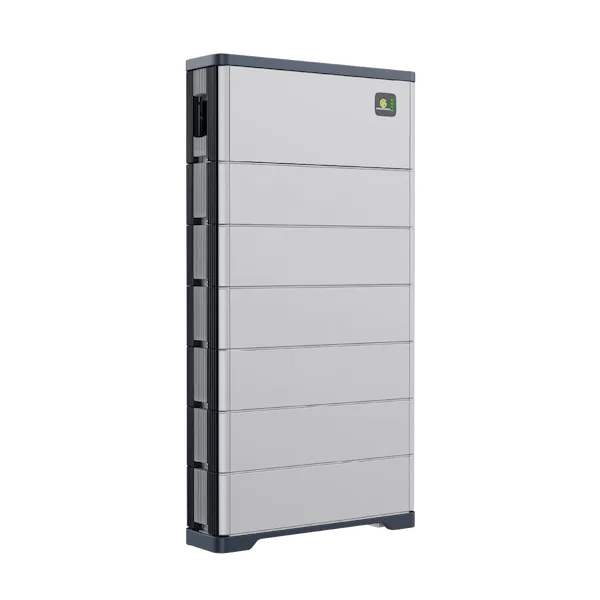

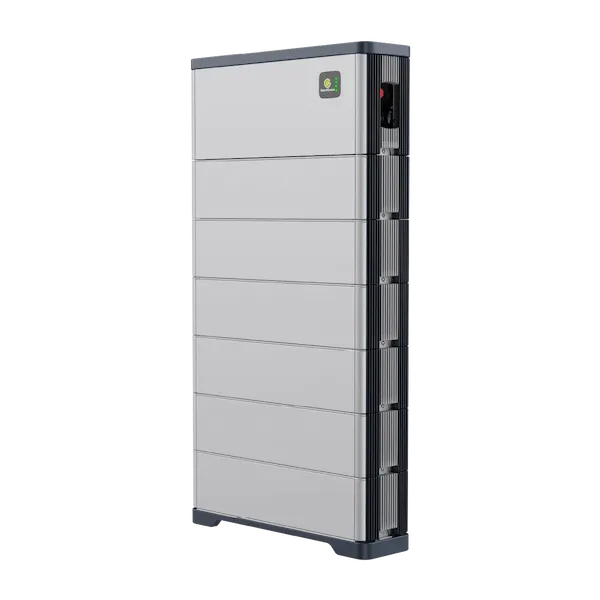

Appearance

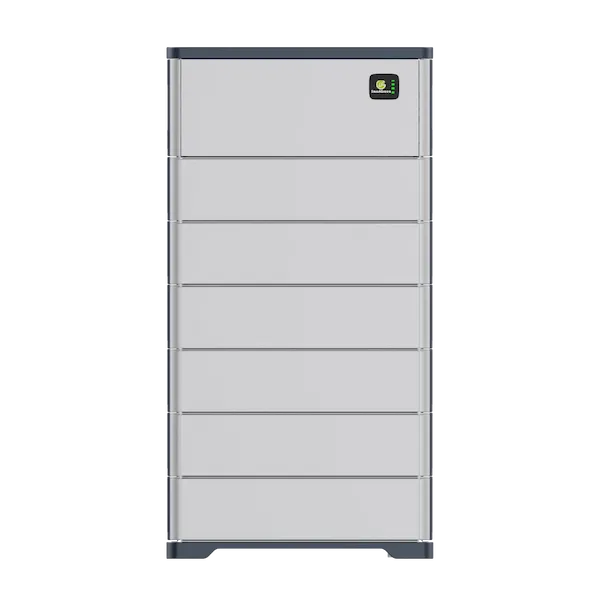

- Dimension(WxHxD): 799 x 1533 x 218 mm
- Weight: about 196kg (battery modules *6)
Battery Module
- Installed Capacity: 20.7kWh/ LFP
- DOD: >90%
- Working Voltage for split-phase: 380Vdc to 550Vdc
- Working Power: 9.7kW
- Working Current: 28A Max.
- Charging/Discharge Rate: 0.5 C
Interface
- Communication: RS485
- Compatible: SHP series inverters
Mechanical
- Protection: IP55
- Cooling: Natural Convection

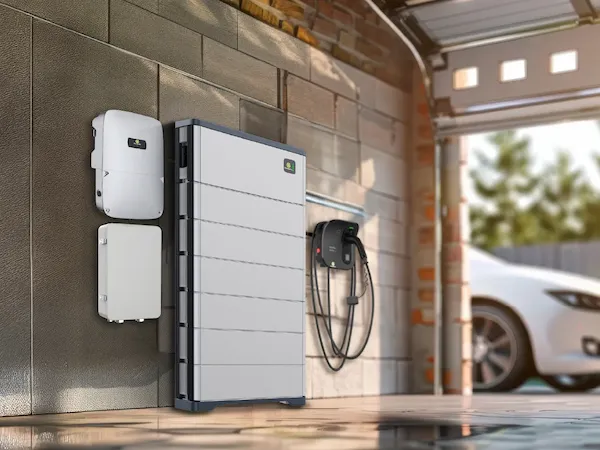

- Installation: Floor-mounting
Compliance
- Safety: IEC 62619, CNS 62619
- EMC: IEC 61000-6-1
產品亮點
Compact design for transportation and expansion and modular design for installation and maintenance.

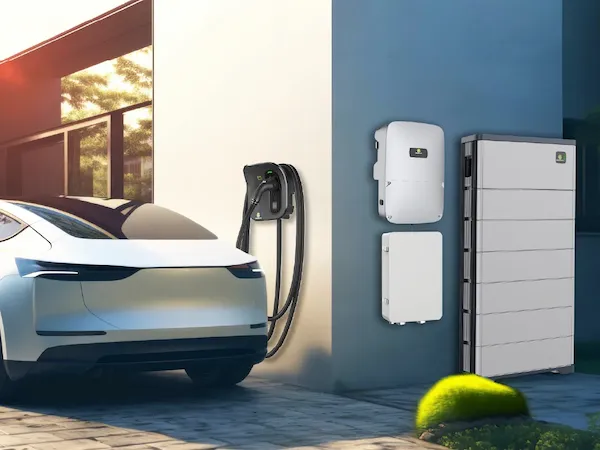

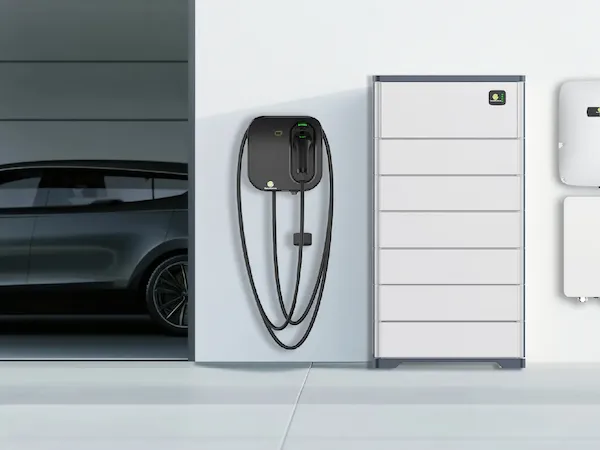

Automatically store energy from solar power or grid power during low-price period and supply the power to house needs at any time.

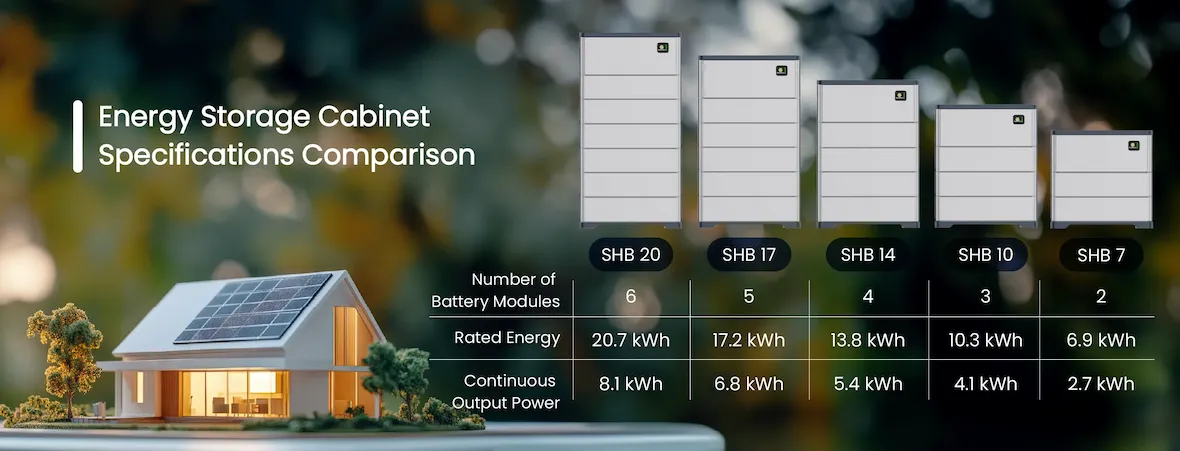

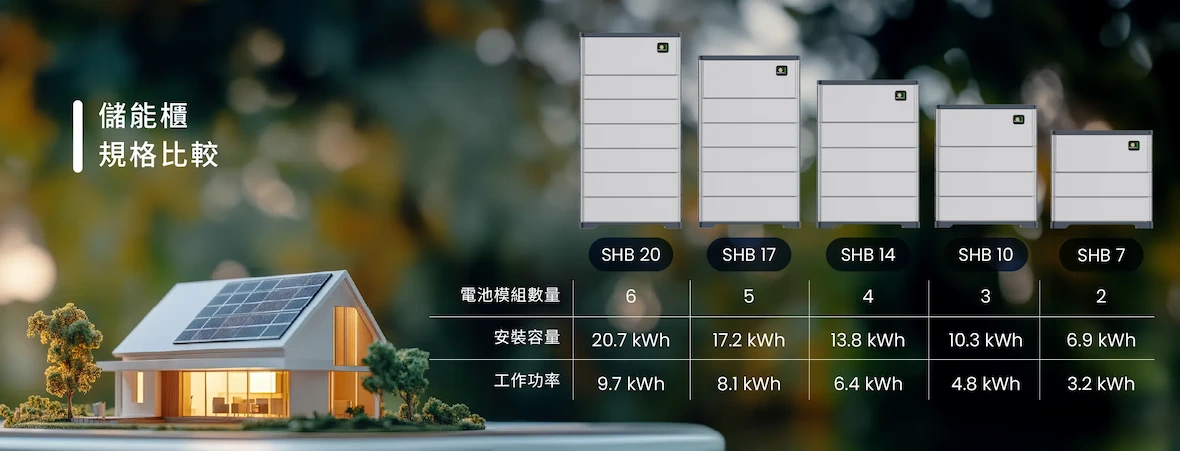

Flexible to choose different quantities of battery modules based to user requirements of capacity and space.
