太陽能 / 混合式逆變器
Hybrid INV - SHP 8-L
台灣(TW)
- Model: EHP-00080L-TU0 | TW

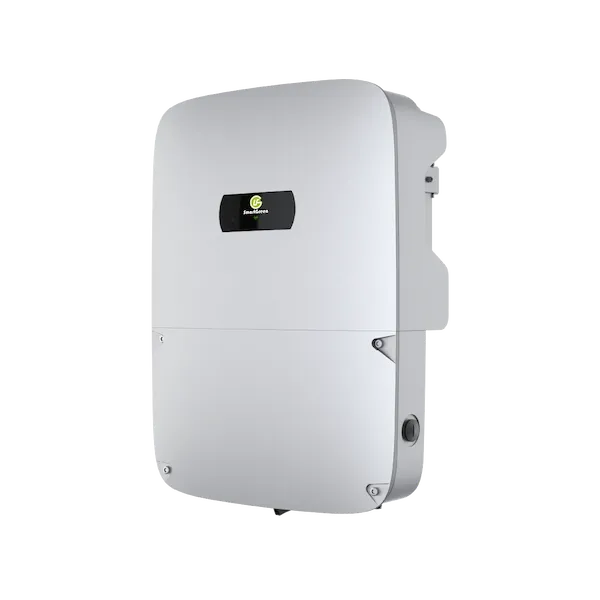

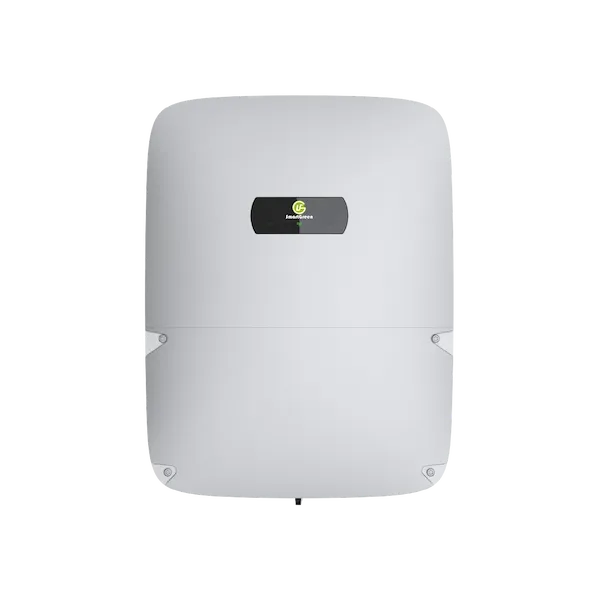

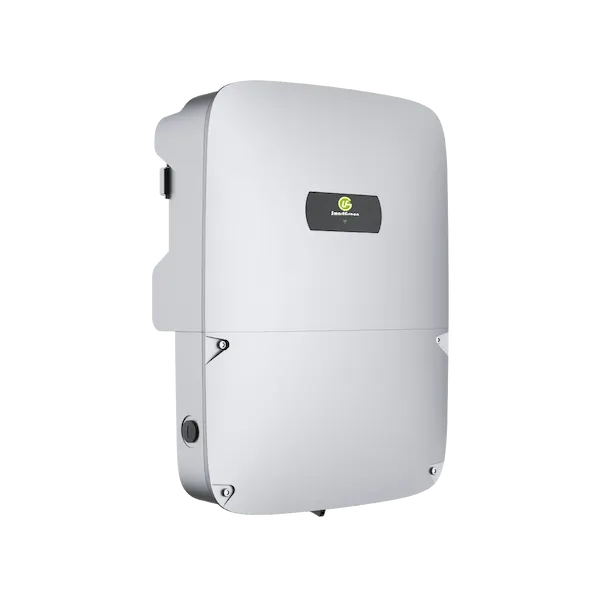

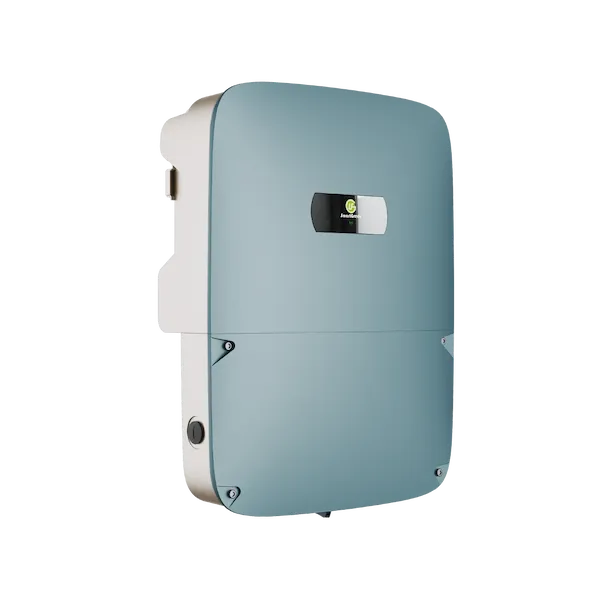

Appearance
- Dimension(WxHxD): 500 x 650 x 178 mm
- Weight: about 24kg
Battery port
- Max. Charge/Discharge Power: 7.6 kW
- Working Voltage: 380Vdc to 450Vdc
- Working Current: 13.5A Max.
- Peak Efficiency: 97.4%
- Battery Capacity: Support 6.9kWh to 20.7 kWh/ LFP
PV port
- Input Voltage: 600Vdc Max.
- MPPT Working Voltage: 80Vdc to 500Vdc
- MPPT Working Current: 13.5A per loop Max.
- Number of MPPT: 3 loops
AC port
- Working Power: 7.04 kVA
- Working Voltage: 110/220Vac, 60Hz
- Working Current: 32A Max.
- Connection: L1+L2+N+PE, split-phase
Interface
- Communication: RS485, Wi-Fi+BT (dongle)
- Smart Control: Supported APP
Mechanical
- Protection: IP65
- Cooling: Natural Convection
- Installation: Wall-mounting
Compliance
- Safety: IEC 62109-1/-2, CNS 15426-1/-2 (on going)
- EMC: IEC 61000-6-1/-3, IEC 62920
產品亮點
Support APP remote monitor and control and record consumption of power from solar or grid for home or small commercial users.
Highly intelligent control to limit maximum using power from grid and adjust solar or battery power to home needs based on the schedule or setting for saving grid power and electricity bills.
Highly integrated with EMS and inverter for transferring power from solar or battery to grid power for daily or any time needs.
