Residential ESS
Battery
Europe(EU), Taiwan(TW), Canada(CA)

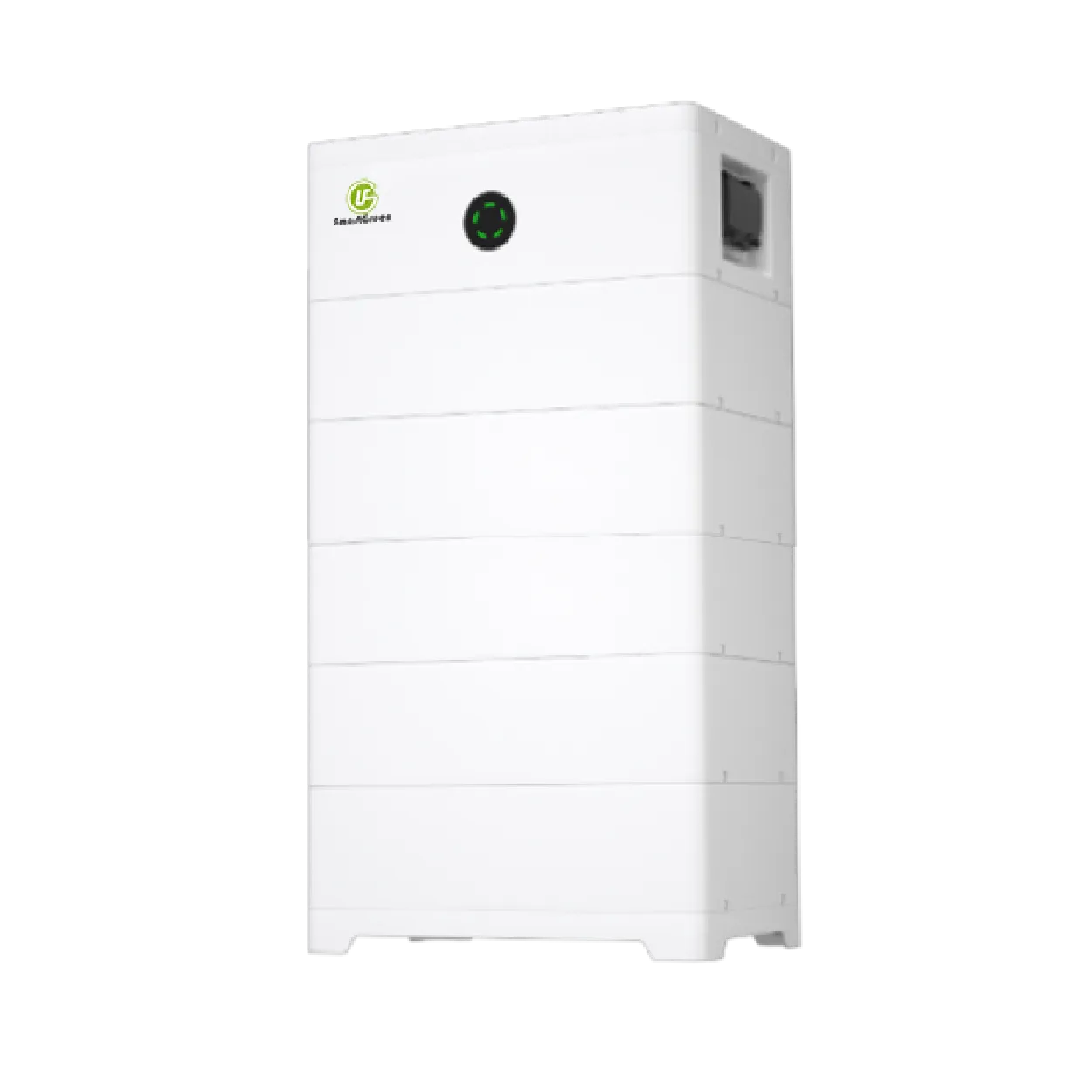

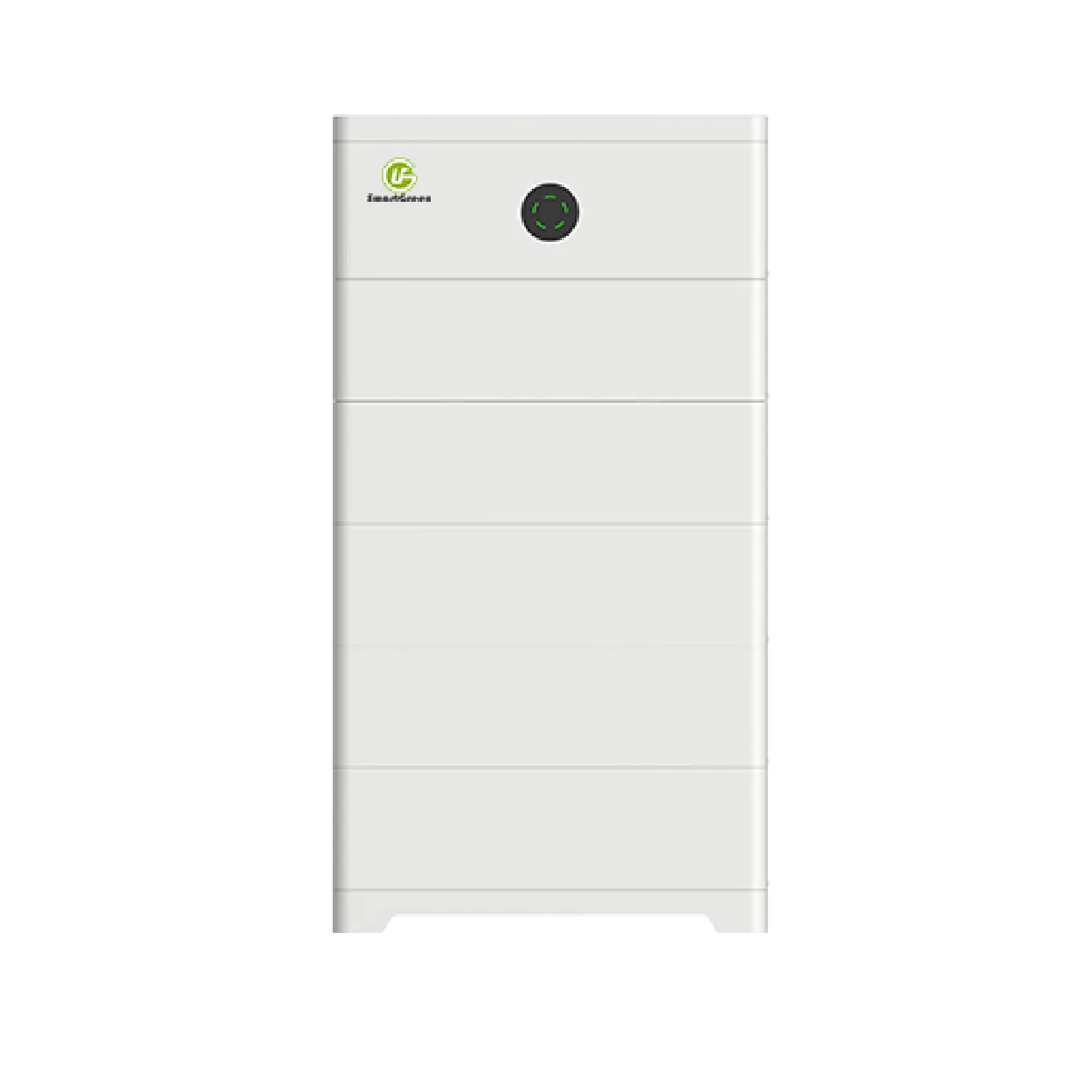

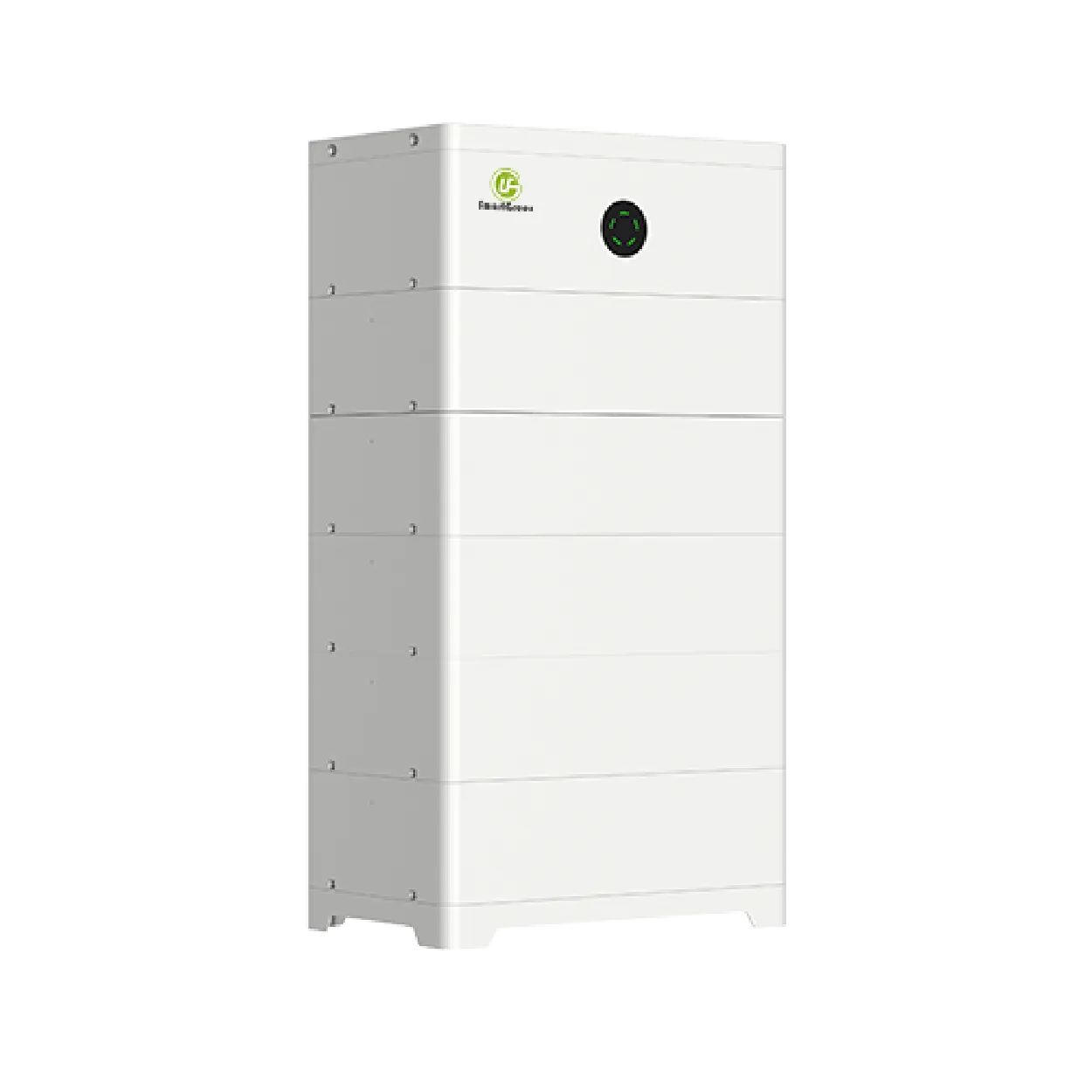

Appearance
- Series box dimensions(WxHxD): 600 x 225 x 376 mm
- Base dimensions(WxHxD): 600 x 60 x 376 mm
- Series box weight: about 18.5 kg
- Base weight: about 4.7 kg
Battery Module
- Battery module dimensions (WxHxD): 600 x 168 x 376 mm
- Battery module weight: about 46 kg / 47.1 kg (with optimizer)
- Nominal energy:10.2 kWh / 15.3 kWh / 20.4 kWh / 25.6 kWh / 30.7 kWh / 35.8 kWh / 40.9 kWh / 46.0 kWh / 51.2 kWh / 56.3 kWh / 61.4 kWh / 66.5 kWh
- Depth of discharge(DOD): 100%
- Operating voltage: 85~116 V / 128~174 V / 170~232 V / 212~289 V / 255~347 V / 397~405 V / 340~463 V / 382~520 V / 424~578 V / 467~636 V / 509~694 V / 552~750 V
- Rated charge/ discharge power: 6.1 kW / 9.2 kW / 12.3 kW / 15.4 kW / 18.4 kW / 21.5 kW / 24.6 kW / 27.6 kW / 30.7 kW / 33.8 kW / 36.9 kW / 39.9 kW
- Recommend charge / discharge current: 60A (70A Max.)
Interface
- Communication interfaces: CAN2.0 / RS485
Mechanical
- Ingress protection: IP66
- Cooling: Natural cooling
- Installation: Floor-mounting
Compliance
- Safety: IEC62619, IEC62040, EN62477, VDE2510
Product Highlights
Stable & Reliable: LFP cells paired with a high-performance processor, IP66 protection rating, and precise aerosol fire suppression system.
Smart Management: Supports remote fault diagnosis, upgrades, and maintenance; battery heating technology withstands wide temperature ranges; optional 2-in-1 parallel cabling enables convenient expansion, boosting effective capacity by up to 10%.
Flexible Adaptability: Compact, stackable design for easy installation; supports direct battery-to-battery expansion with plug-and-play mixing of new and old batteries, ensuring lossless capacity expansion.

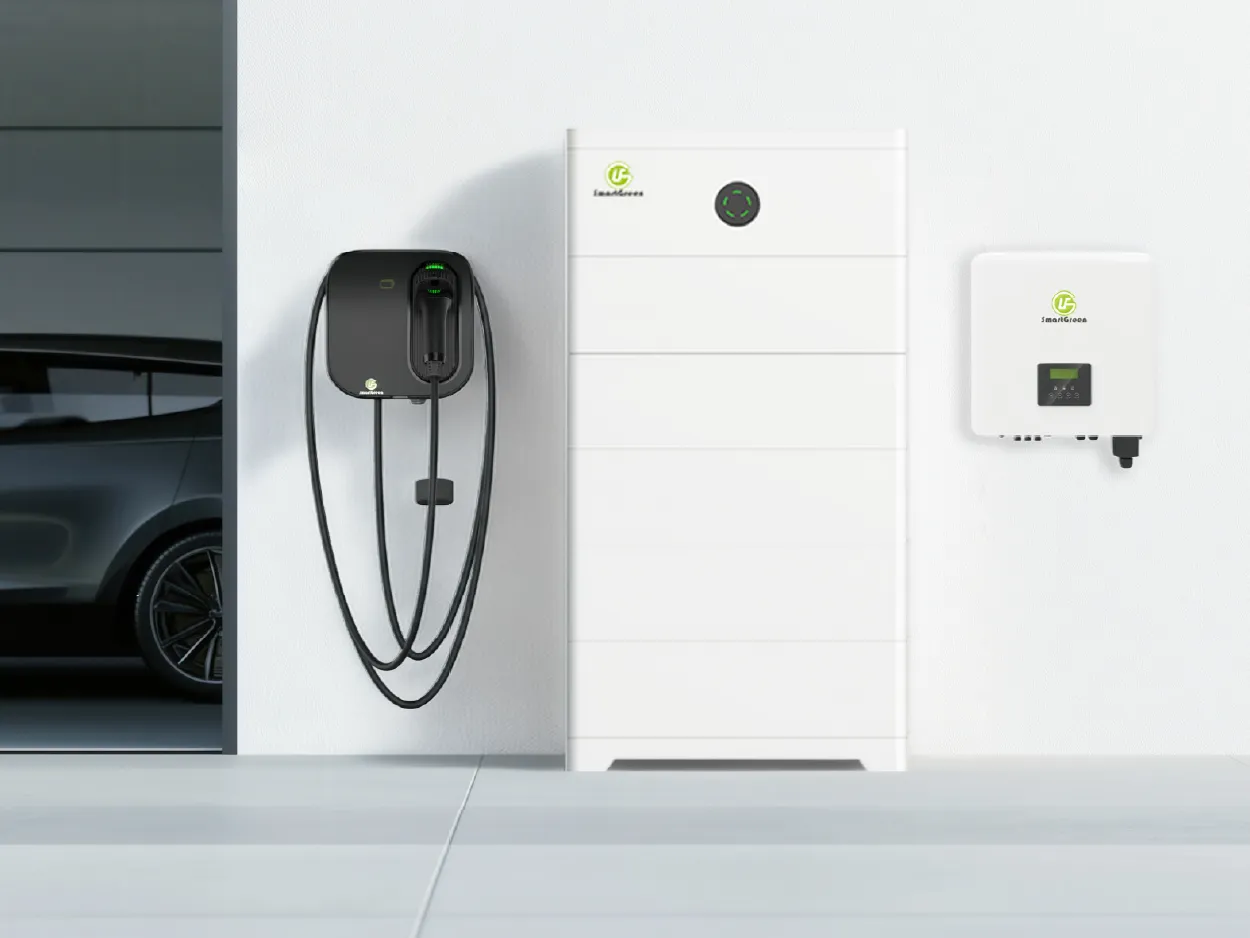

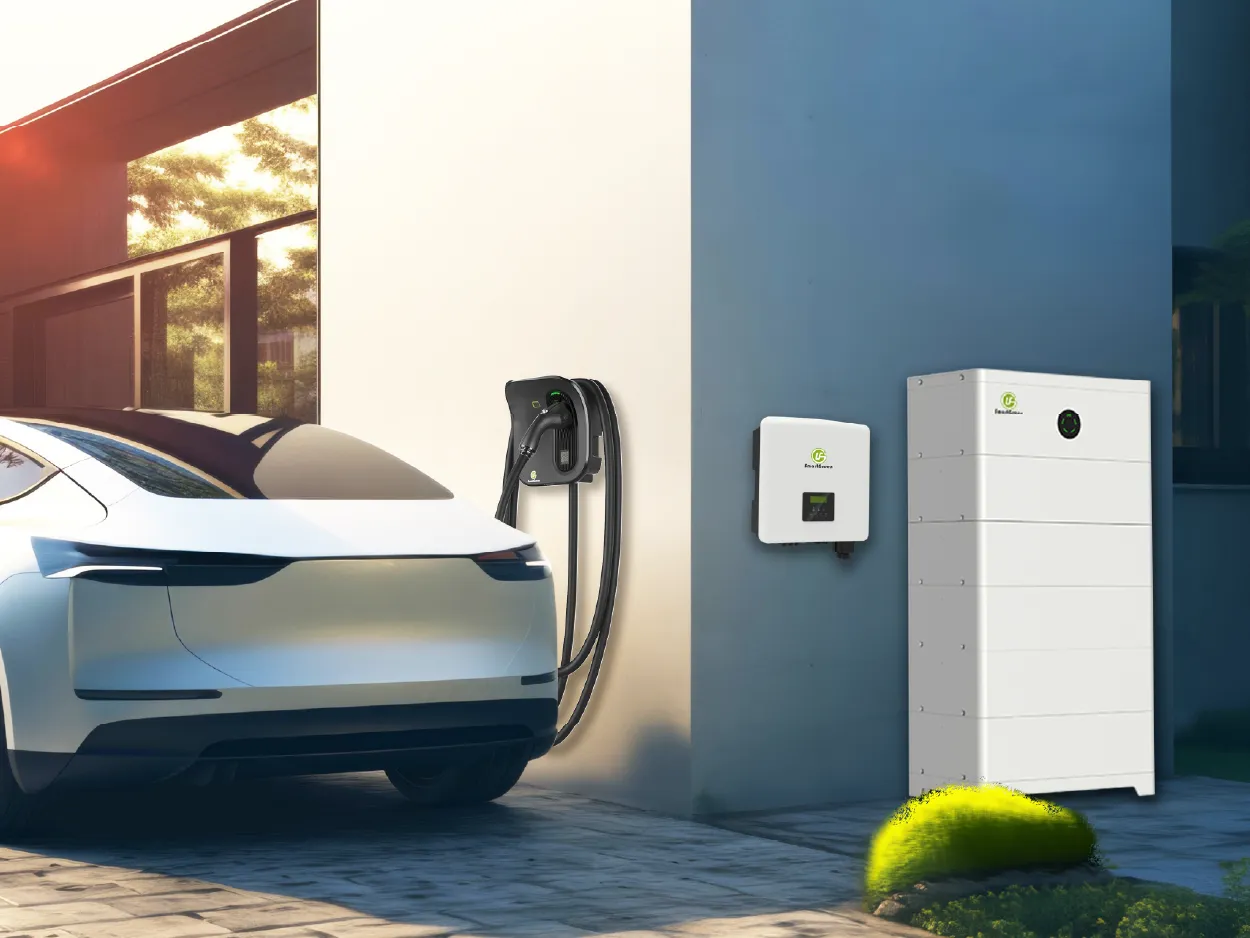

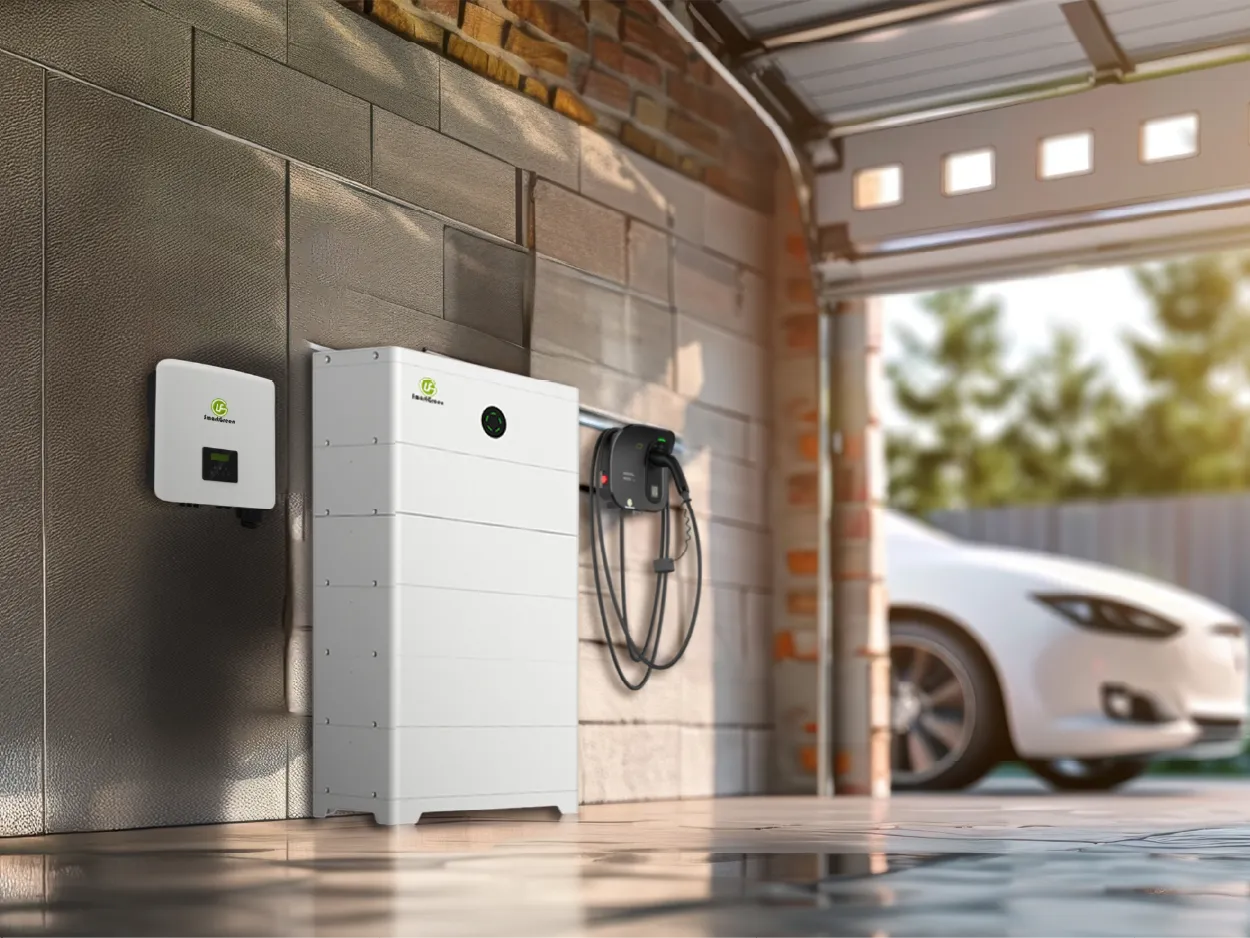

Applicable Locations
