Residential ESS
Battery
Europe(EU), Taiwan(TW), Canada(CA)

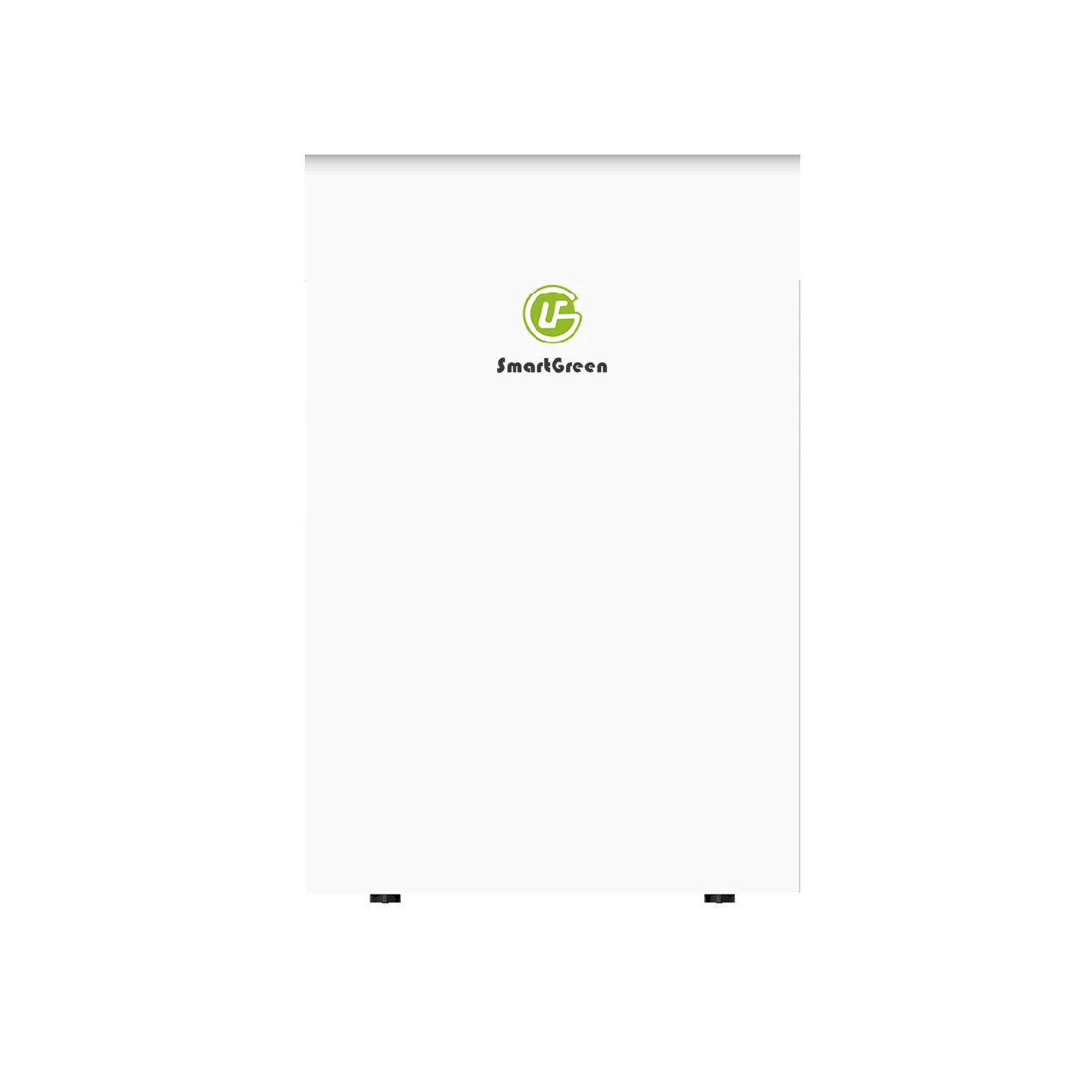

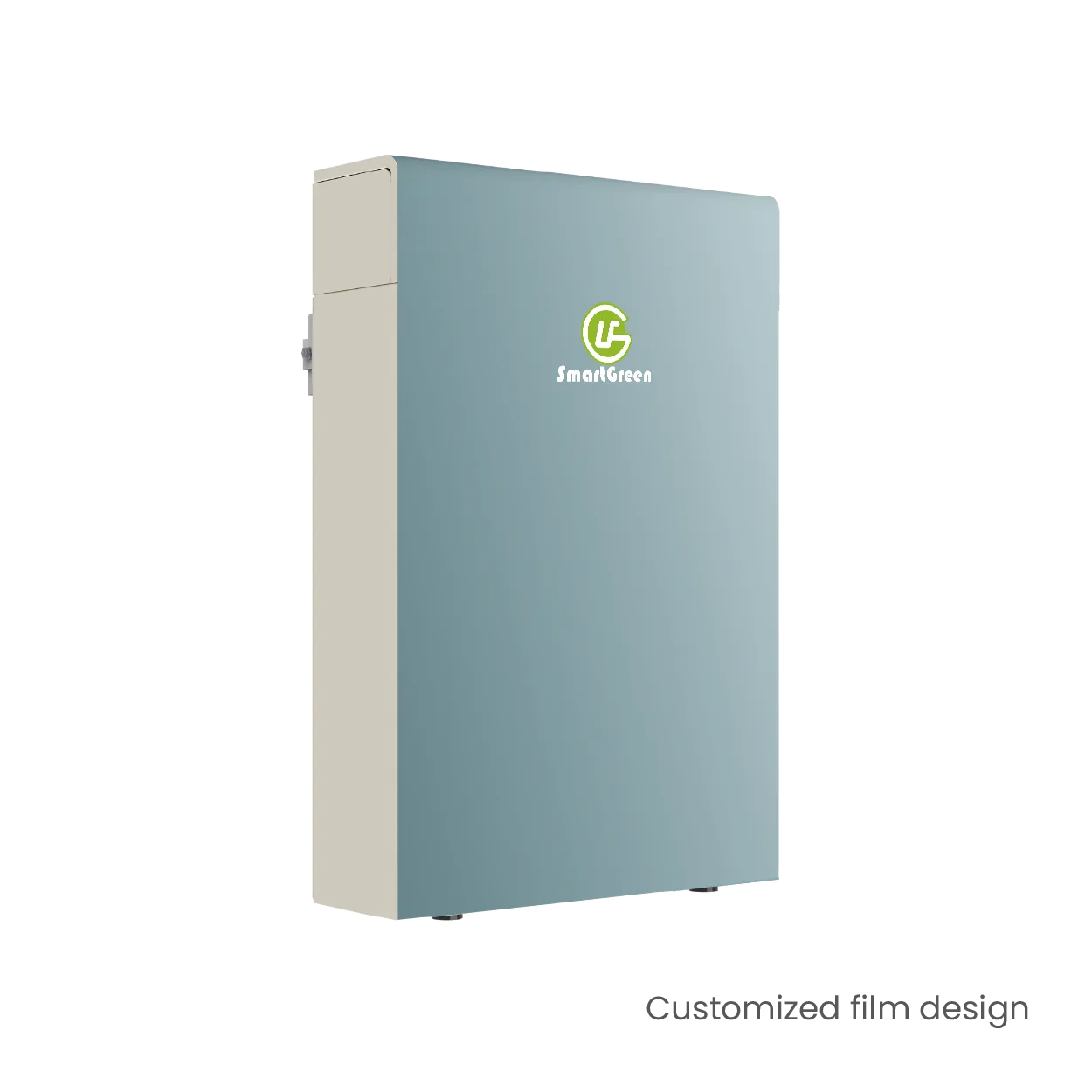

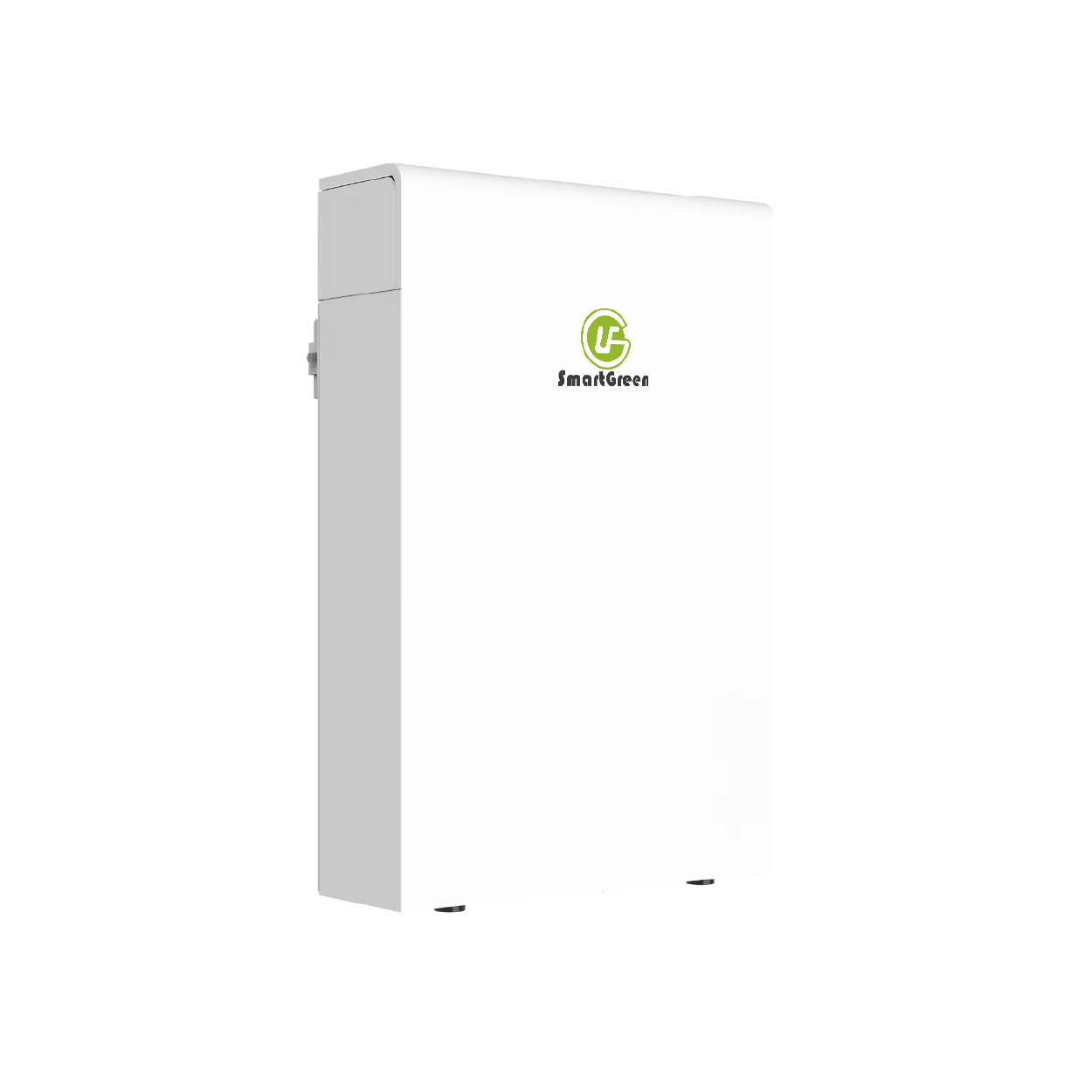

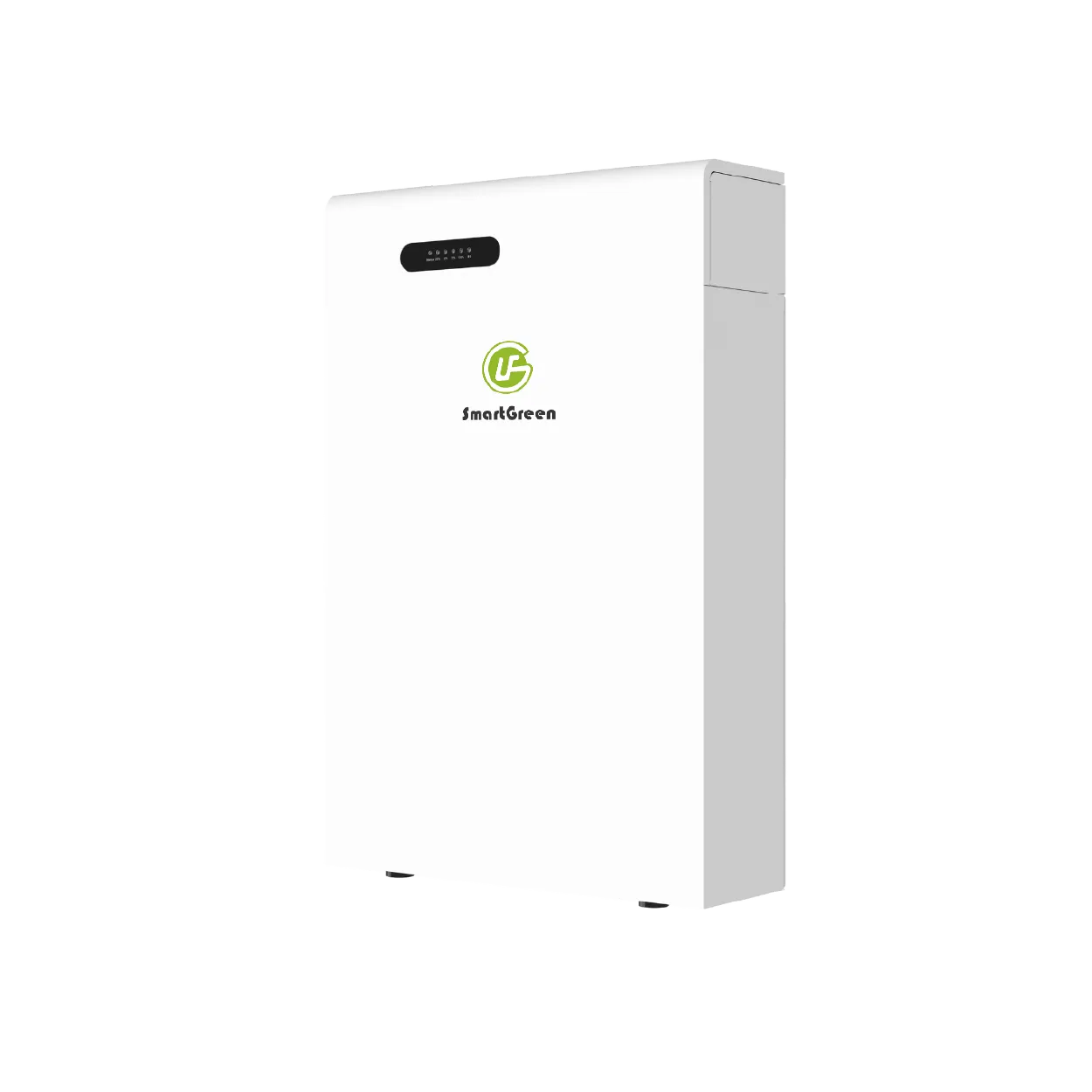

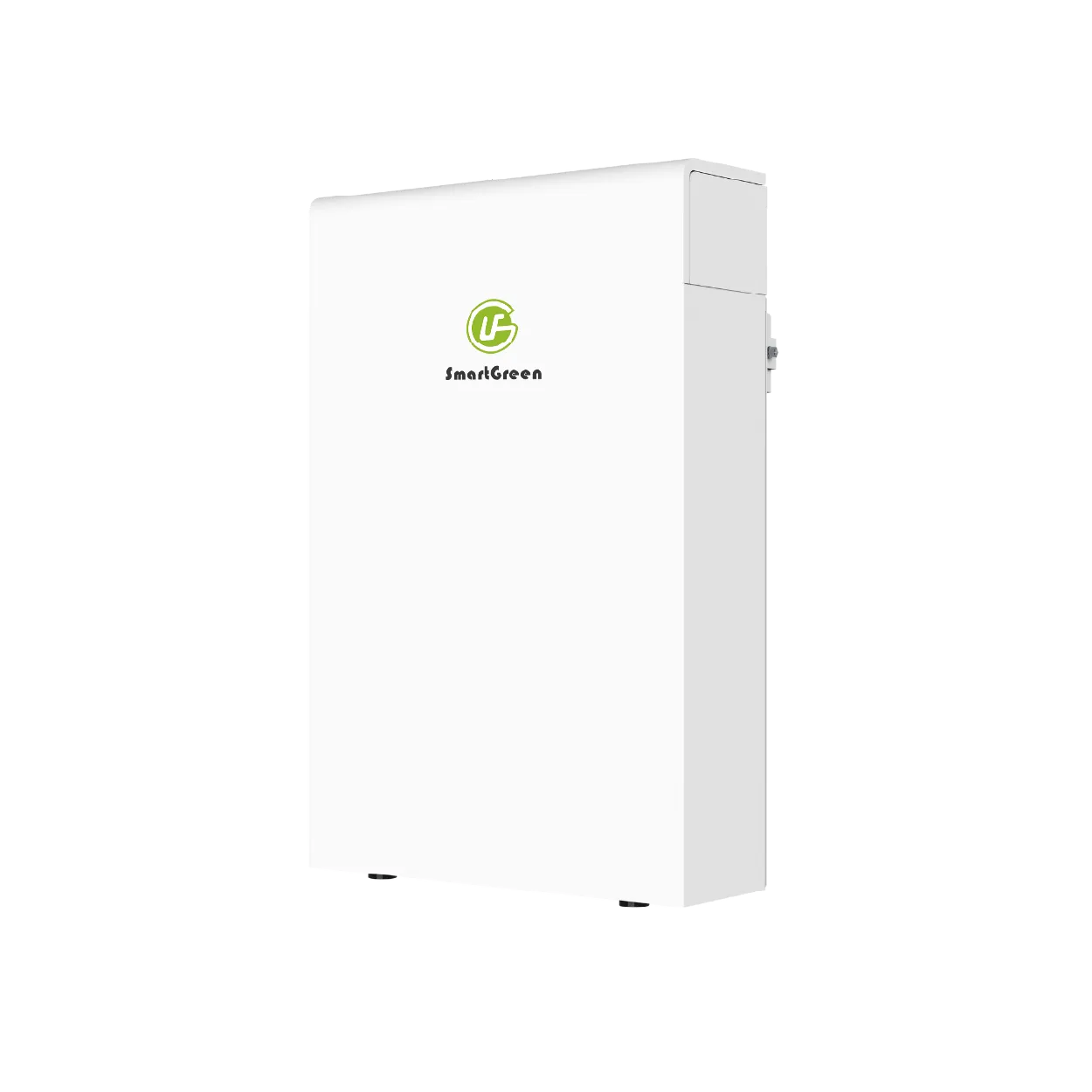

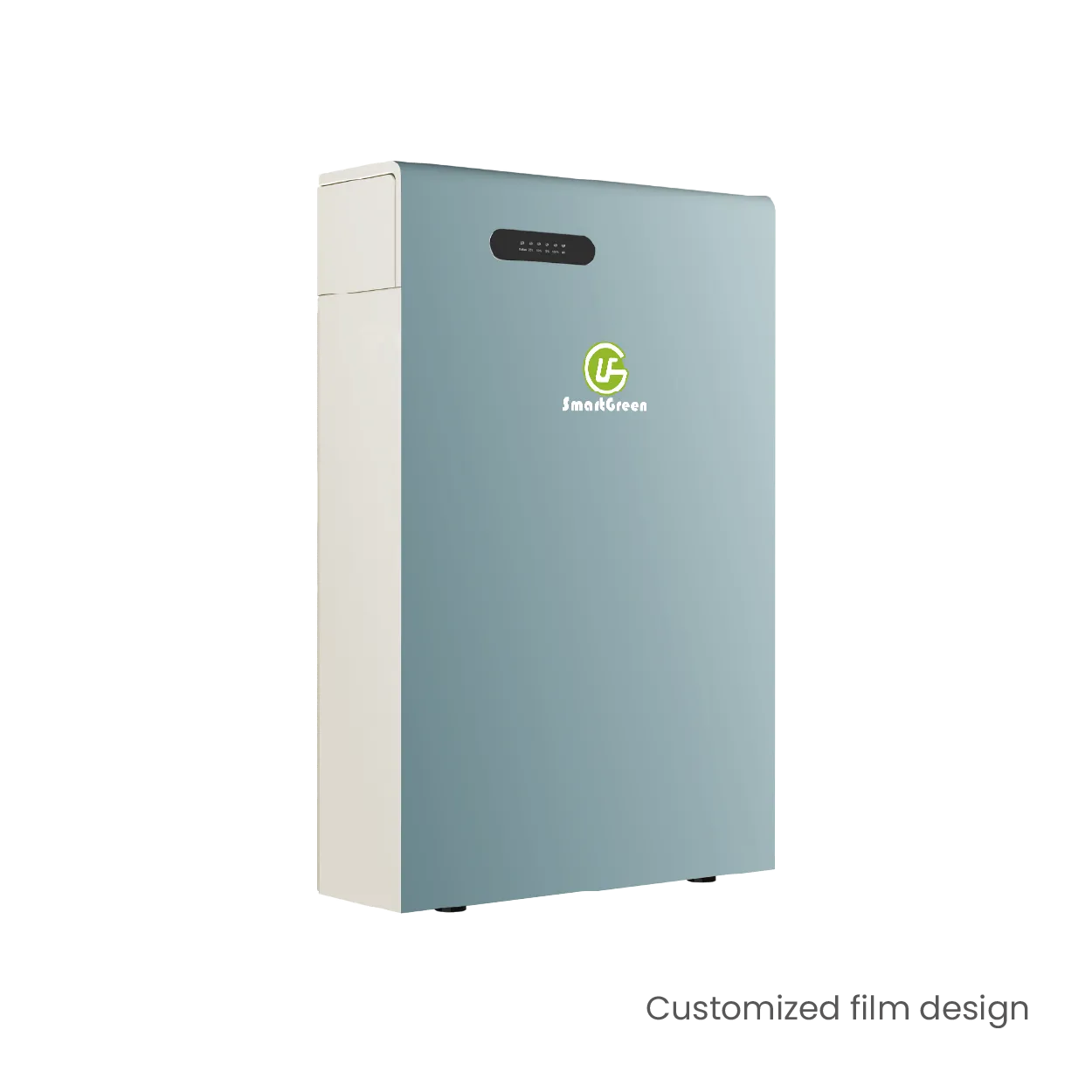

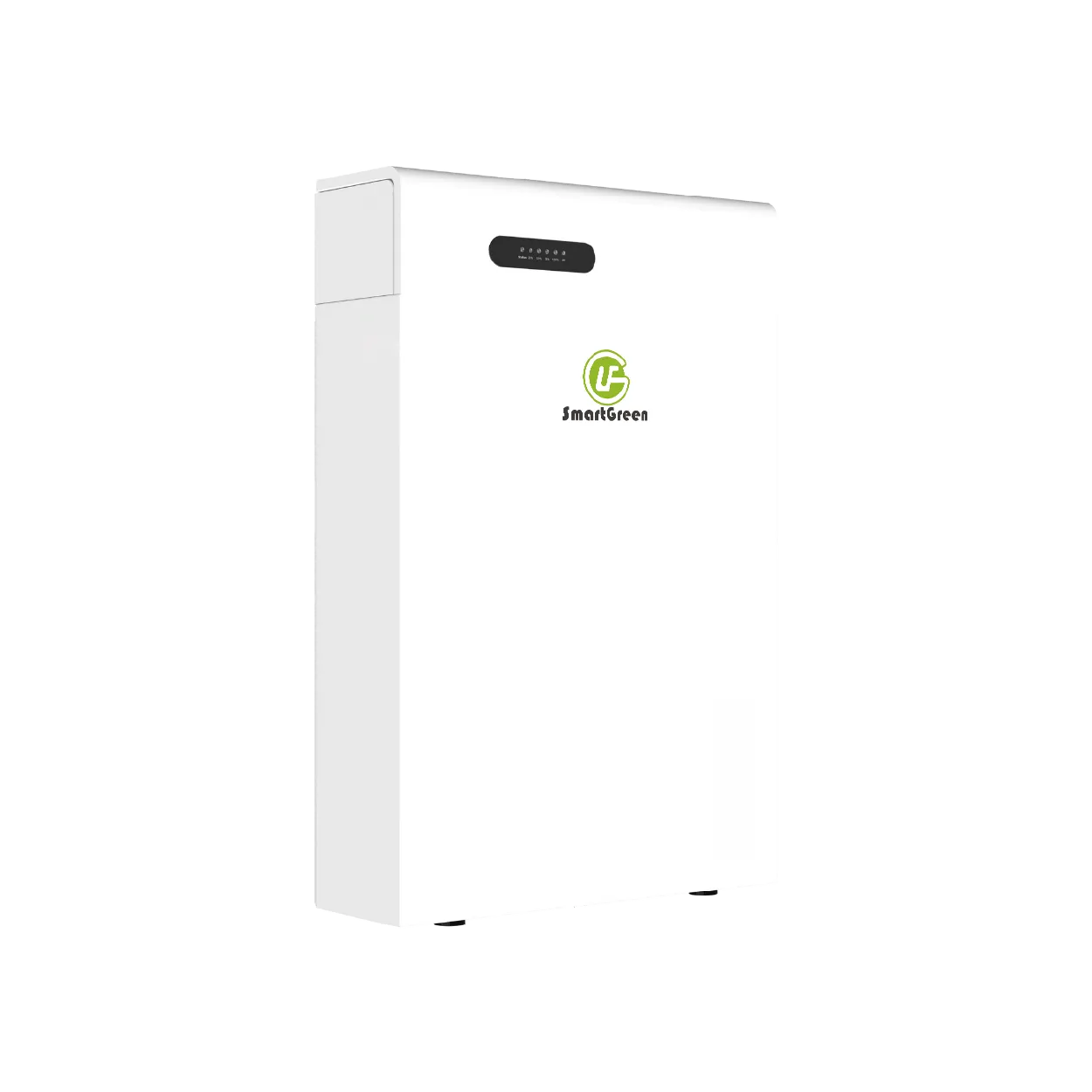

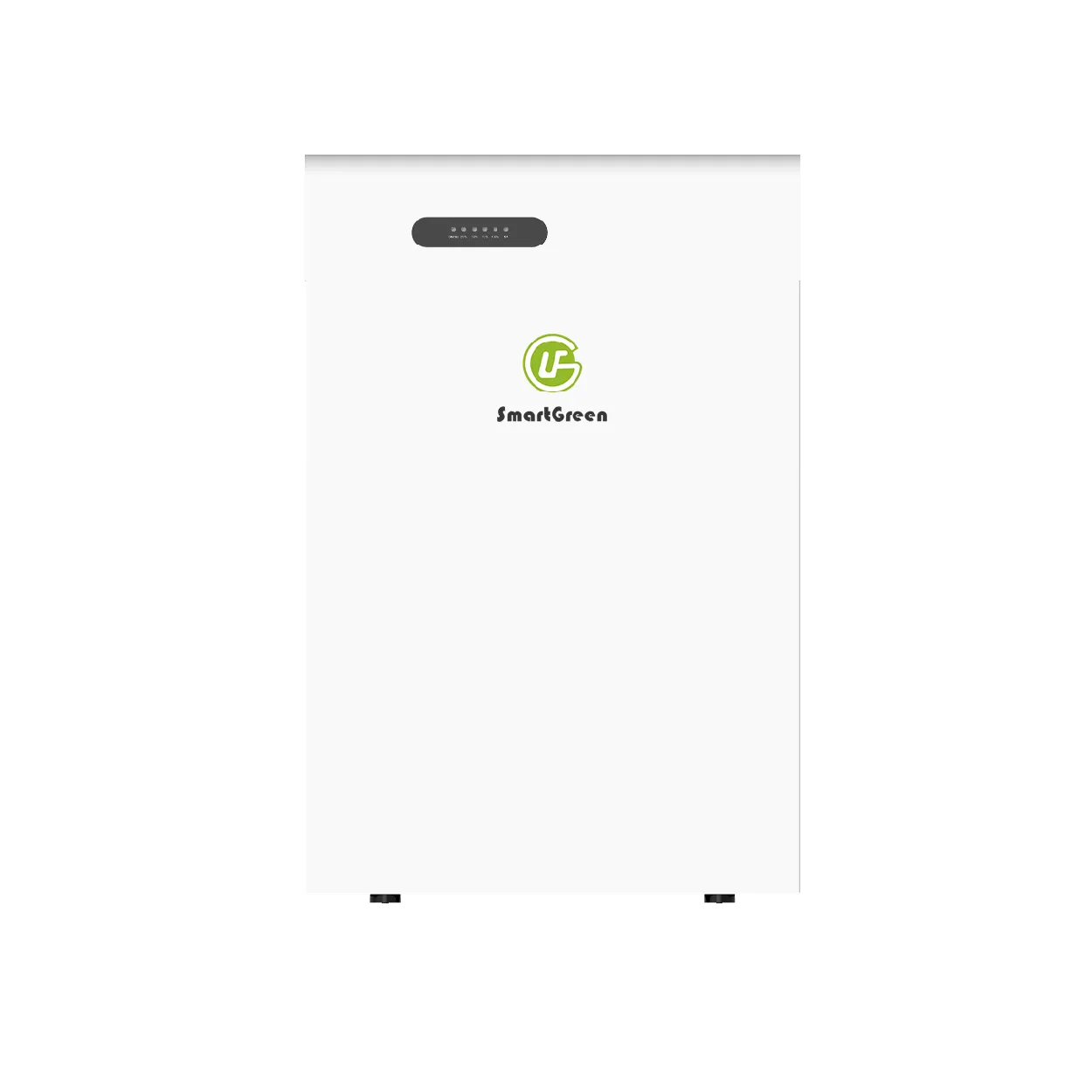

Appearance
- Dimensions(WxHxD): 474 x 715 x 150 mm
- Weight: about 61.5 (±1) kg
Battery Module
- Nominal energy: 5.8 kWh / 11.5 kWh / 17.3 kWh / 23.0 kWh / 28.8 kWh / 34.6 kWh
- Depth of discharge (DOD): 95%
- Nominal voltage:115.2 V / 230.4 V / 345.6 V / 460.8 V / 576 V / 691.2 V
- Rated charge / discharge power: 2.9 kW / 5.8 kW / 8.6 kW / 11.5 kW / 14.4 kW / 17.3 kW
Interface
- Communication interfaces: CAN2.0 + RS485
Mechanical
- Protection class: Class I
- Cooling: Natural cooling
- Installation: Wall mounting / Floor mounting
Compliance
- Safety: IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
Product Highlights
High Performance: Each cluster expands to up to 6 units for a capacity of 34.6 kWh, with 95% DOD and a cycle life exceeding 6,000 times; dual-stage battery heating design ensures both longevity and flexible performance.
Peace-of-Mind Protection: LFP cells paired with a high-performance processor, IP66 protection rating, and precise aerosol fire suppression system, free of toxic heavy metals or corrosive materials.
Smart & Flexible: Supports remote fault diagnosis, upgrades, and maintenance for quick troubleshooting; wall-mounted or floor-standing installation adapts to diverse site requirements.

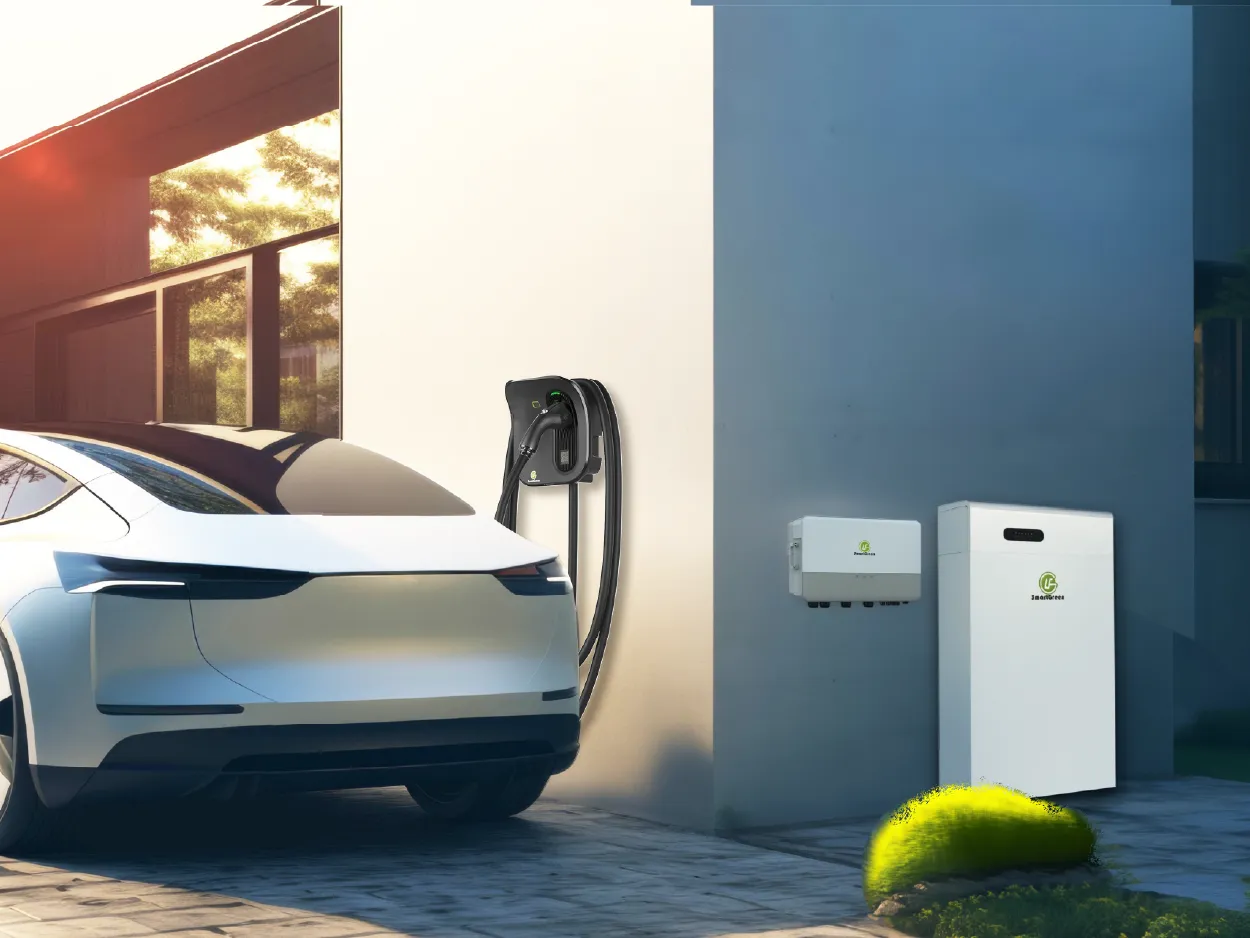

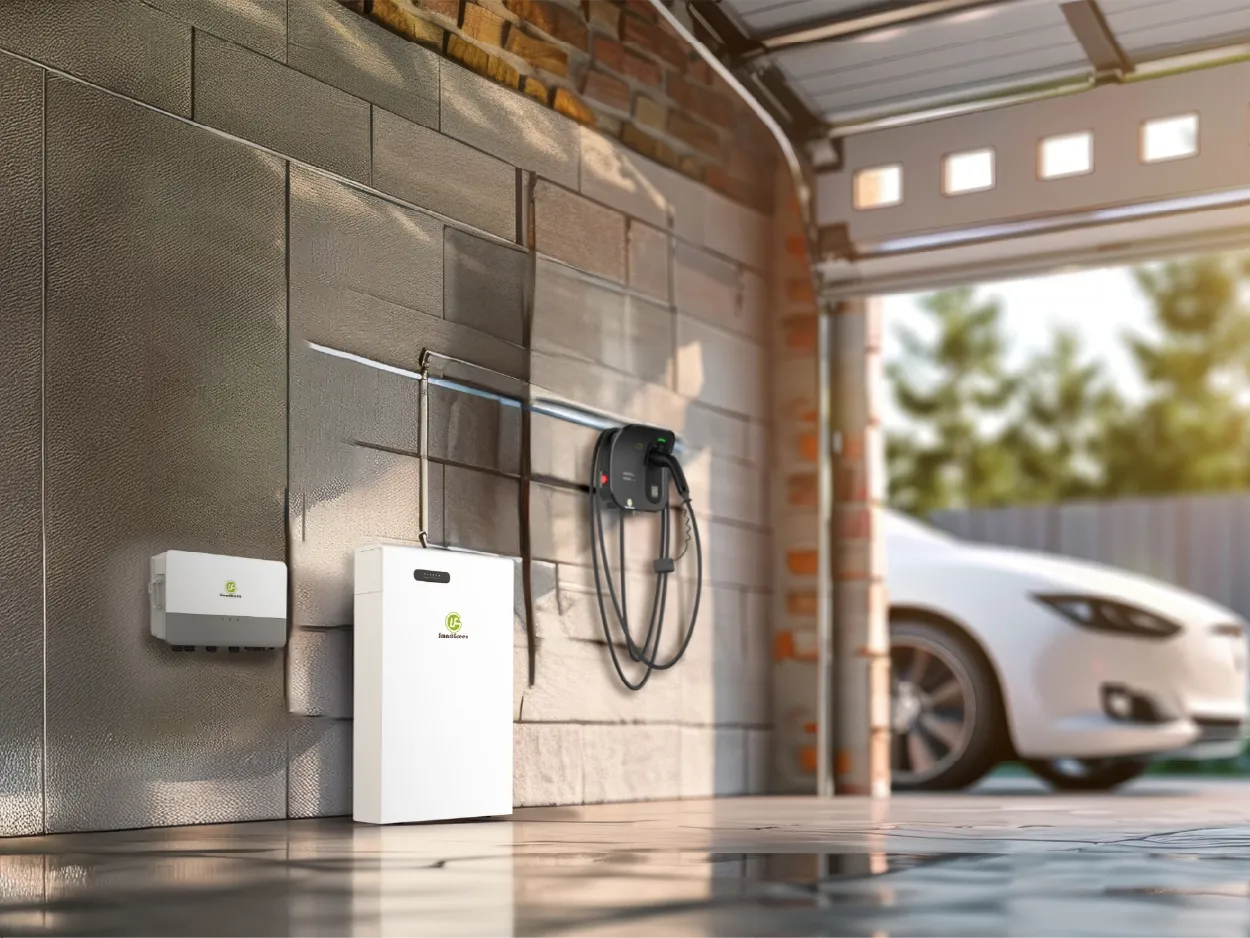

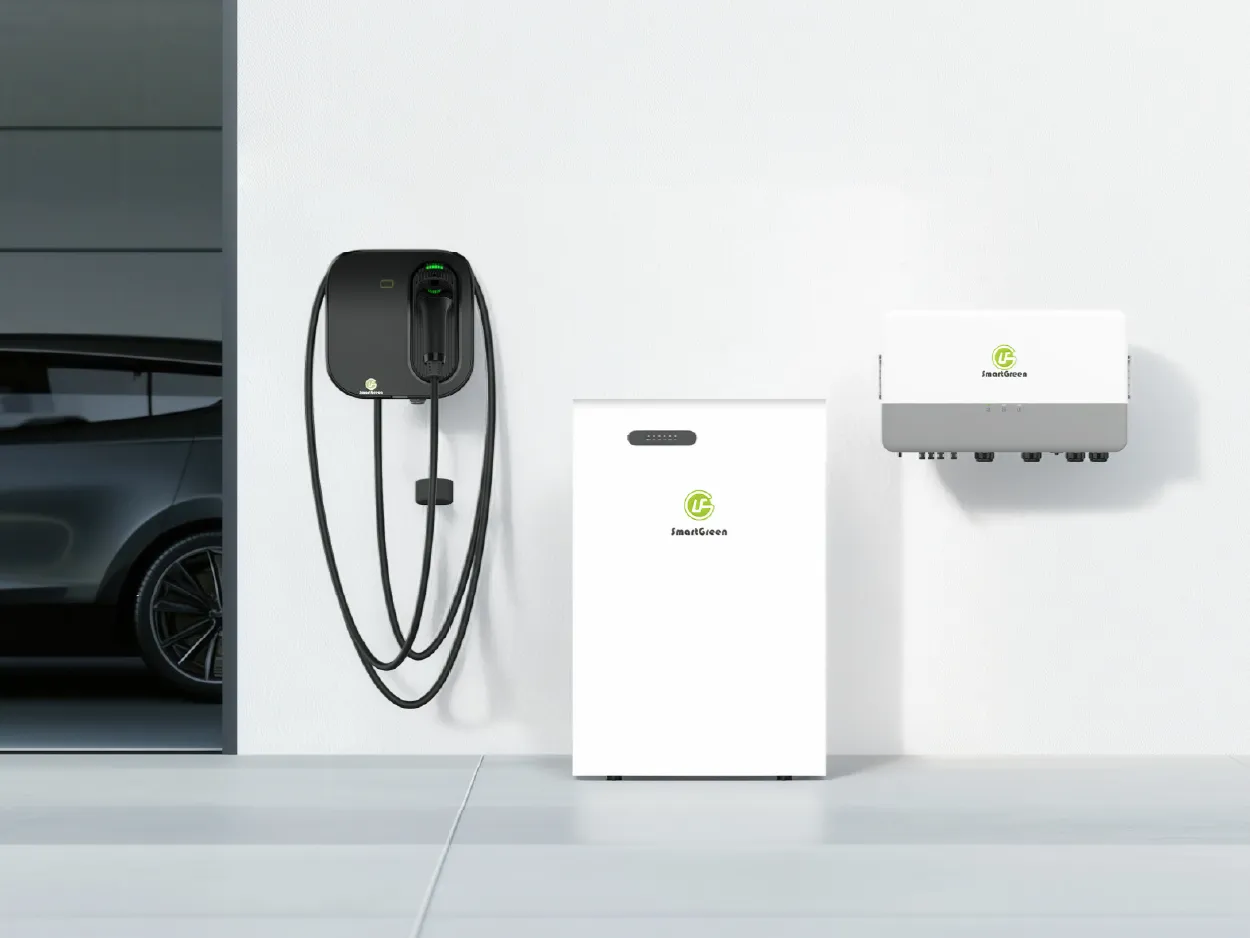

Applicable Locations
