Residential ESS
Battery
Europe(EU), Taiwan(TW), Canada(CA)

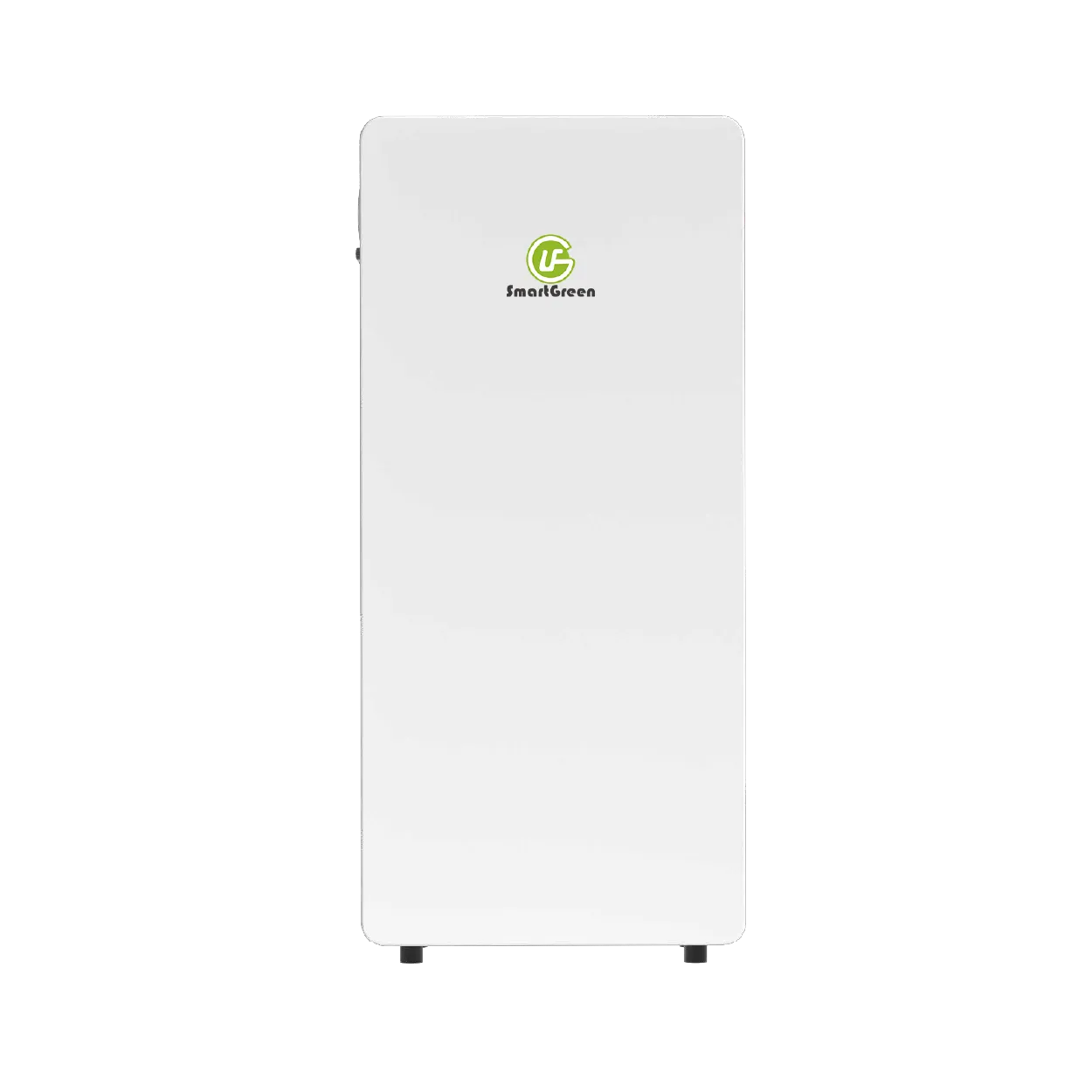

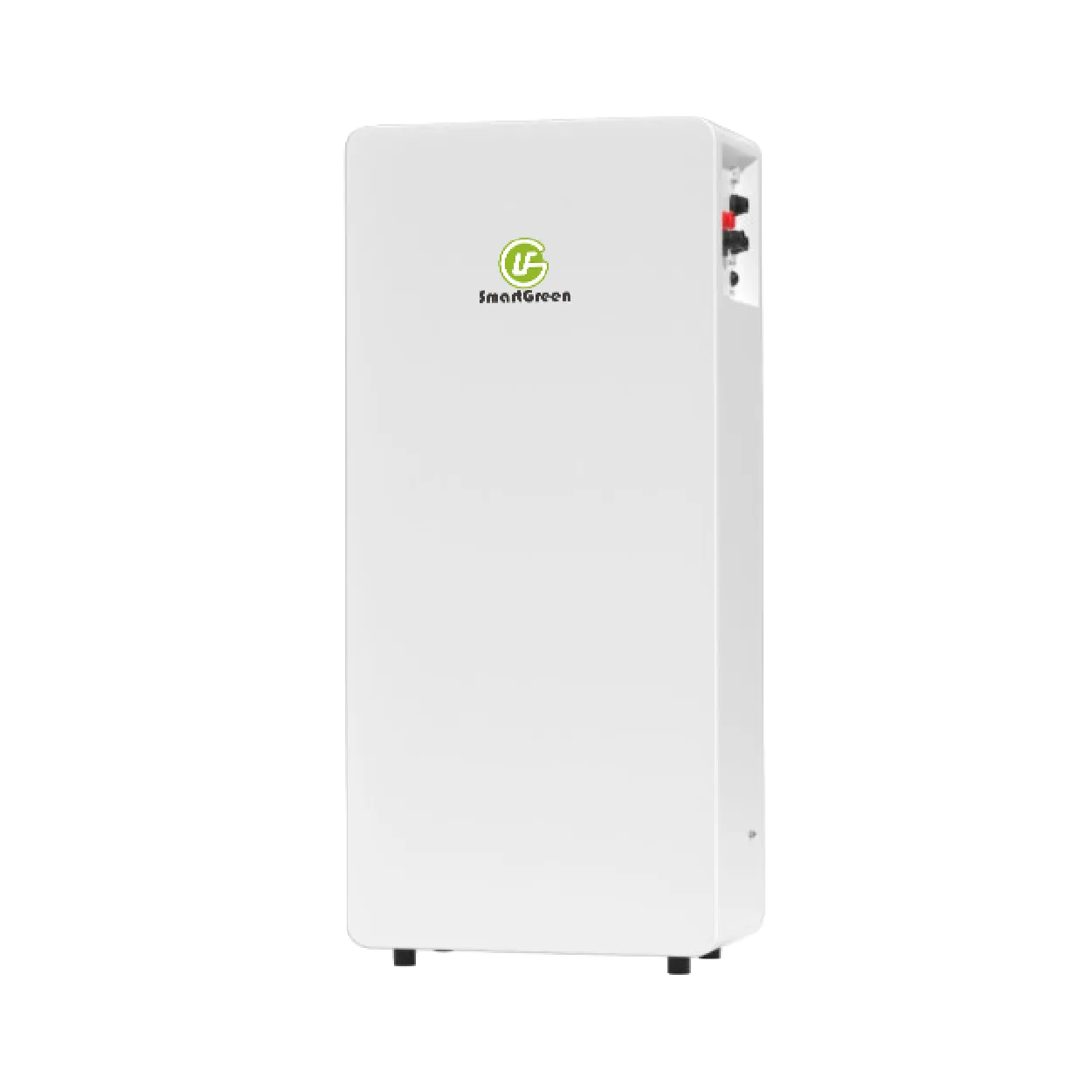

Appearance
- Dimensions(WxHxD): 410 x 824 x 236 mm
- Weight: about 115 kg
Battery Module
- Rated capacity: 314 Ah
- Recommended depth of discharge (DOD): 90%
- Rated voltage:51.2 V
- Max. continuous charging / discharging current: 160A
Interface
- Communication interfaces: CAN
Mechanical
- Protection degree: IP65
- Cooling: Natural convection
- Mounting: Wall-mounted / Floor-standing
Compliance
- Safety: IEC62619, UN 38.3, CE-EMC
Product Highlights
Safe & Stable: Built with LFP cells and enhanced safety design; 314 Ah large-capacity cells deliver long-lasting, stable performance.
Weather-Resistant & Smart: Optional heating function supports charging in low-temperature environments for stable all-weather operation.
Flexible Installation: Quick-connect design for easy installation, with capacity options ranging from 16.08 kWh to 257.28 kWh; IP65 rated for both indoor and outdoor installation.

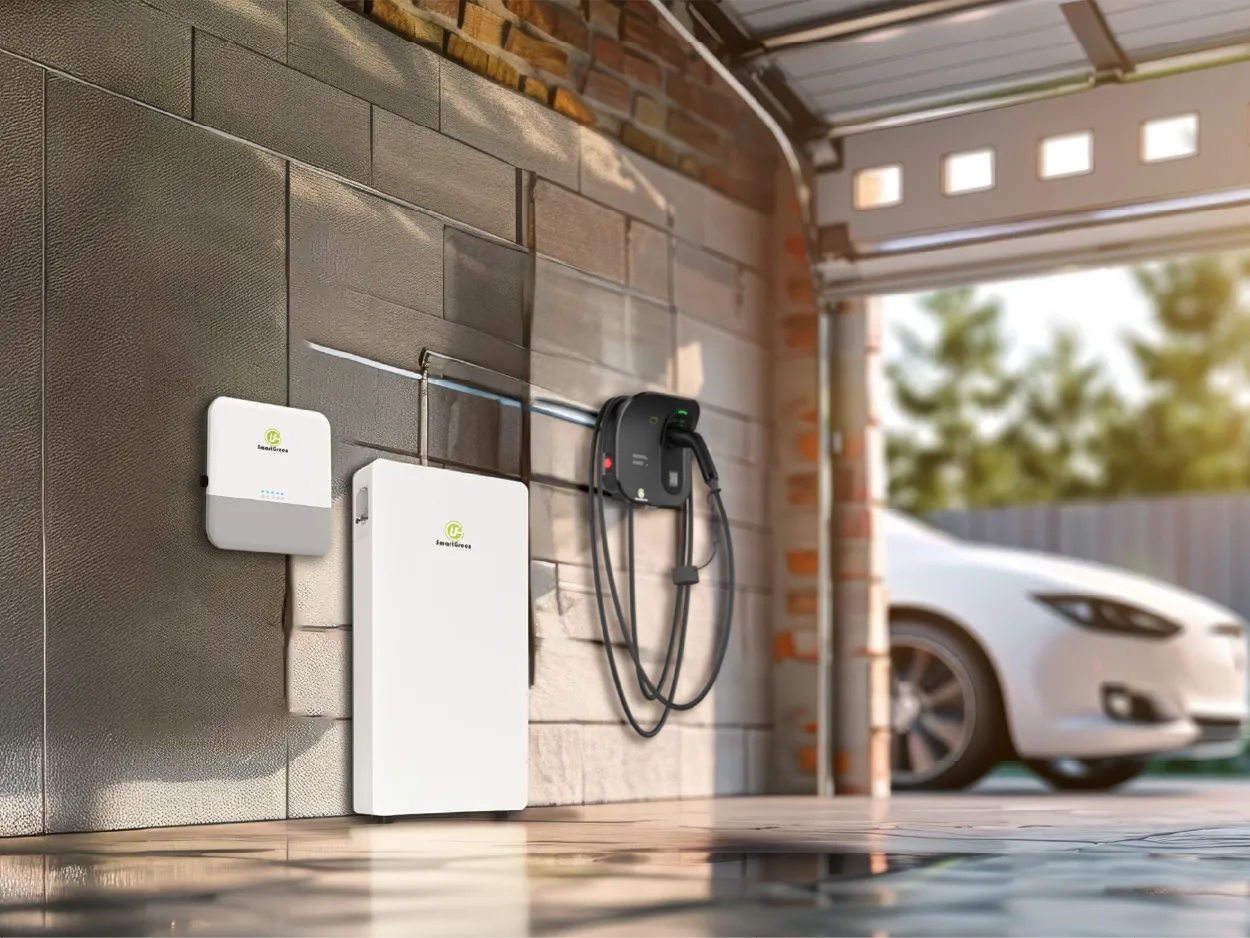

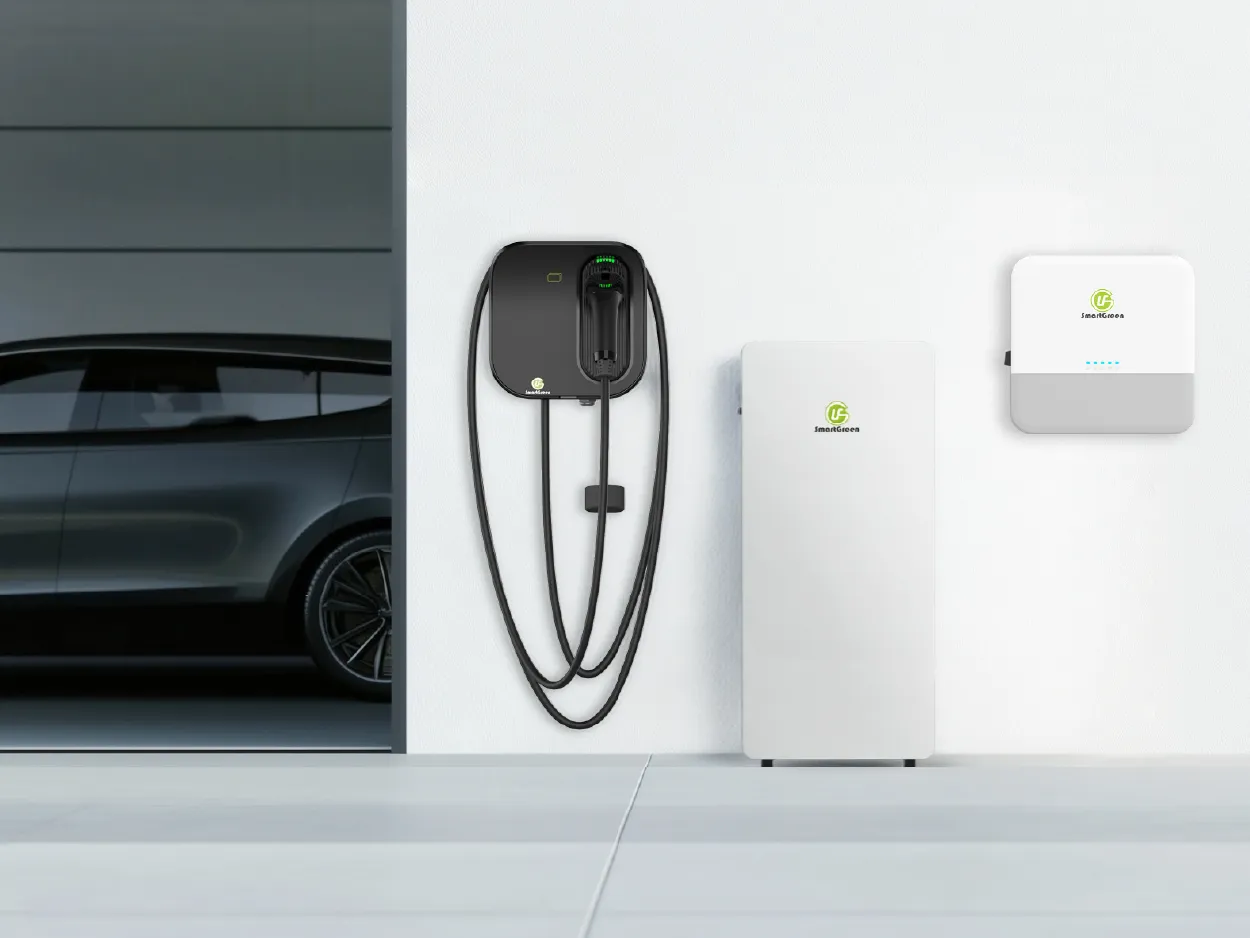

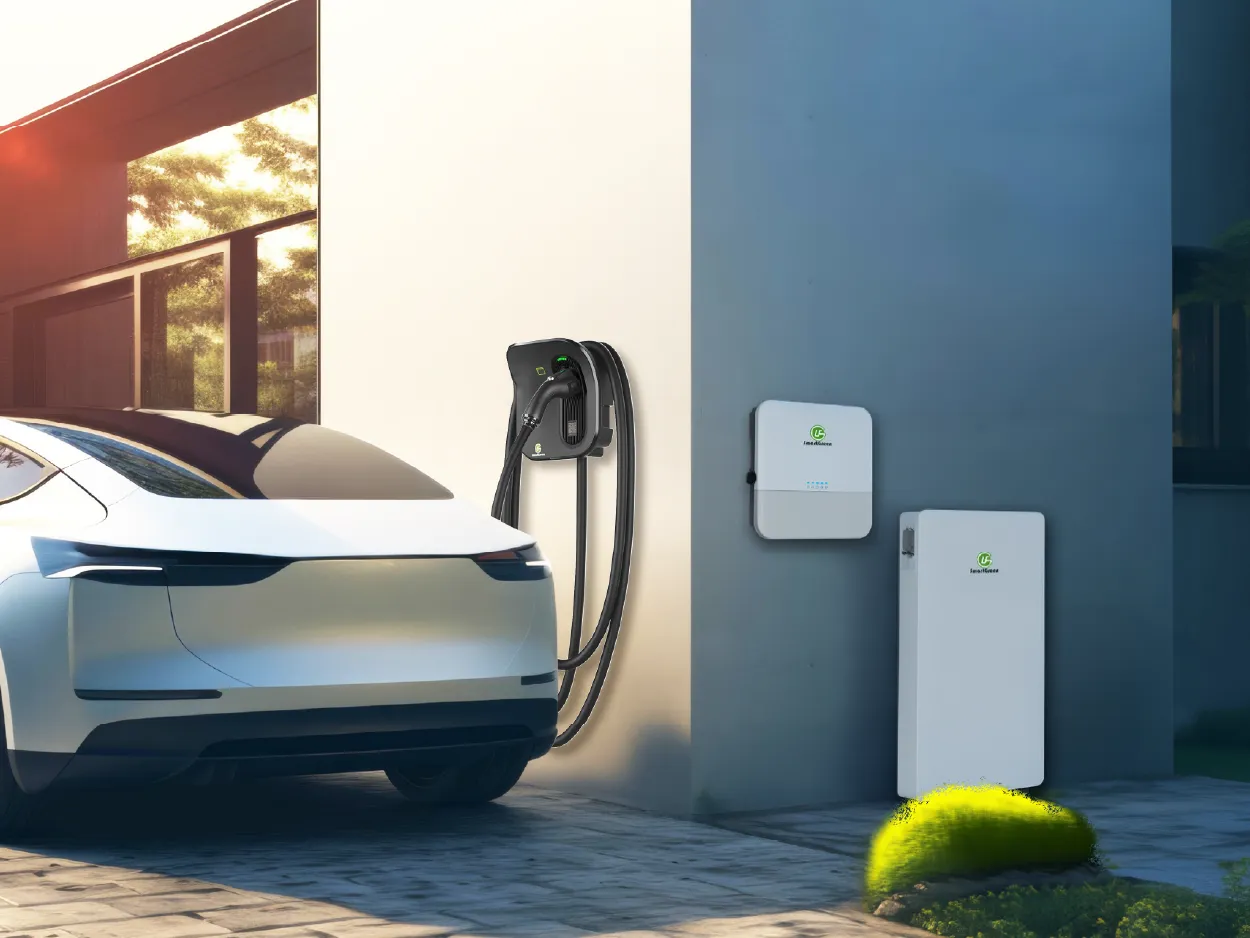

Applicable Locations
