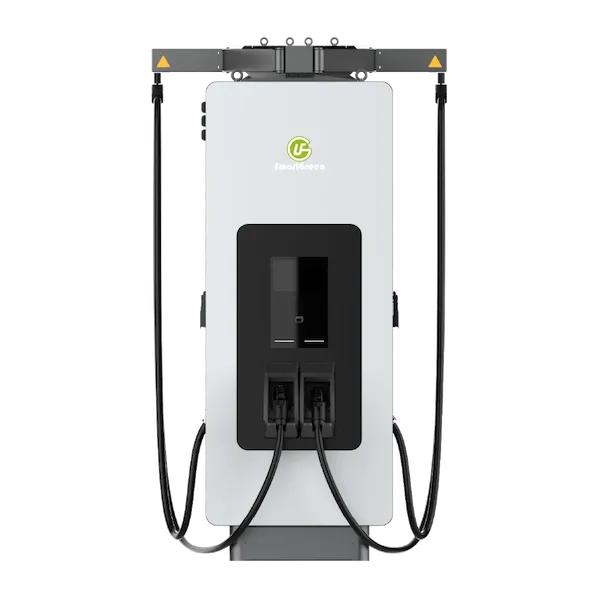

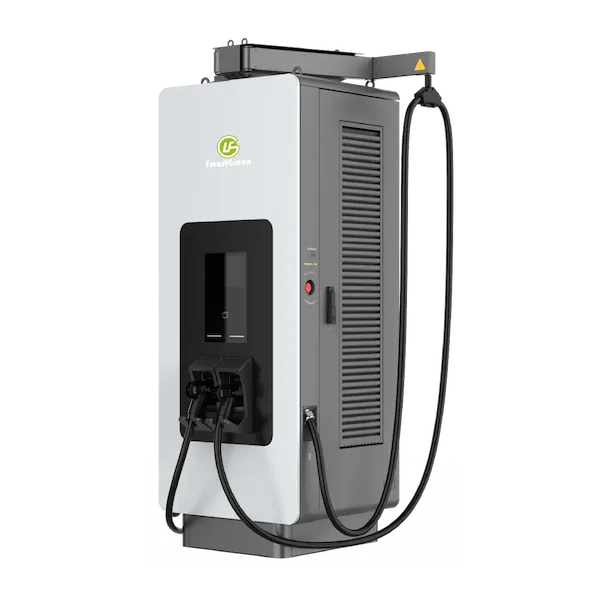

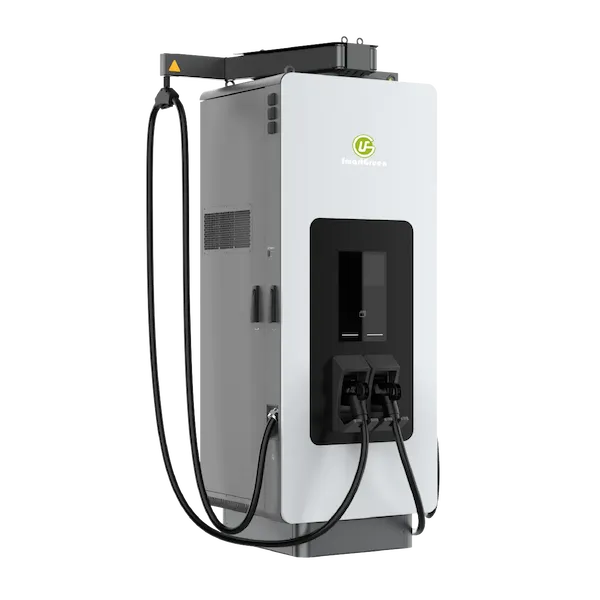

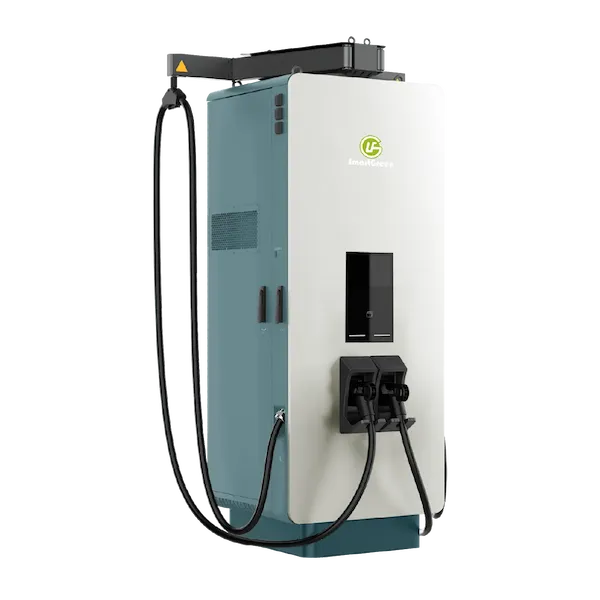

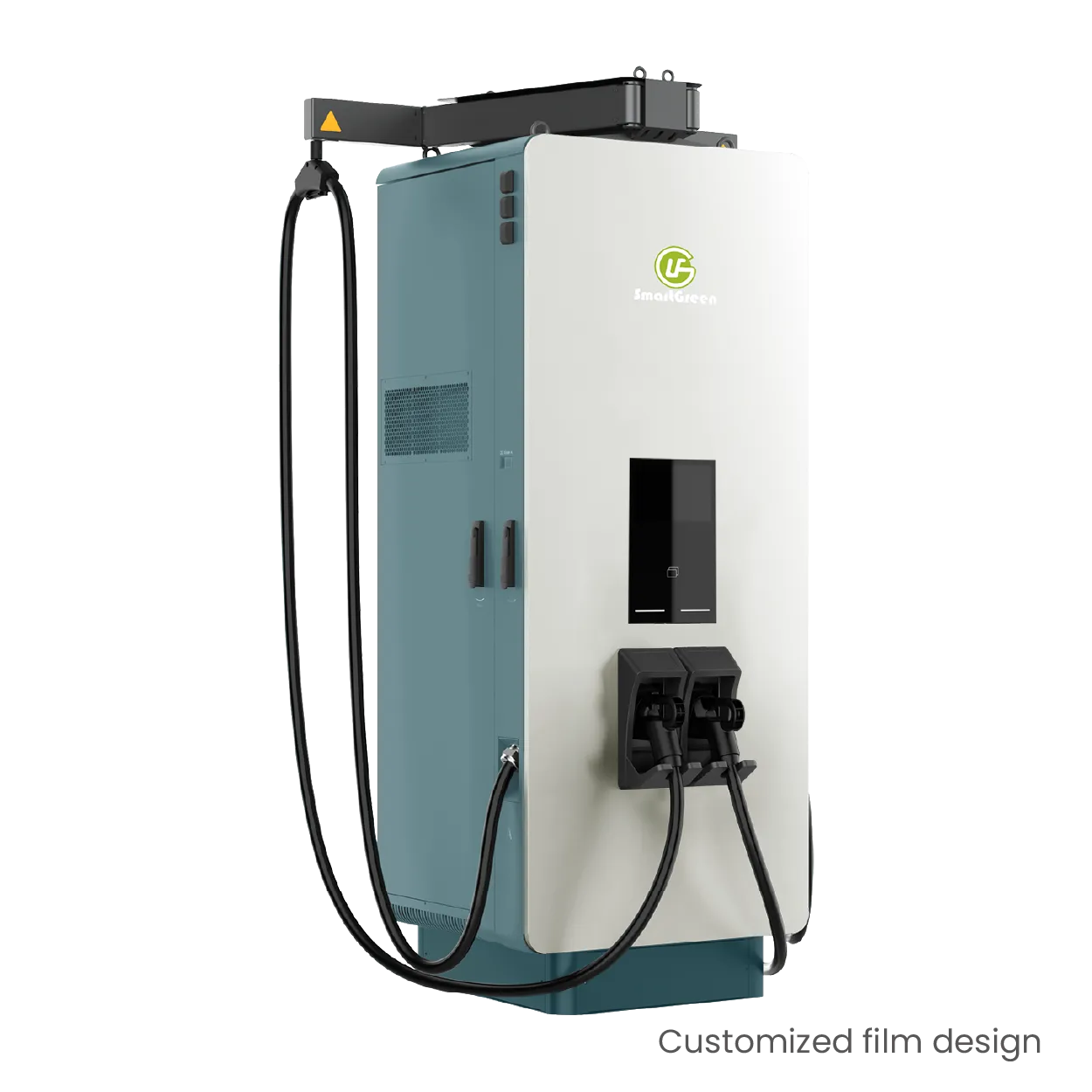

DC Charger
STI 180 - CCS1+CCS2
Taiwan(TW)
- Model: CAO-018012-T00 | TW
Appearance
- Dimension(WxHxD): 800 x 2235 x 750 mm (with management)
- Weight: about 560kg

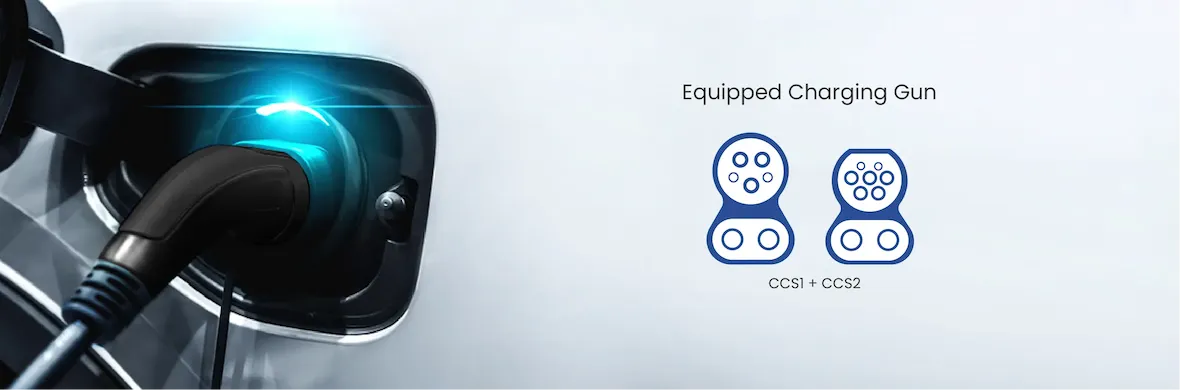

- Charging plug: CCS1 + CCS2 (2-plug), with 5m length cable
Input
- Input Connection: L1+L2+L3+N+PE, three-phase
- Input Voltage: 380Vac±10%, 60Hz
- Input Current: 291A Max
- Efficiency:95%
Output
- Output Power: 180kW Max
- Output Voltage: 200Vdc to 1000Vdc
- Output Current: 300A Max per plug
Interface
- Display: LED indicator and 10.4-inch touch screen
- User Authentication: Free/QR code/RFID card
- Commutation: 4G, Wi-Fi, RFID, Ethernet
- Protocol: OCPP 1.6J / DIN 70121, ISO 15118
Mechanical
- Protection: IP55/IK10 (Screen IK08)
- Cooling:Force air cooling
Compliance
- Certification: VPC, NCC
- Safety: CNS 15511-1, CNS15511-23/-24, CNS 15700-1/-3/3-1
- EMC: CNS 15511-21-2
Product Highlights
Support connect to any backend based on OCPP 1.6J protocol and remote control and monitor.
User-friendly touch interface and cable management system for ADA Standards.
Support up to 180kW of power in small area and wide output voltage range from 200 to 1000Vdc.

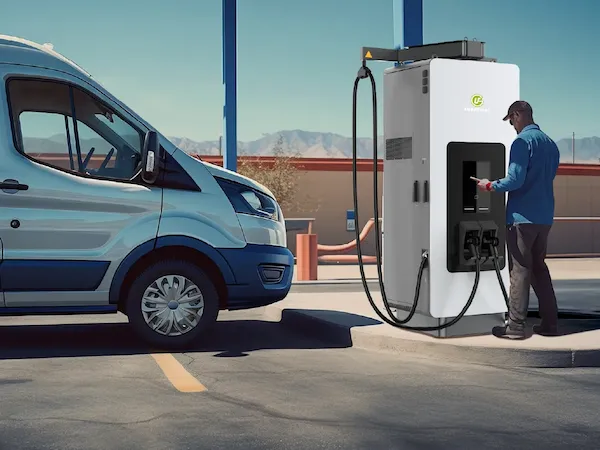

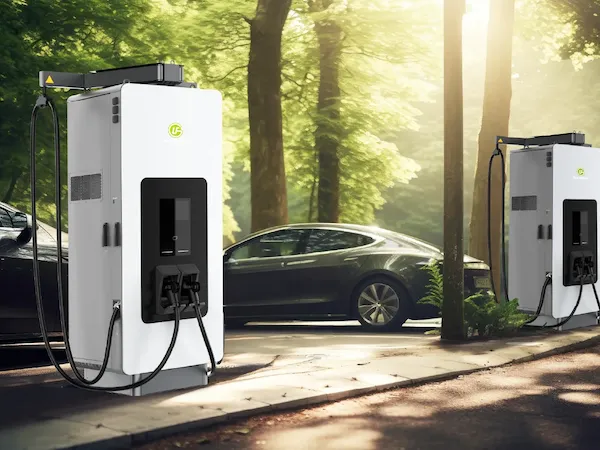

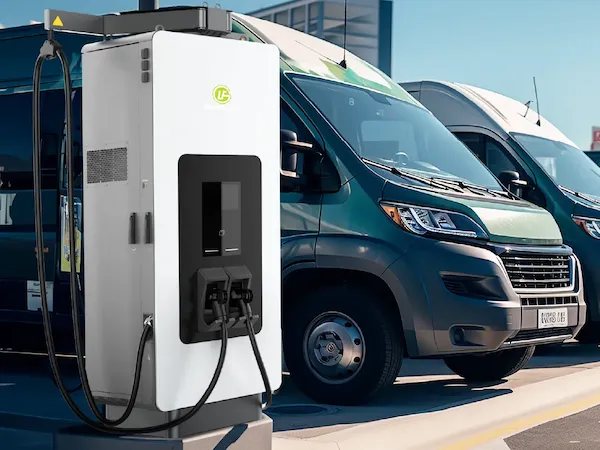

Applicable Locations
