DC Charger

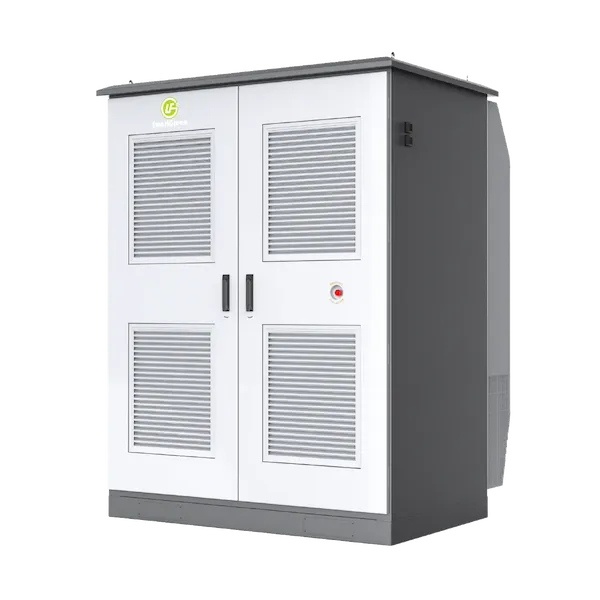

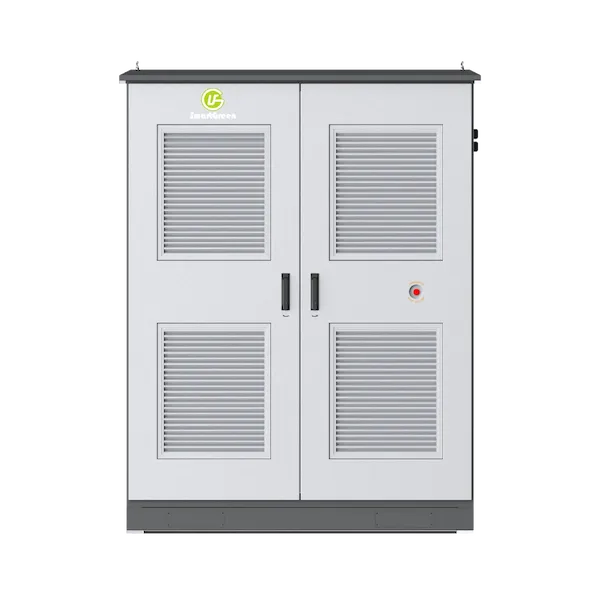

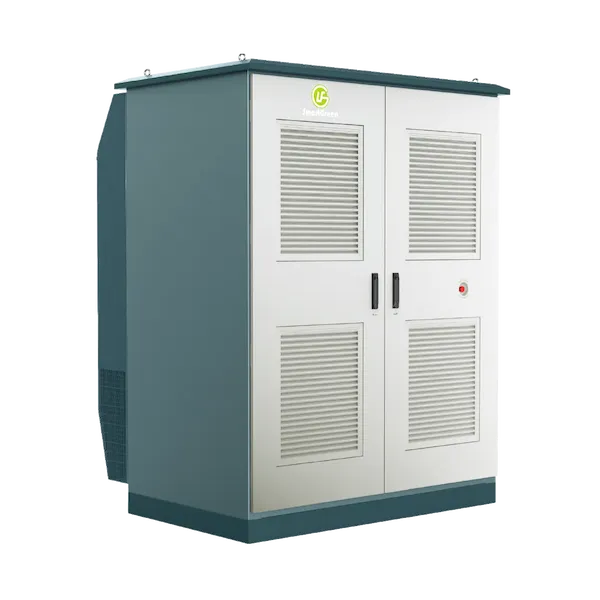

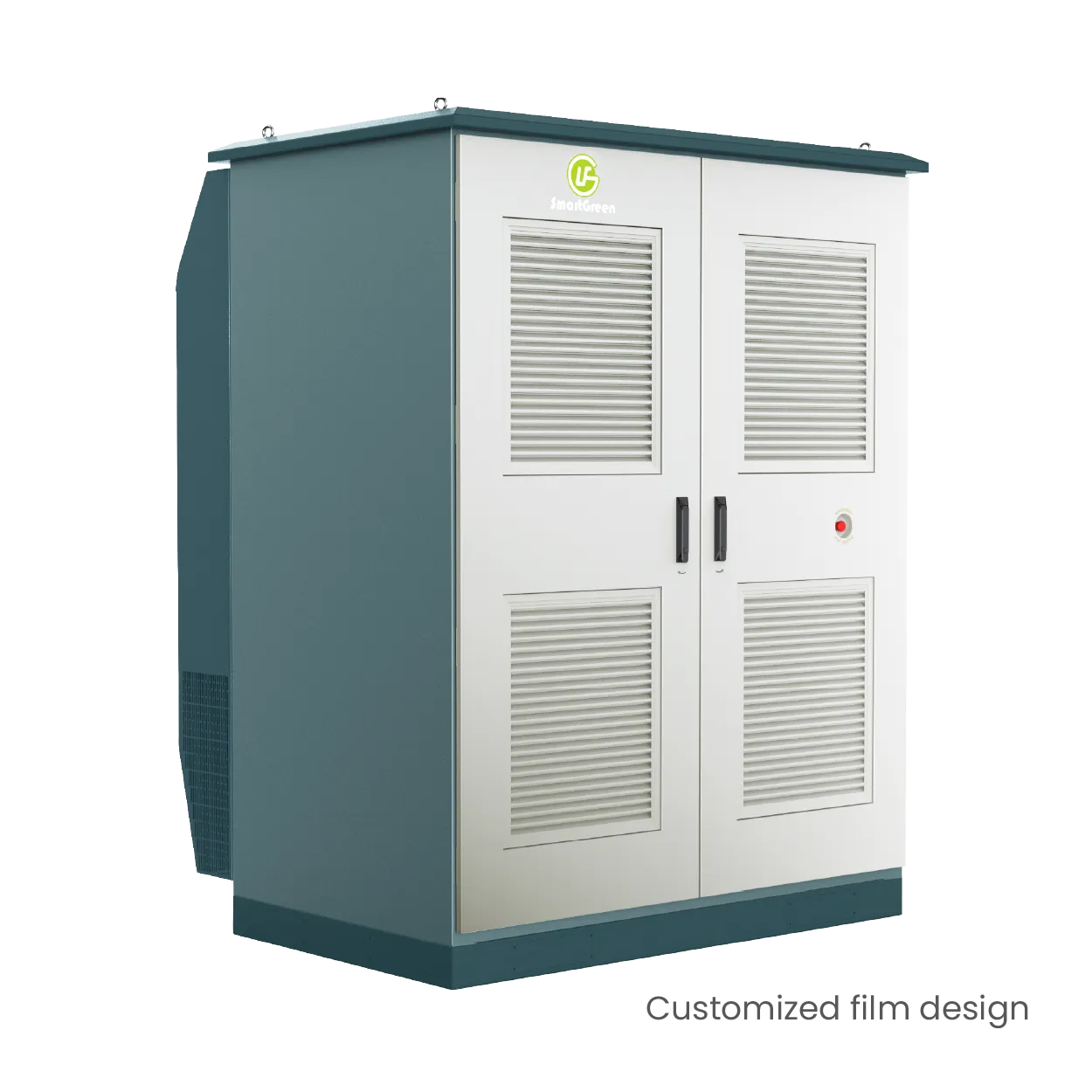

SNO 360 - Cabinet
Taiwan(TW)
- Model: CPC-036000-T00 | TW
Appearance
- Dimension(WxHxD): 1564 x 2045 x 1223mm
- Weight: about 840kg (including power module)
Input
- Input Connection: (L1+L2+L3+N+PE)x2, three-phase
- Input Voltage: 380VAC±10%, 60Hz
- Input Current: 550A Max
- Efficiency: 97%
Output
- Output Power: 360kW Max
- Output Voltage: 150Vdc to 1000Vdc
- Output Current: 1200A Max (total)
- Output terminal: Max. 2 terminal
Interface
- Commutation: 4G, Wi-Fi, Ethernet
Mechanical
- Protection: IP55/IK10
- Cooling: Forced air cooling
Compliance
- Certification: VPC, NCC
- Safety: CNS 15511-1, CNS 15511-23/-24, CNS 15700-1/-3/3-1
- EMC: CNS 15511-21-2
Product Highlights

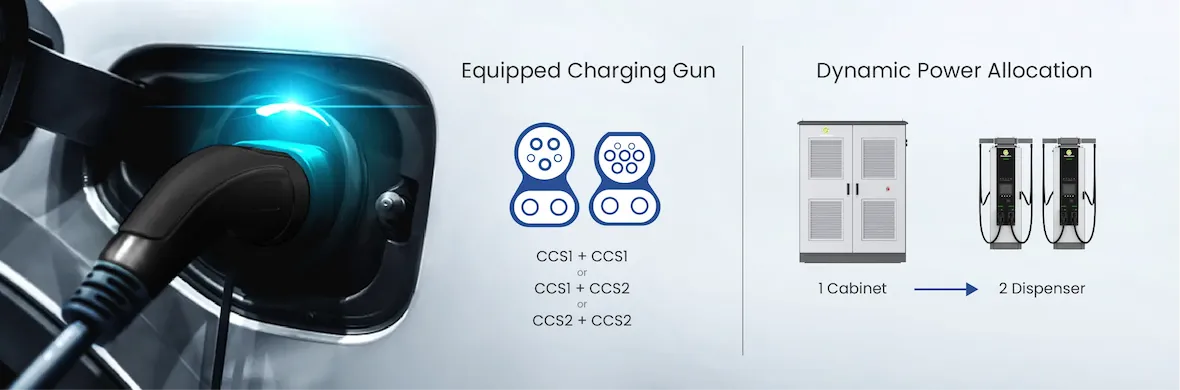

Support connect to any backend based on OCPP 1.6J protocol and remote control and dynamic power allocation.
User-friendly touch interface and cable management system for ADA standards.

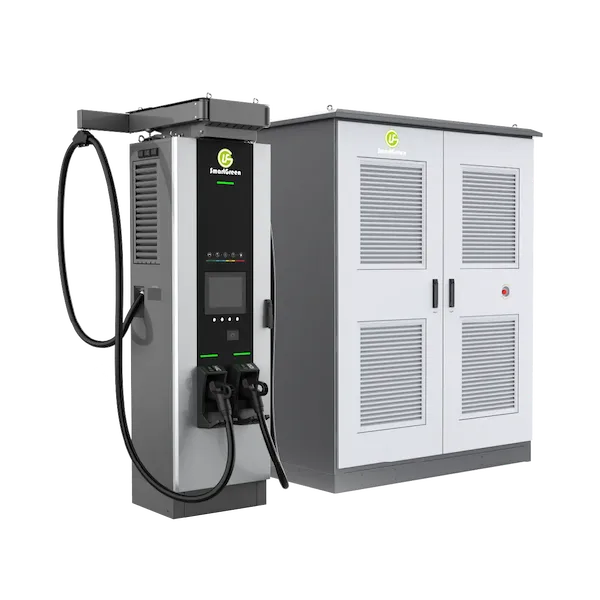

Support up to 360kW of power to charge for 12 cars under 6 terminals and wide output voltage range from 150 to 1000Vdc.
