DC Charger
SNO 480 - Dispenser
Taiwan(TW)
- Model: CCT-048012-T00 | TW

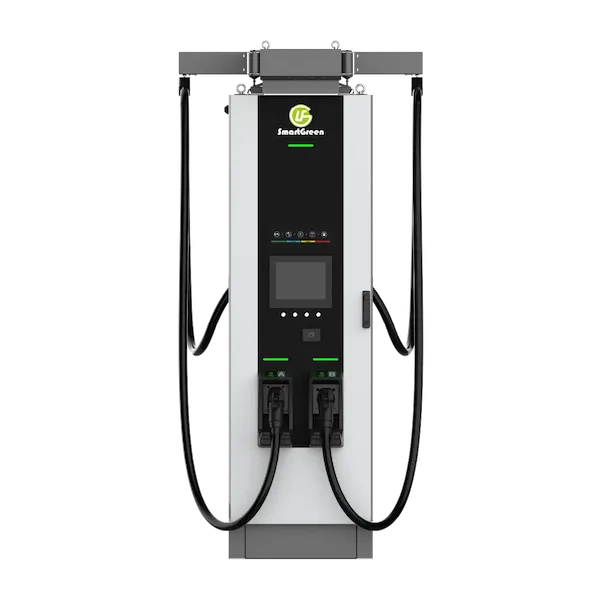

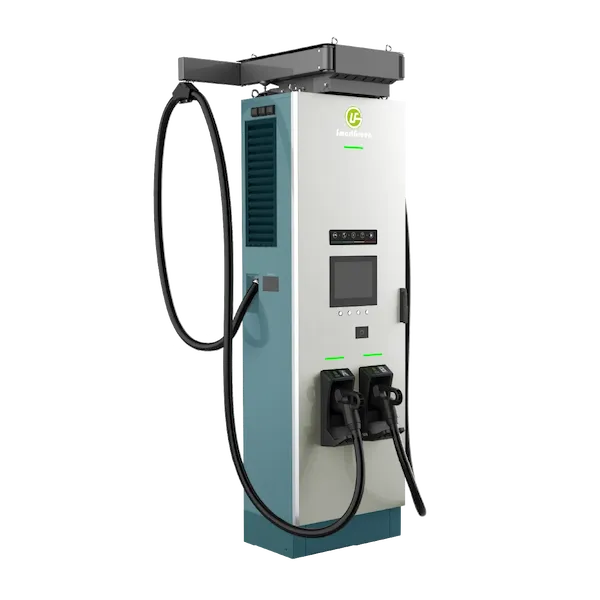

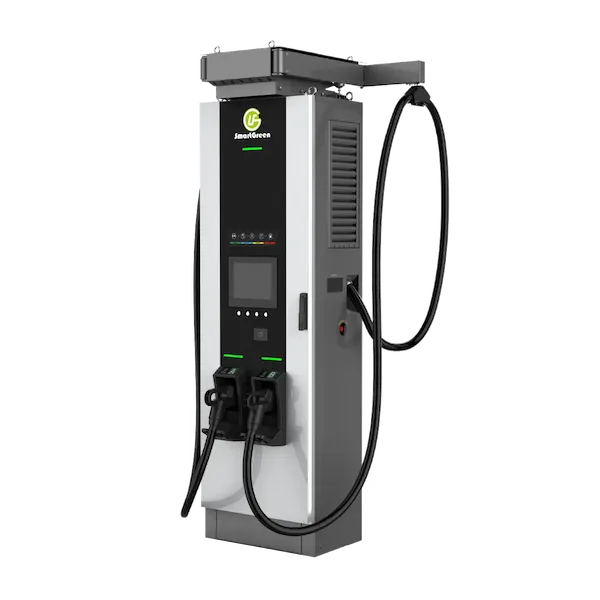

Appearance
- Dimension(WxHxD): 1050 x 2200 x 707 mm (with cable management)
- Weight: about 244kg (with cable management)

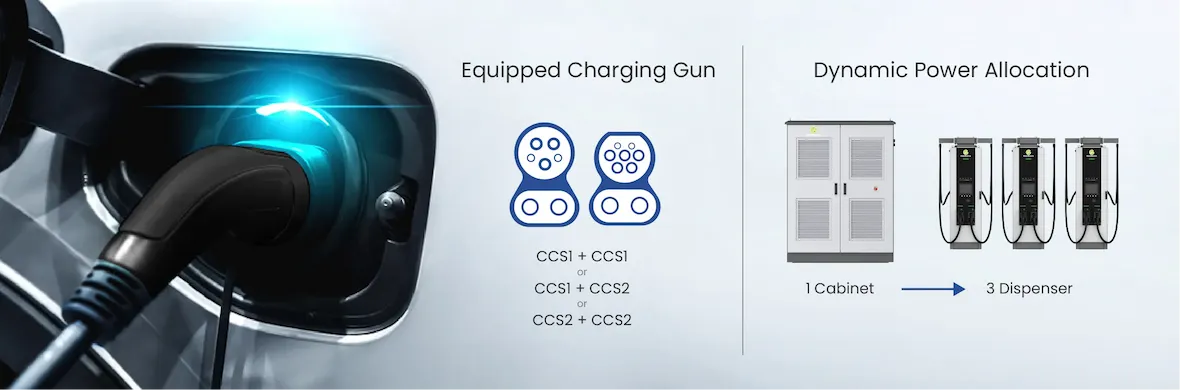

- Cable interface: CCS1+CSS2 & CCS1+CCS1 & CCS2+CCS2 (2-plug), with 6m length cable
Input

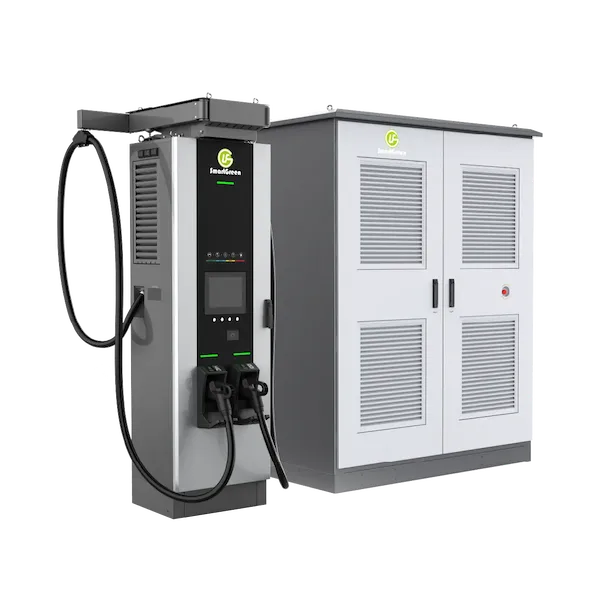

- Main Input: Main power from cabinet
- Auxiliary Input: 220Vac±10%, 60Hz, single-phase
Output
- Output Power: 480kW Max
- Output Voltage: 150Vdc to 1000Vdc
- Output Current: 300A Max / plug (natural cooling)
Interface
- Display: LED indicator and 10.4-inch touch screen
- User Authentication: Free/QR code/RFID card
- Commutation: Ethernet
- Protocol: OCPP 1.6J / DIN 70121, ISO 15118
Mechanical
- Protection: IP55/IK10 (Screen IK08)
- Cooling: Forced air cooling
Compliance
- Certification: VPC, NCC
- Safety: CNS 15511-1, CNS 15511-23/-24, CNS 15700-1/-3/3-1
- EMC: CNS 15511-21-2
Product Highlights
Support connect to any backend based on OCPP 1.6J protocol and remote control and dynamic power allocation.
User-friendly touch interface screen and cable management system for ADA Standards.
Support up to 480kW of power to charge for 12 cars under 6 terminals and wide output voltage range from 150 to 1000Vdc.
