Solar / Hybrid Inverter
Hybrid Inverter
Europe(EU), Taiwan(TW), Canada(CA)

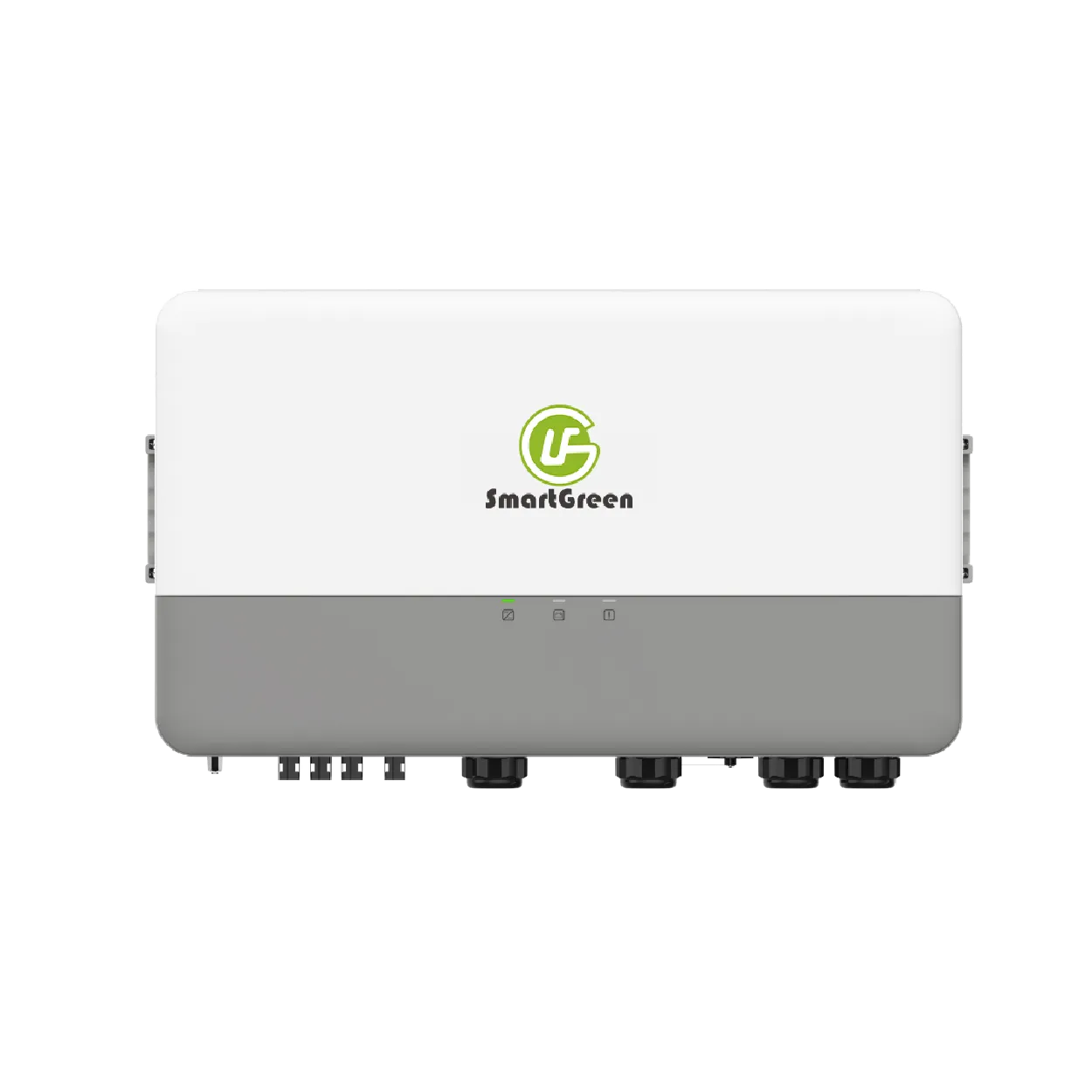

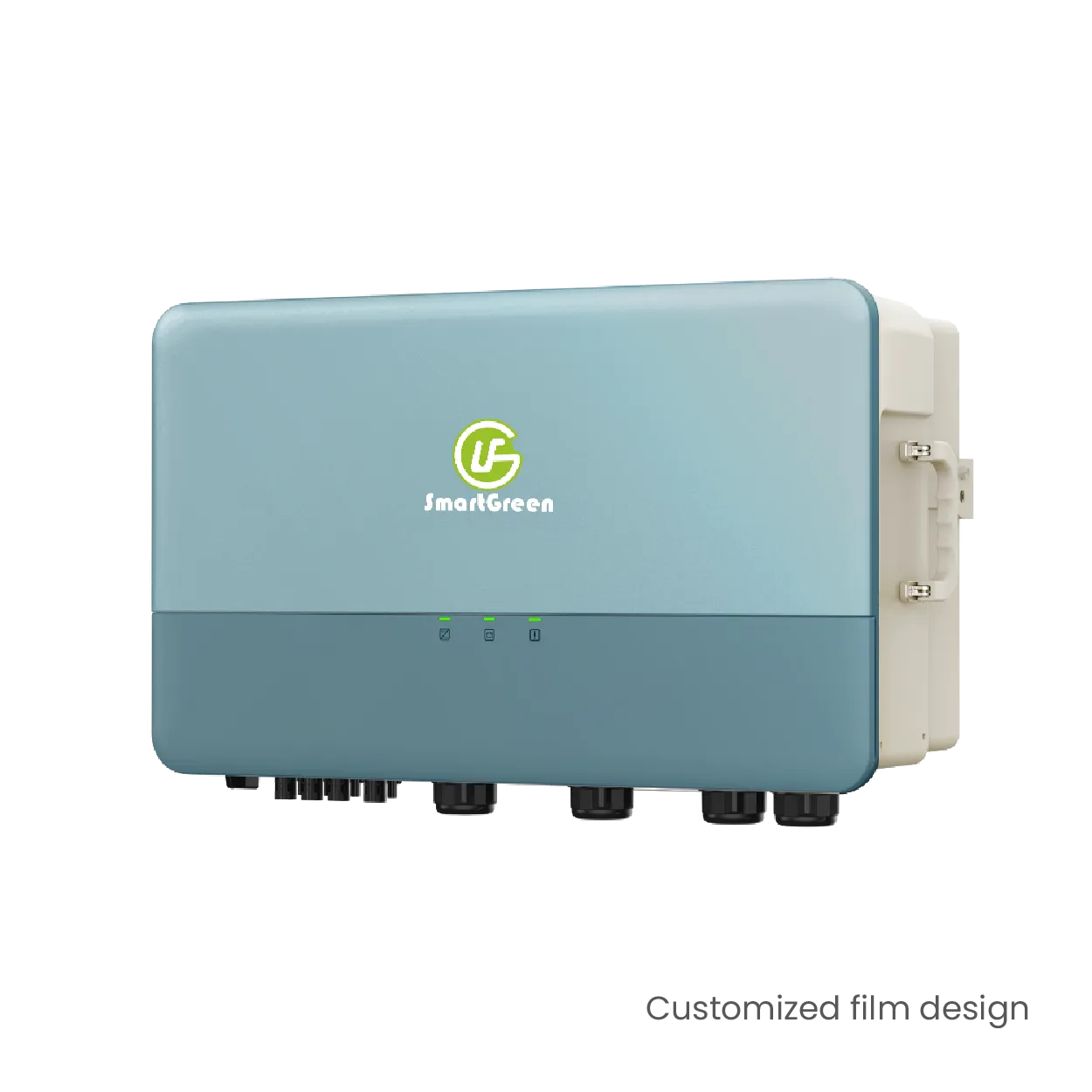

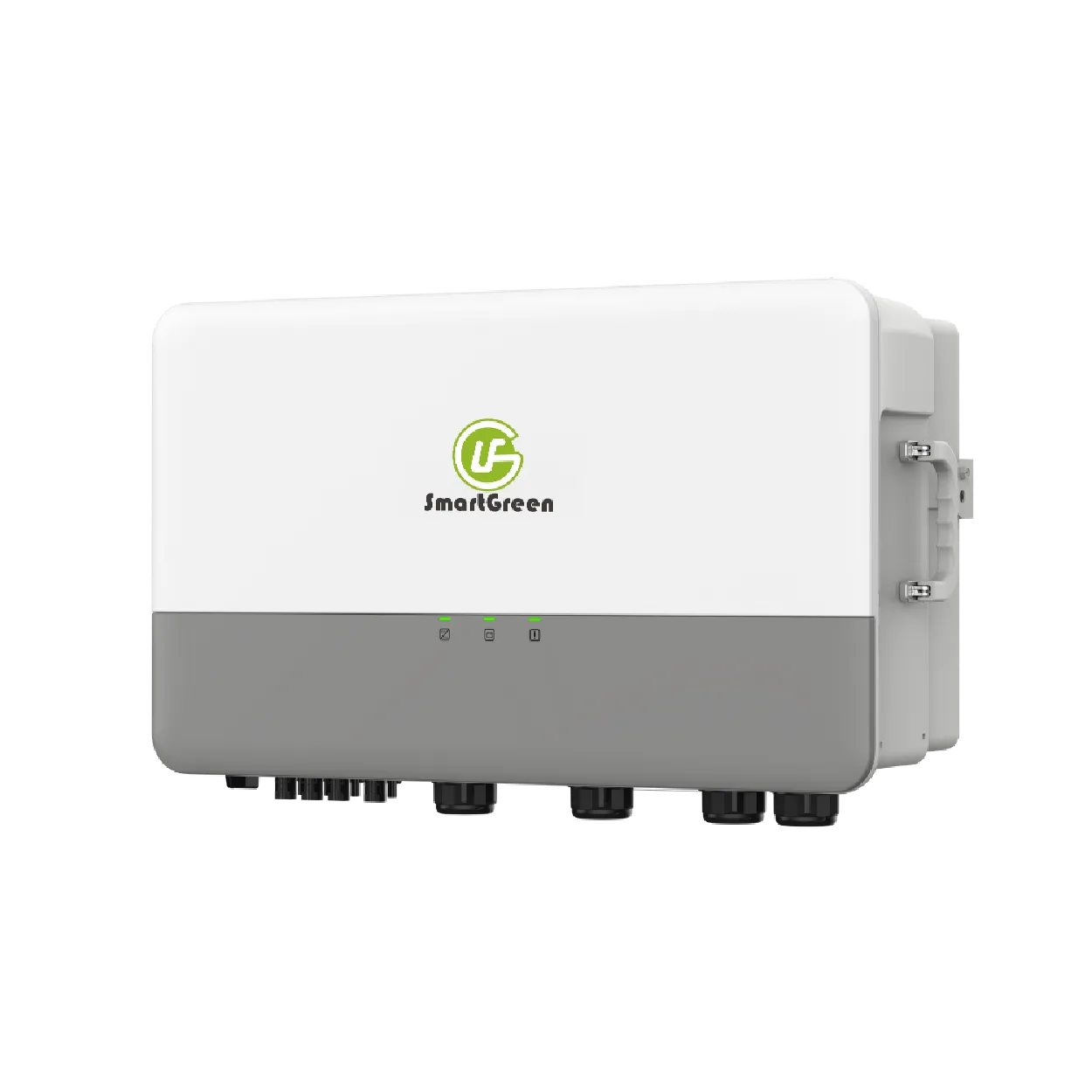

Appearance
- Dimensions(WxHxD): 718 x 415 x 210 mm
- Weight: about 33kg
Battery port
- Max. charge / discharge power: 10,000 W / 10,300 W；12,000 W / 12,300 W
- Battery voltage range: 100~480 d.c. V
- Max. charge / discharge current:60 (30x2) / 60 (30x2 )d.c.A
- Max. efficiency: 96.6%
PV port
- Rated / Max. PV input voltage: 390 d.c. V / 500 d.c. V
- MPPT voltage range: 35~ 490 d.c. V
- Max. input current per MPPT: 18 d.c. A
- No. of MPP trackers / strings per MPP tracker: 3 (1 / 1 / 1)
Interface
- Communication interfaces: RS485, WIFI, DI, DO, CAN
Mechanical
- Protection: NEMA 4X / IP66
- Cooling:Smart air cooling
Compliance
- Safety: IEC 62109, IEC 61727, UL 1741, IEC63027, Inmetro
Product Highlights
Efficient Power Generation: A 45V ultra-low startup voltage paired with 3 MPPT trackers delivers up to 200% EPS peak power, with switching time under 10ms for seamless, uninterrupted transitions.
Robust Protection: Features smart arc-fault circuit interruption (AFCI), a NEMA 4X/IP66-rated enclosure, and a built-in Type II surge protection device for all-around system safety.
Whole-Home Compatibility: Supports battery-free super backup and whole-home backup solutions, with dual battery ports and split-phase EPS output; compatible with generators to meet diverse application needs.

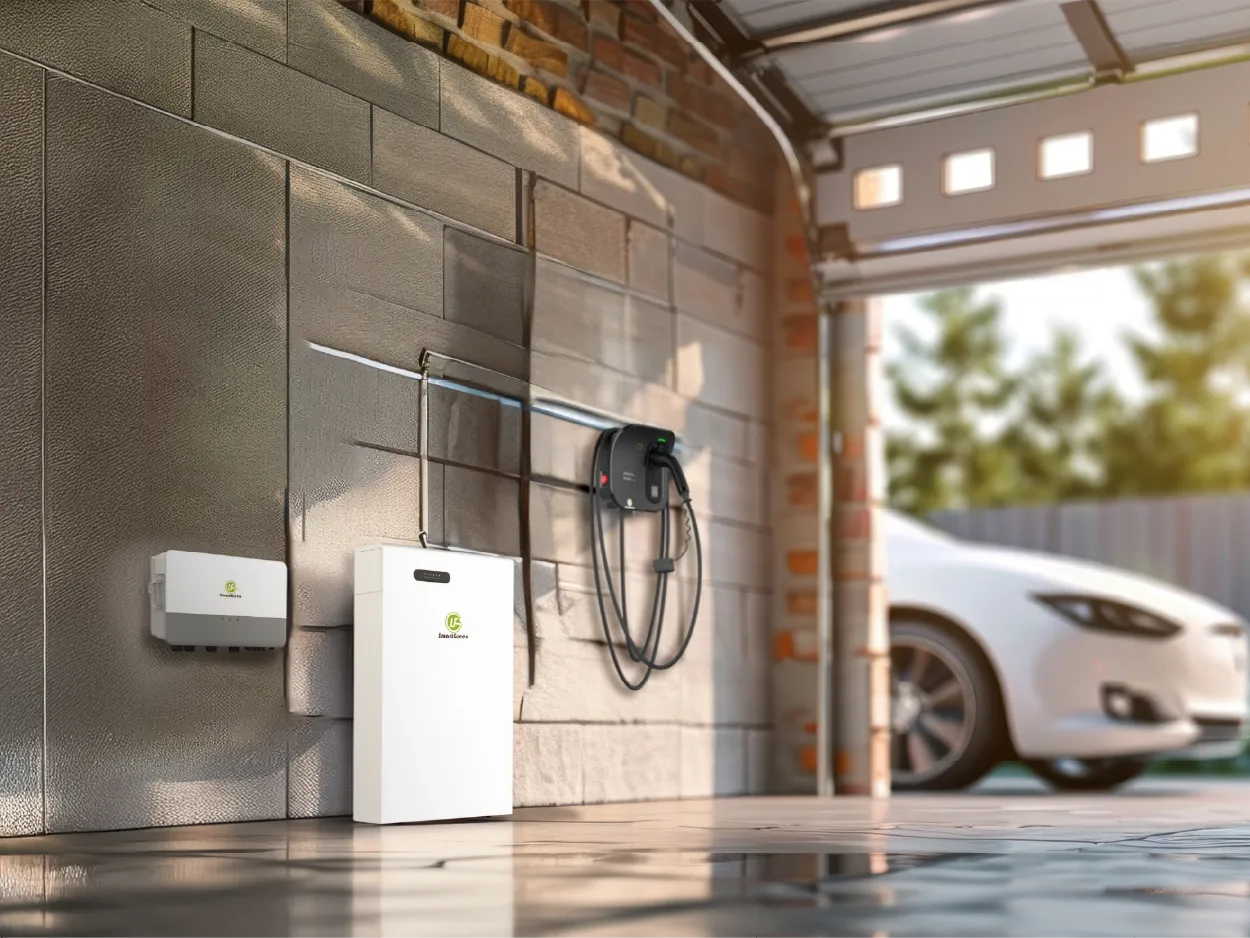

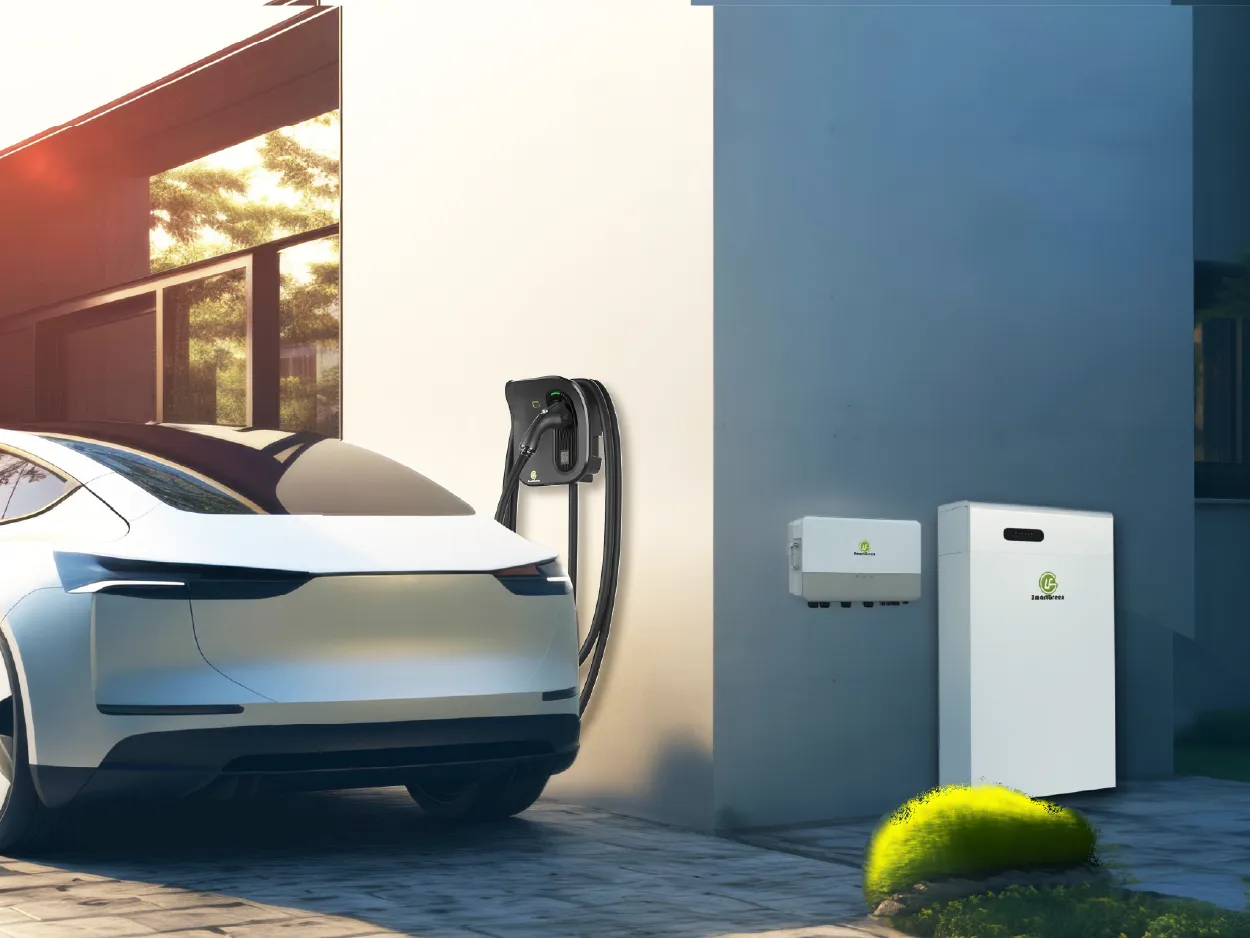

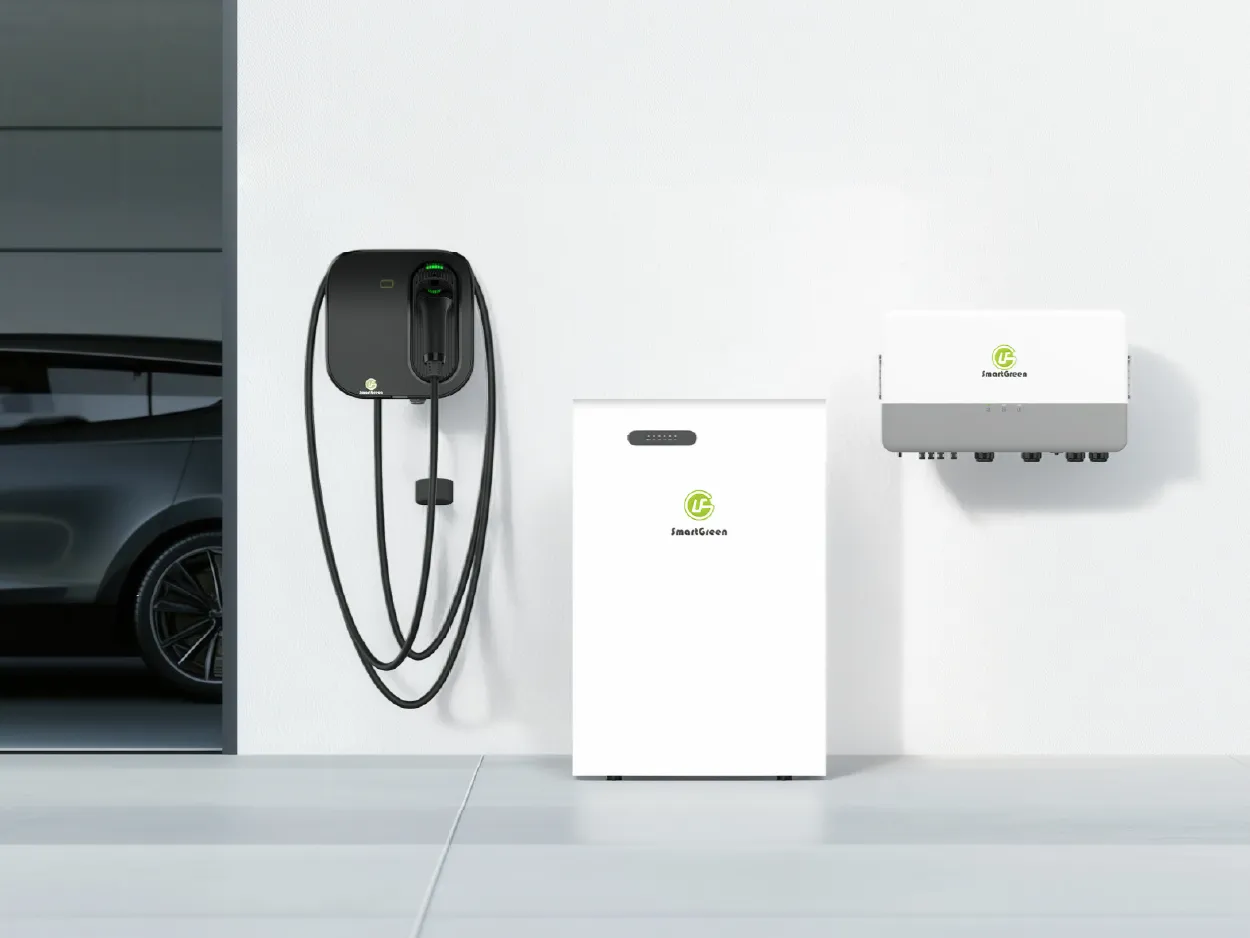

Applicable Locations
