Solar / Hybrid Inverter
Hybrid Inverter
Europe(EU), Taiwan(TW), Canada(CA)
Appearance
- Dimensions(WxHxD): 503 x 503 x 199 mm
- Weight: 約 30 ± 1 kg
Battery port
- Battery voltage range: 120 ~ 800 V
- Max. charge / discharge current:30 A
- Max. efficiency: 98.0%
PV port
- Rated / Max. PV input voltage: 640 V / 1000 V
- MPPT voltage range: 180~950 V
- Max. input current per MPPT: 16 / 16 A；28 / 16 A
- No. of MPP trackers / strings per MPP tracker: 2 ( 1 /1 )
Interface
- Communication interfaces: CT / Meter (optional), External control RS485, Pocket WiFi (Optional: Pocket LAN/4G), DRM, NTC (optional)
Mechanical
- Protection: IP65
- Cooling:Natural cooling / Smart air cooling
Compliance
- Safety: EN/IEC62109-1/-2, VDE4105, G99, G98, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
Product Highlights
Efficient & Energy-Saving: 2x DC overload capacity and 1.1x AC overload, with battery charge/discharge efficiency up to 97.5%; built-in shade tracking maximizes power generation.
Cost-Effective: Each string supports 16A DC input with up to 1.5x rated power input; stores surplus solar energy and lowers startup voltage to extend generation time and reduce transmission loss.
Smart & Safe: On/off-grid switching in under 10ms, compatible with LFP and lead-acid batteries; supports smart load control and parallel expansion, with IP65 protection and built-in surge protection.

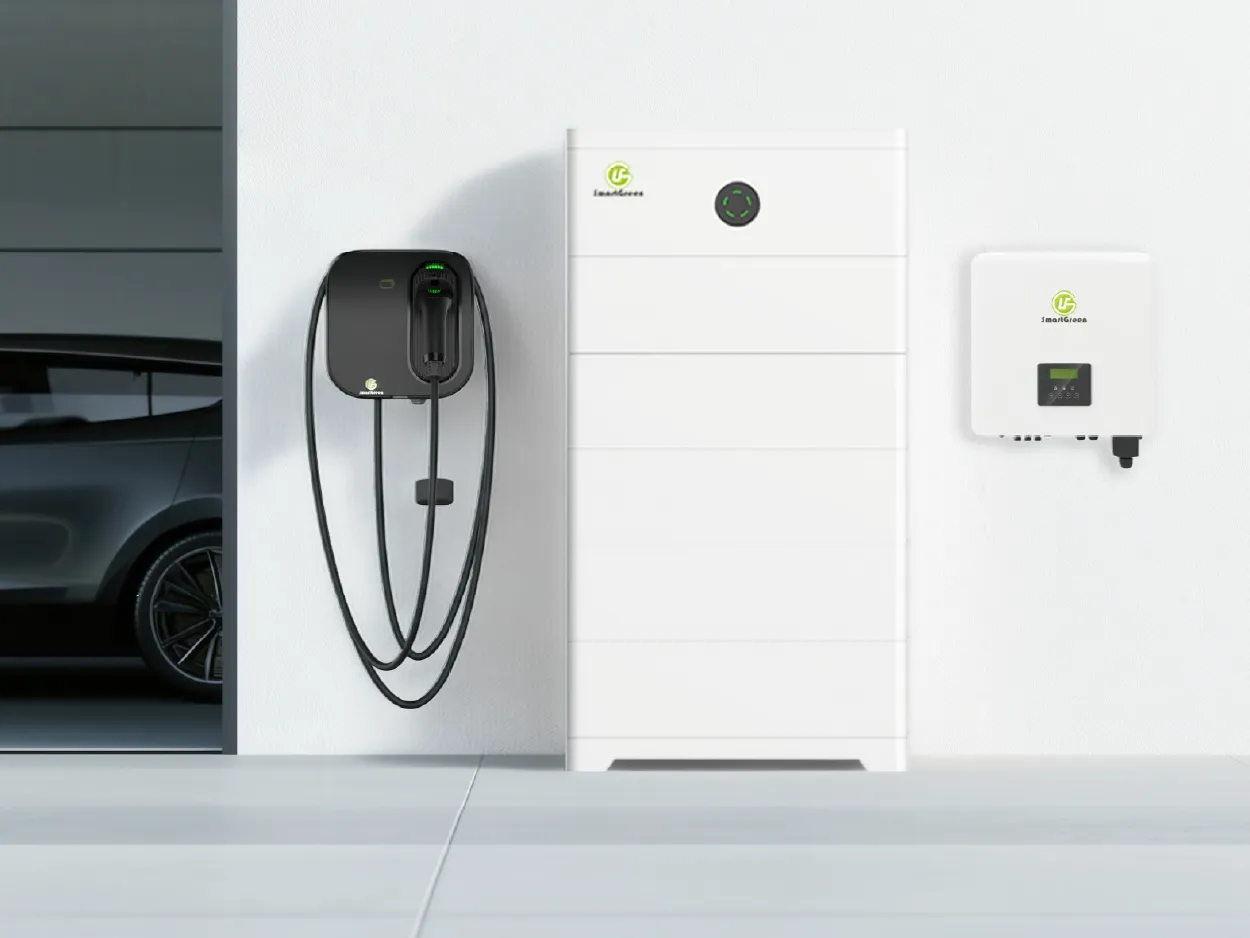

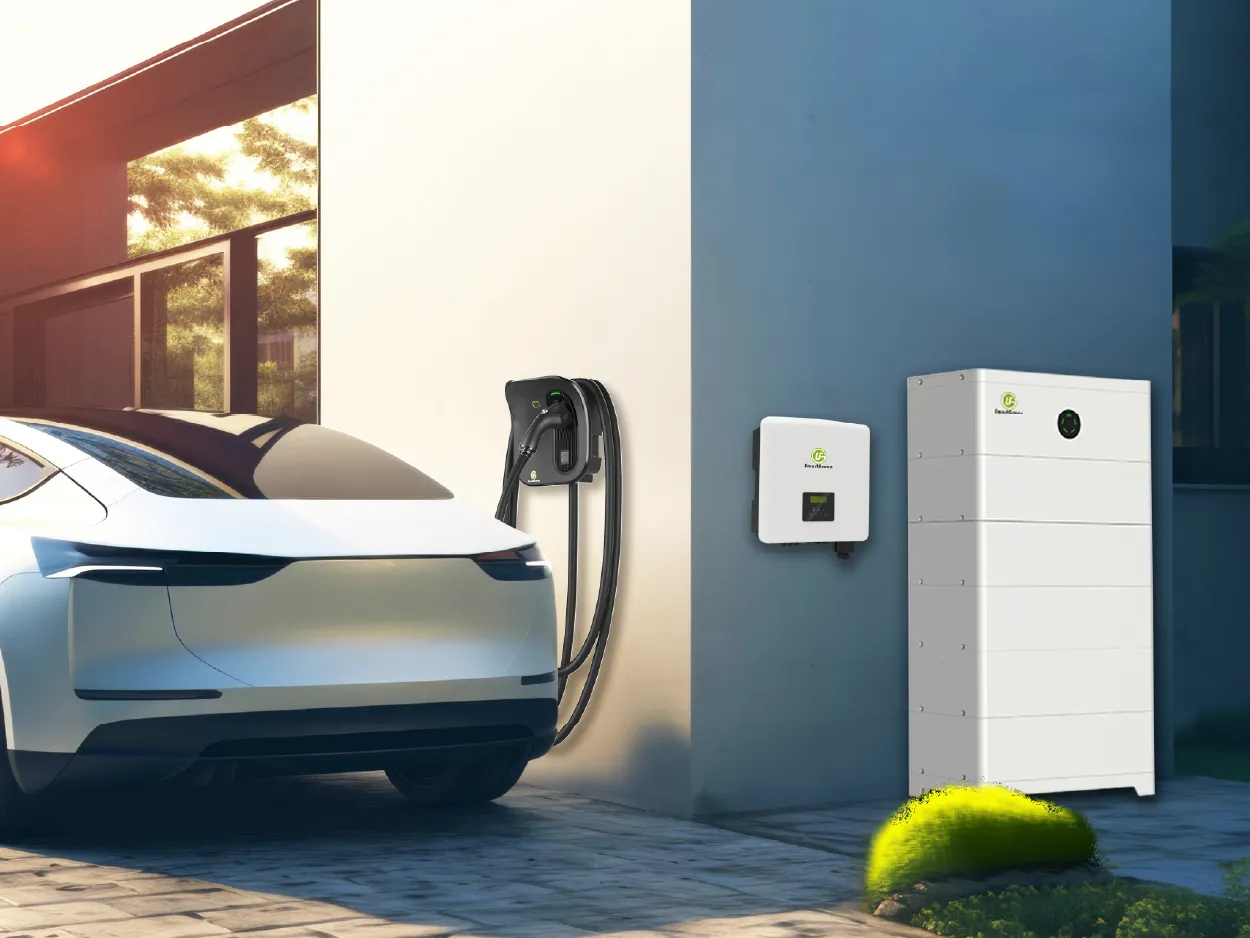

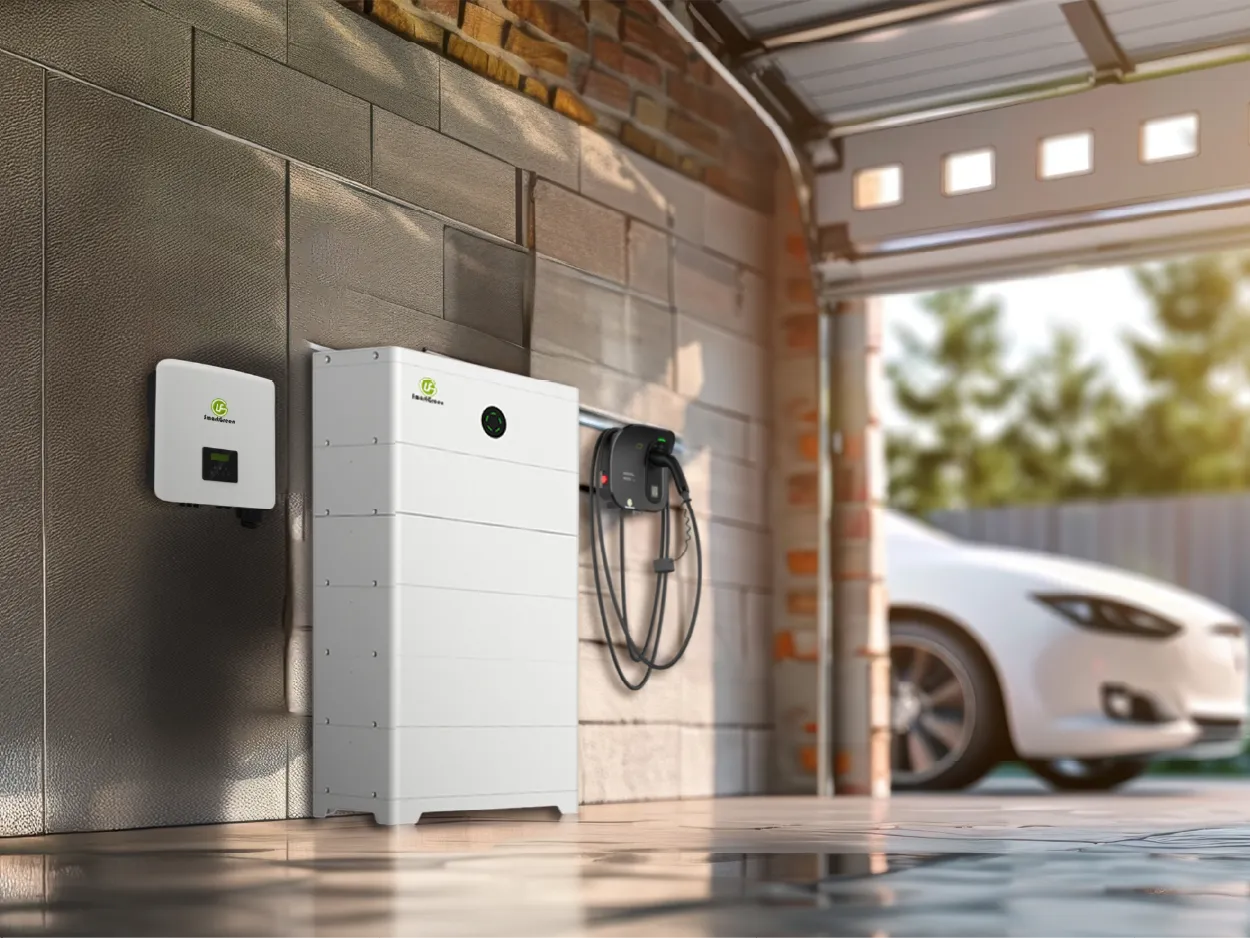

Applicable Locations
