Solar / Hybrid Inverter
Hybrid Inverter
Europe(EU), Taiwan(TW), Canada(CA)

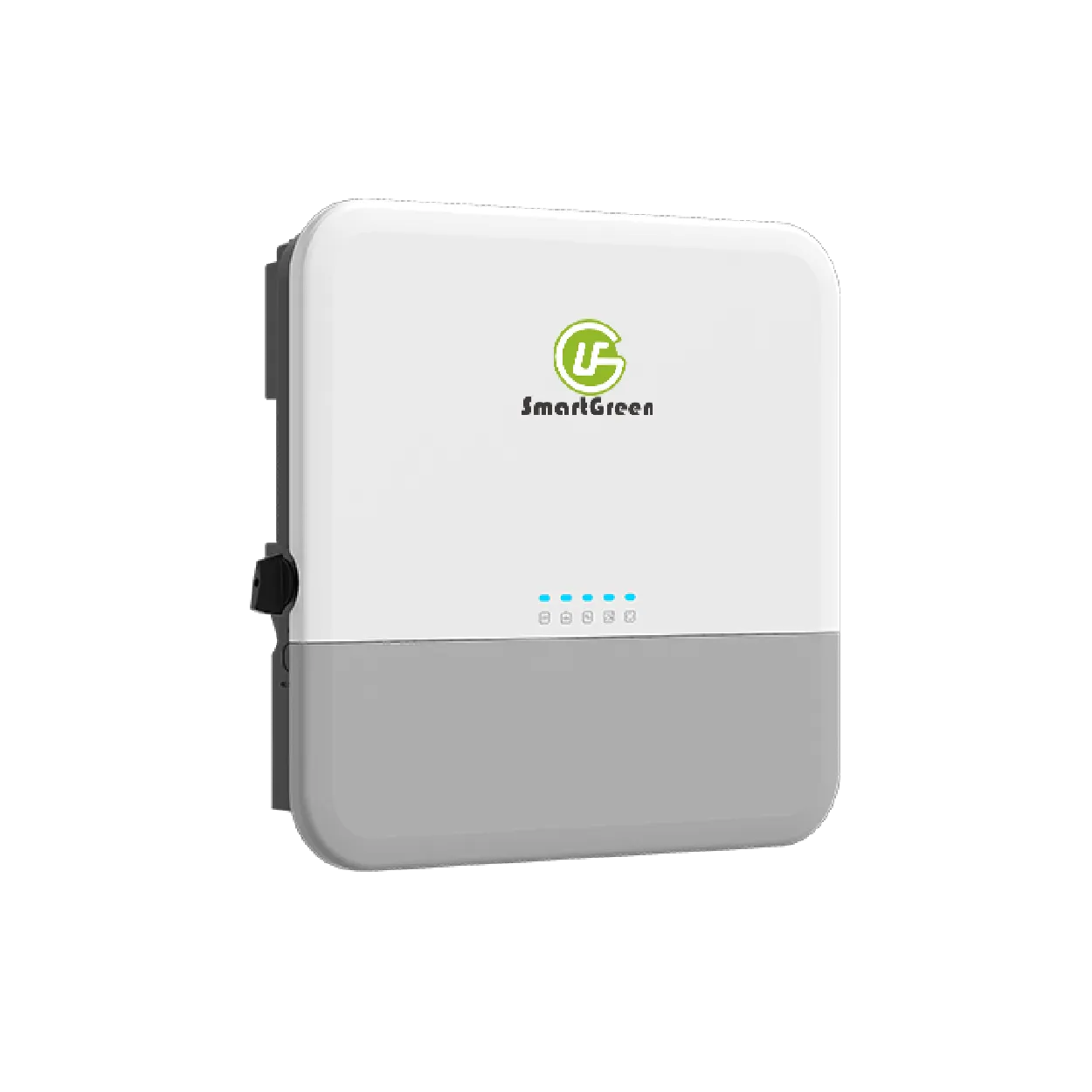

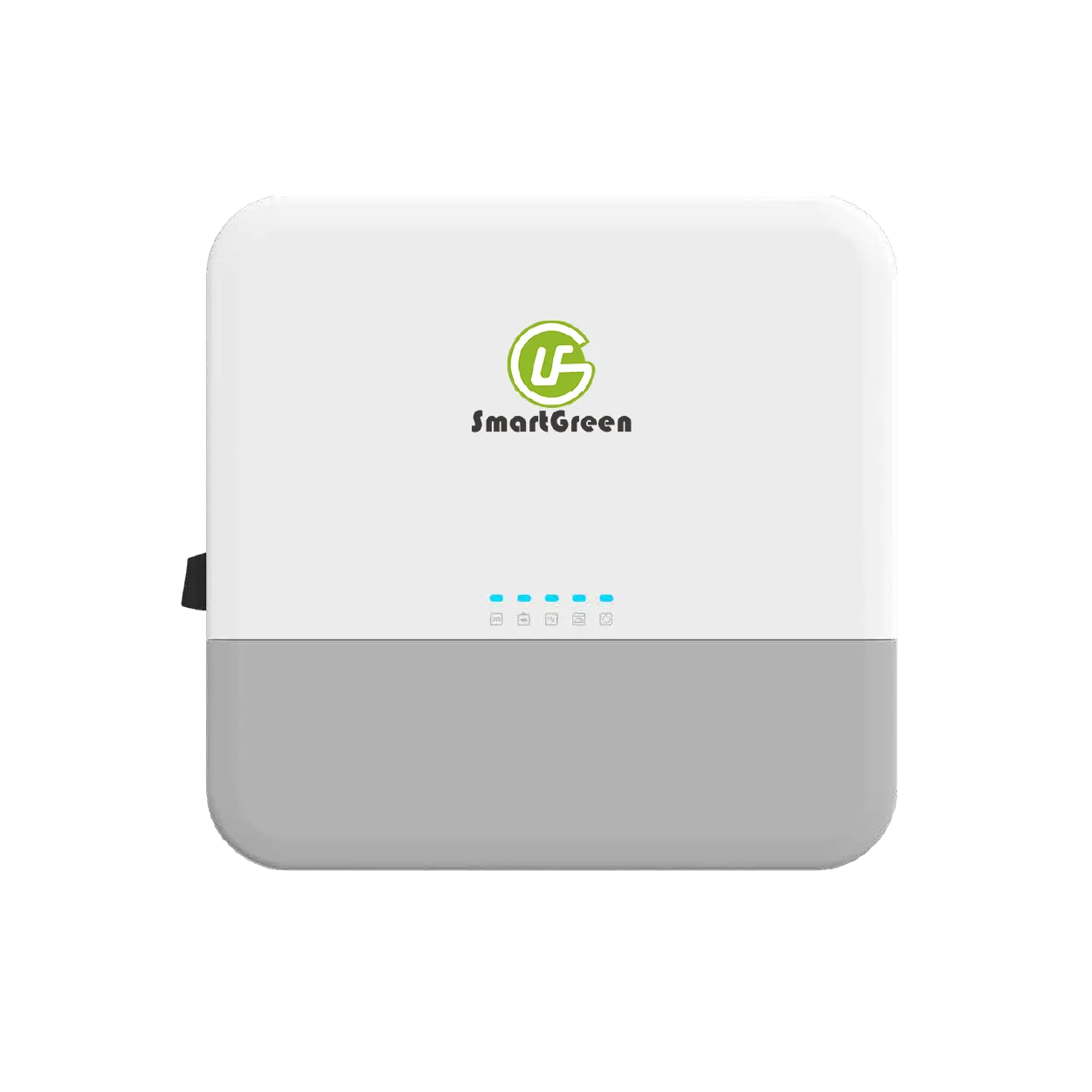

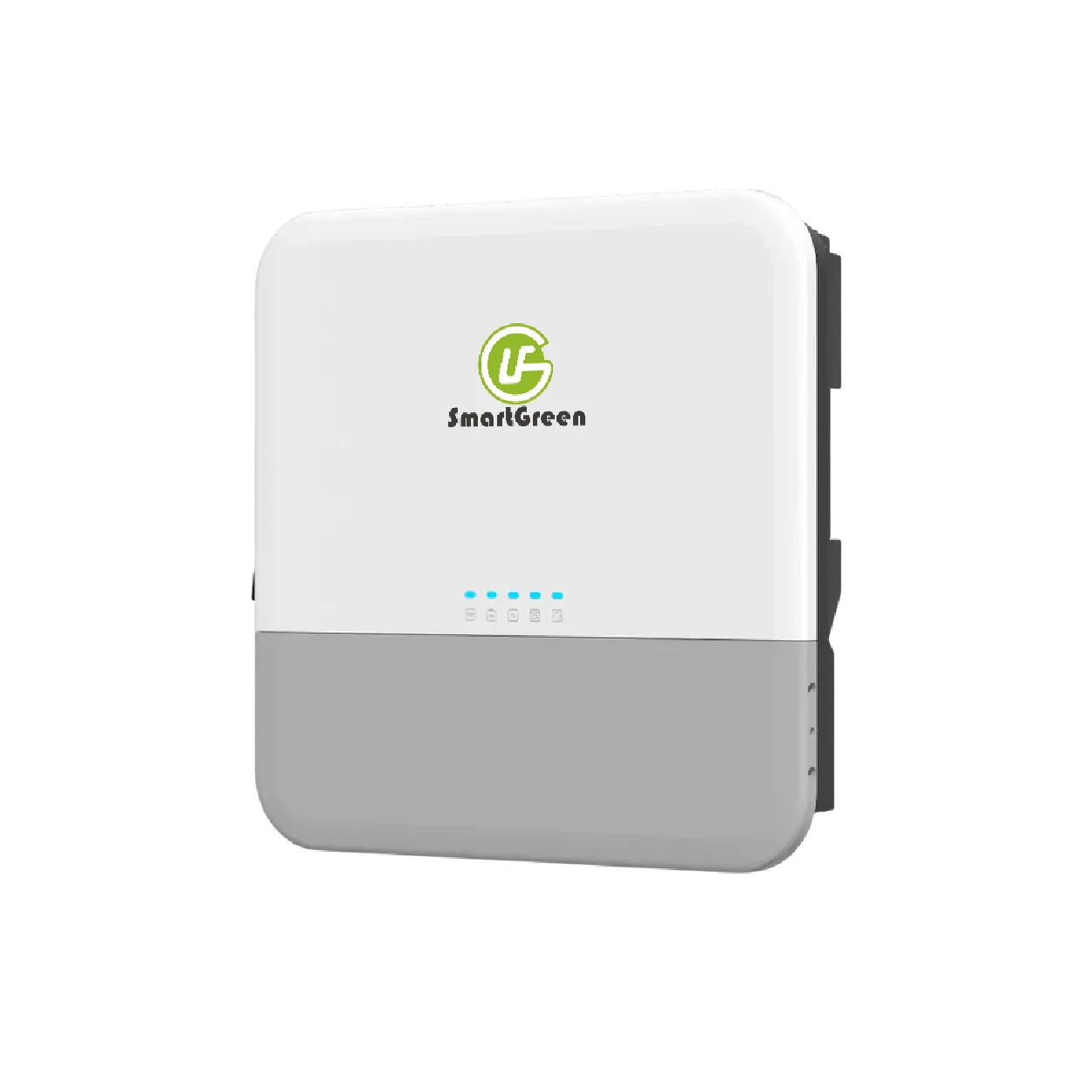

Appearance
- Dimensions(WxHxD): 506 x 495 x 99 mm
- Weight: about 17 kg
Battery port
- Max. charging/discharging power: 4600 W / 4850 W；6000 W / 6300 W
- Battery voltage range: 40~60 V
- Max. charging/discharging current:115 A / 115 A；135 A / 135 A
- Max. efficiency: 97.7%
PV port
- Max. efficiency / Max. input voltage: 360 V / 550 V
- MPPT voltage range: 90~500 V
- Max. input current: 18 / 18 A
- MPPT number/Max. input strings number: 2 / 2
Communication Interface
- interface: LED, App
- Communication: RS485, Wi-Fi / Ethernet (optional)
Mechanical
- Protection degree: IP66
- Cooling:Natural convection
- Mounting:Wall mounted
Compliance
- Safety: G98, G99, G100, EN 50549-1/-10, NF EN 50549-1/-10, CEI 0-21, PEA, MEA, IEC 62116, IEC 61727, IEC 60068, IEC 61683, DEWA
- EMC: IEC 62109-1/-2, EN 61000-6-1/-2/-3/-4
Product Highlights
Lightweight & Easy to Install: Ultra-thin, lightweight design for simple installation and space savings.
Efficient Output: Dual MPPT tracking supports up to 18A current input, with UPS-grade 0ms switching for uninterrupted power supply.
Smart Expansion: Supports multiple intelligent operating modes, including peak shaving/valley filling and 8×24-hour time-of-use scheduling; integrates AI energy management compatible with generators, heat pumps, and smart loads, with up to 10 units parallel-expandable for on/off-grid systems.

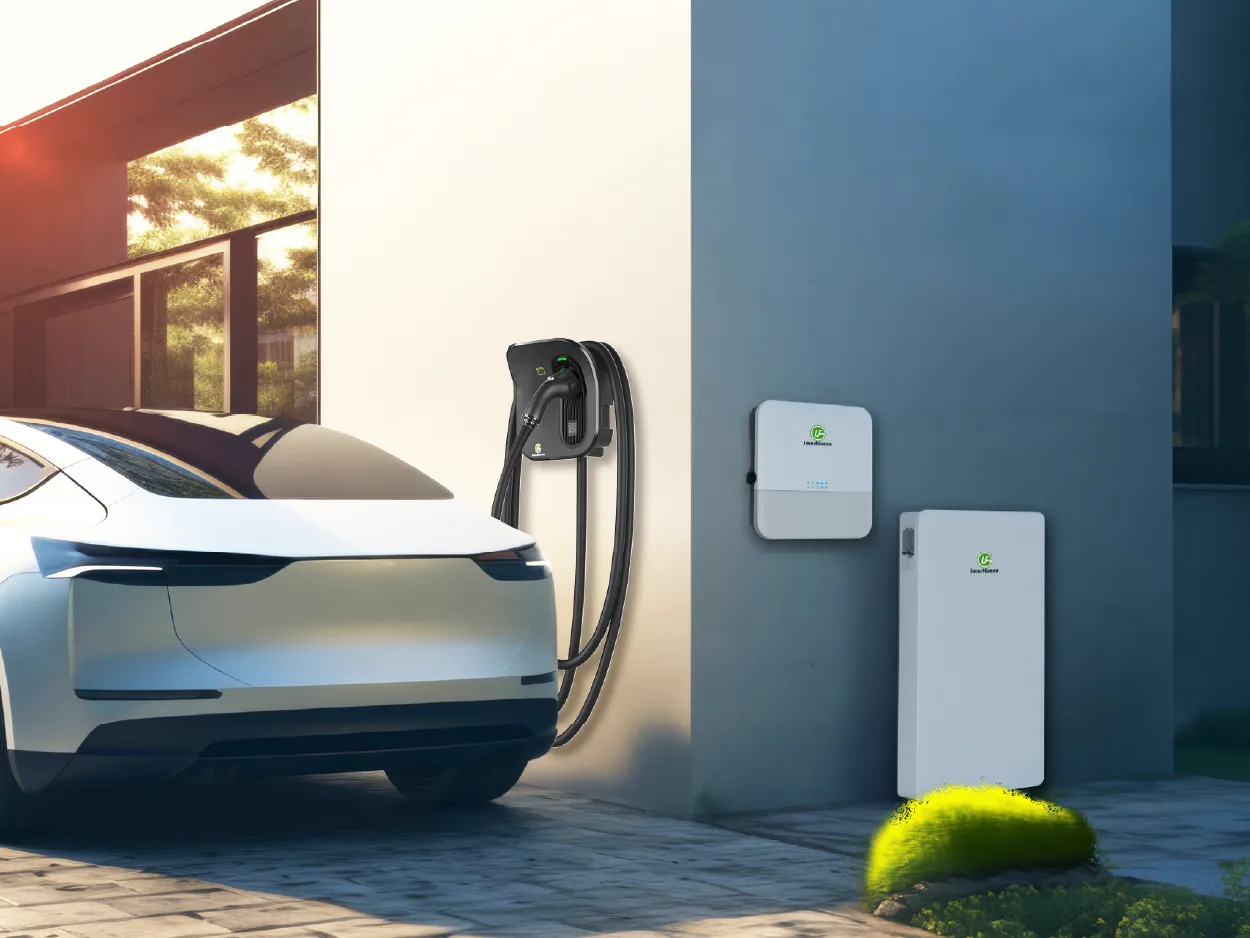

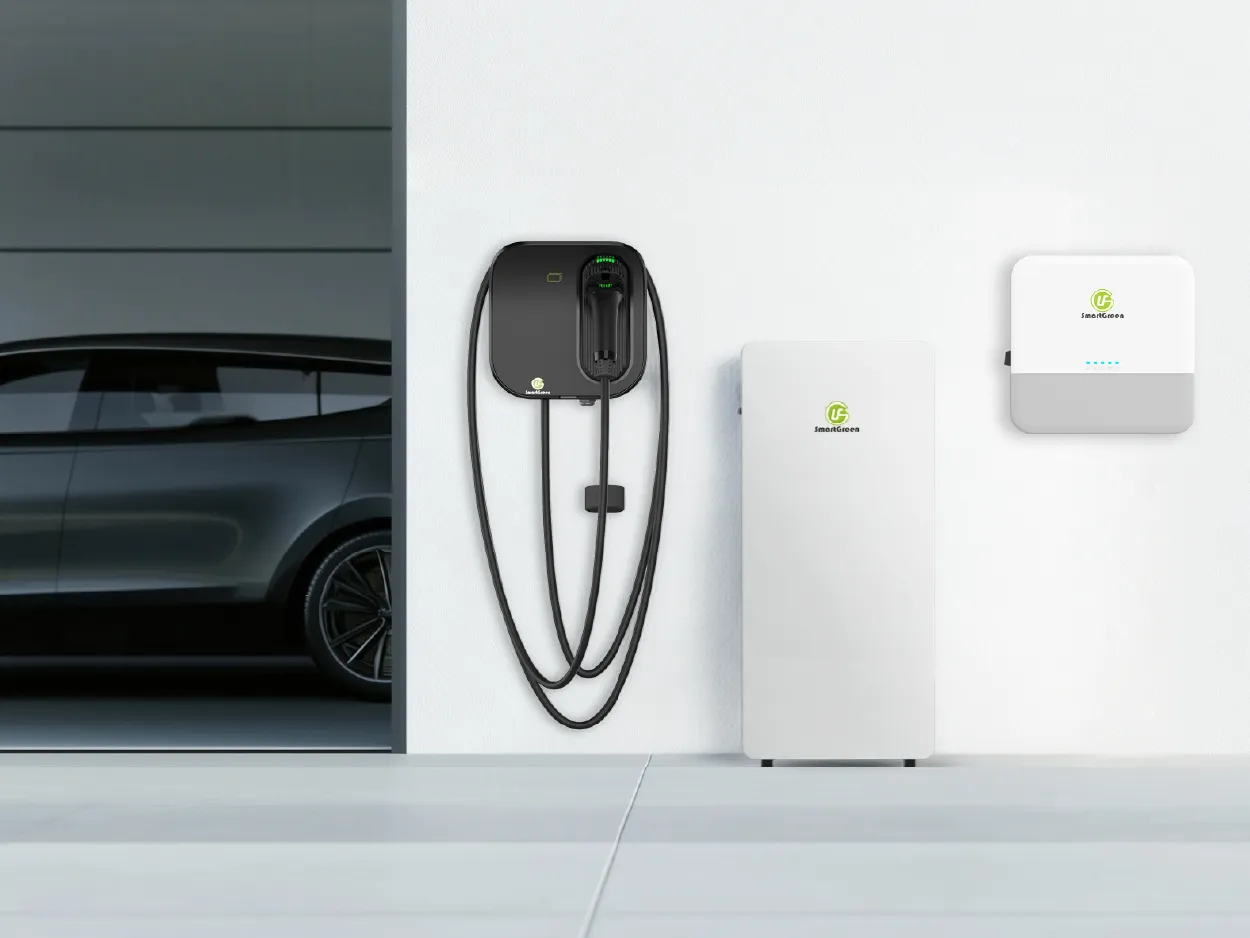

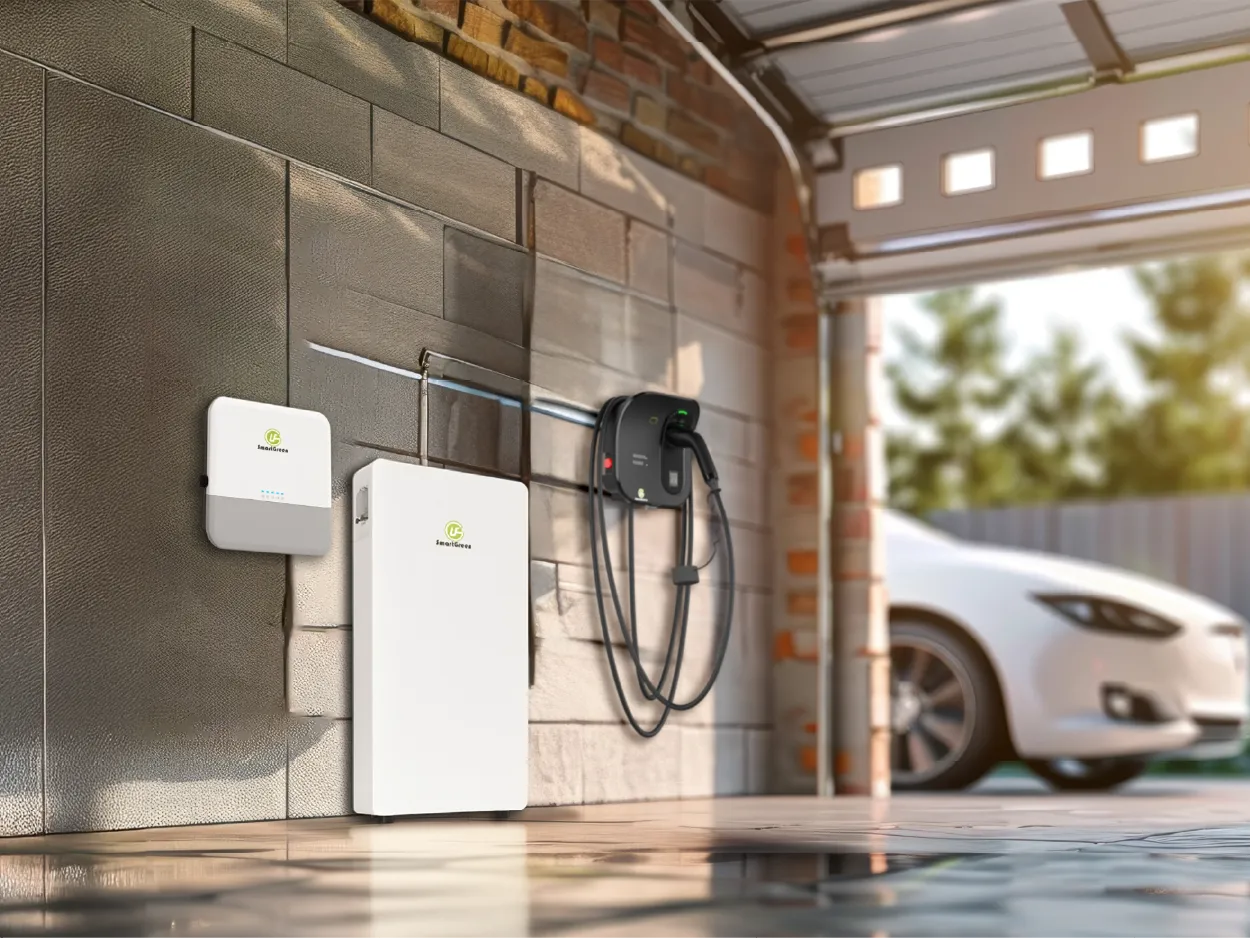

Applicable Locations
